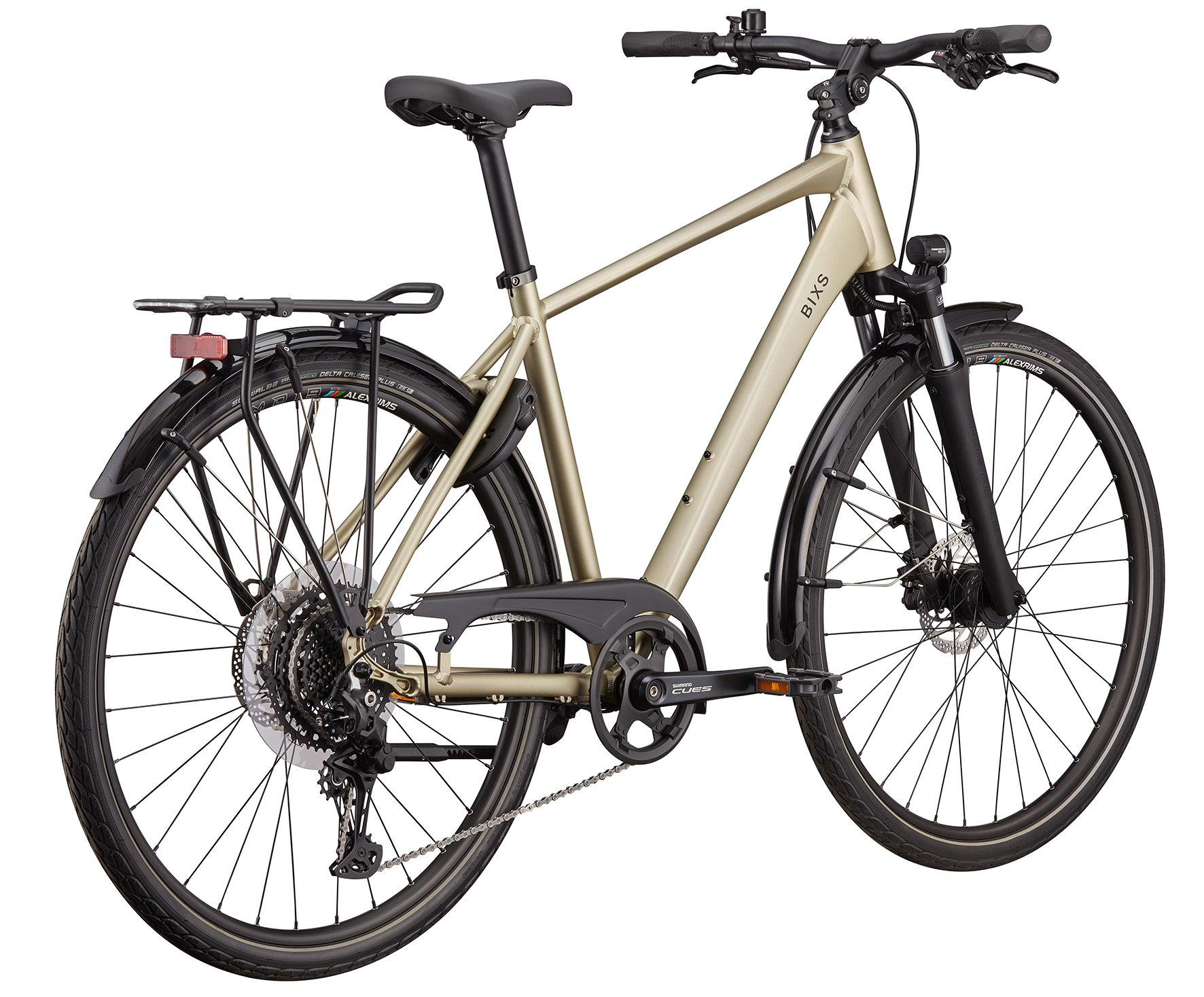

Spezifikationen Campus 3
| Rahmen | CAMPUS PREMIUM ALLOY HARDTAIL, 5X135MM |
| Gabel | SUNTOUR SF15-NEX COIL, 63MM TRAVEL, 5X100MM |
| Schaltwerk | SHIMANO CUES RD-U6000, 10-SPEED |
| Schalthebel | SHIMANO CUES SL-U6000-10R |
| Kurbelgarnitur | SHIMANO CUES FC-U4000-1, CL50, 40T |
| Kassette | SHIMANO CUES CS-LG400-10, 11-48T |
| Kette | SHIMANO CUES CN-LG500 |
| Bremsen | SHIMANO BL-MT201, BR-MT200 2-PISTON |
| Bremsscheiben | SHIMANO SM-RT30, CENTER LOCK, 160/160MM |
| Felgen | ALEXRIMS SD20, 20MM INNER WIDTH |
| Nabe vorne | SHIMANO DH-3D37-QR DYNAMO HUB, 32 HOLES |
| Nabe hinten | SHIMANO FH-QC300-HM, 32 HOLES |
| Vorderreifen | SCHWALBE DELTA CRUISER PLUS, 700X47C, PUNCTURE GUARD |
| Hinterreifen | SCHWALBE DELTA CRUISER PLUS, 700X47C, PUNCTURE GUARD |
| Vorbau | BIXS STEM, ANGLE ADJUSTABLE, 31.8MM CLAMP |
| Lenker | BIXS RIZER BAR, 15MM RISE, 680MM |
| Sattelstütze | BIXS SEATPOST, Ø31.6MM, M & L : 350MM, XL: 400MM |
| Sattel | BIXS VL-4479 |
| Scheinwerfer | TRELOCK LS-383 VEO, 50 LUX, STANDLIGHT AUTOMATIC |
| Rücklicht | BUSCH & MUELLER LED, STANDLIGHT AUTOMATIC |
| Gepäckträger | RACKTIME SHINE EVO, SNAP-IT SYSTEM |
| Schutzbleche | BIXS EX-CP55-AB, 55MM WIDE |
| Gewicht | 17.8 KG |
Geometrie
| M | L | XL | ||
| A | Reach | 373 | 389 | 405 |
| B | Stack | 643 | 657 | 671 |
| C | Top Tube | 570 | 590 | 610 |
| D | Seat Tube | 480 | 520 | 560 |
| E | Head Tube | 155 | 170 | 185 |
| F | Fork Length | 477 | 477 | 477 |
| G | Fork Offset | 42 | 42 | 42 |
| H | Chainstay | 460 | 460 | 460 |
| I | Seat Angle | 73 | 73 | 73 |
| J | Head Tube Angle | 70 | 70 | 70 |
| K | BB Drop | 63 | 63 | 63 |
| L | BB Height | 300 | 300 | 300 |
| M | Wheelbase | 1085 | 1105 | 1126 |
| Stem Length | 90 | 90 | 100 | |
| Crank Length | 170 | 175 | 175 |
