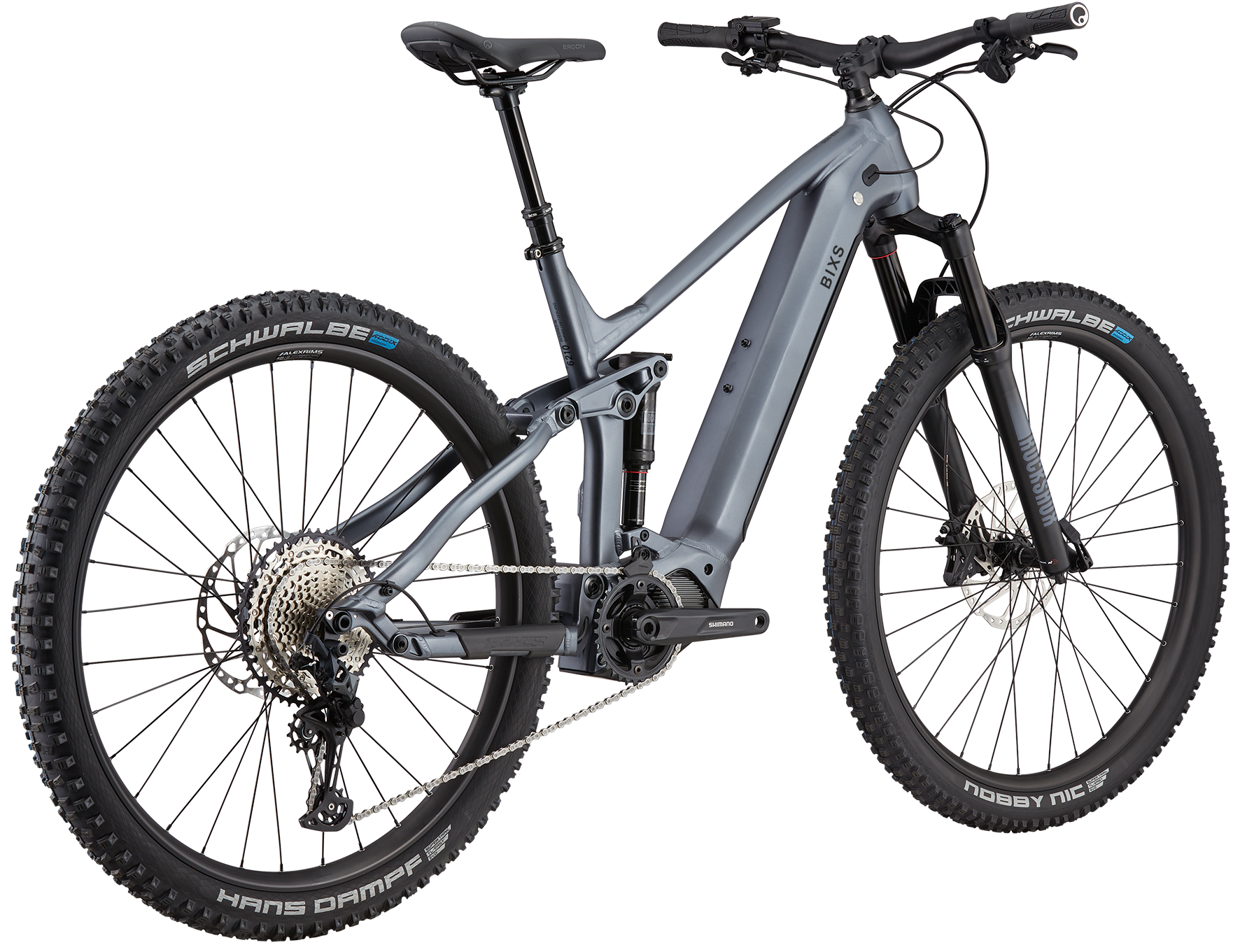

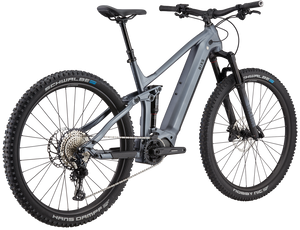

Spezifikationen Sign-E23

Rahmen E-TRAIL GEOMETRY, ALLOY 6061, 130mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"
Gabel ROCK SHOX 35 GOLD RL DEBONAIR 29", 15x110mm AXLE, TAPERED, 130mm TRAVEL, REBOUND, COMP.TO LOCK
Motor SHIMANO STEPS EP8, 250 WATT
Batterien DARFON, 36V, 630Wh
Display SHIMANO SC-E5003
Unterstützungsstufen ECO, TRAIL, BOOST
E-Bike Speed 25 km/h
Dämpfer ROCK SHOX DELUX SELECT R, LEVER, DEBON AIR, 205x60, TRUNNION MOUNT, HARDWARE: 30mmx8mm
Schaltwerk SHIMANO SLX RD-M7100 SGS SHADOW PLUS DESIGN, 12-SPEED
Schalthebel SHIMANO SLX SL-M7100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Kurbelgarnitur SHIMANO FC-EM600, 34 TEETH
Kassette SHIMANO CS-M7100, 10-51 THEETH, 12-SPEED
Kette SHIMANO CN-M7100 12-Speed
Bremsen SHIMANO BR-M6120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS
Bremshebel SHIMANO BL-M6100, ISPEC EV
Felgen ALEXRIMS EM-35, 32 HOLES, INNER WIDTH 35mm, 29"
Nabe vorne SHIMANO HB-TC500-15-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Nabe hinten SHIMANO FH-TC600-MS-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Vorderreifen SCHWALBE NOBBY NIC EVO SUPER TRAIL, ADDIX SPEEDGRIP, TL EASY, 29x2.6"
Hinterreifen SCHWALBE HANS DAMPF EVO SUPER TRAIL, ADDIX SPEEDGRIP, TL EASY, 29x2.6"
Vorbau BIXS 0°ANGLE, 35mm CLAMP
Lenker BIXS RIZER BAR, 780mm, 9° BACKSWEEP, 15mm RISE, 35mm
Steuersatz FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Sattelstütze KIND SHOCK RAGEi, S: 75mm, M: 100mm, L: 125mm, XL: 150mm TRAVEL, SHIMANO REMOTE LEVER, 30.9mm
Sattel ERGON SM10 E-MOUNTAIN SPORT MEN
Gewicht 24.9 KG

Geometrie

Grösse A B C D E F G H I J K L
S 406 590 135 470 74° 66° 1196 40 633 408 340 165
M 445 595 140 470 74° 66° 1202 50 638 413 340 165
L 480 615 145 470 74° 66° 1223 60 643 431 340 165
XL 530 635 150 470 74° 66° 1243 70 648 450 340 165

A Rahmengrösse
B Oberrohr horizontal mm
C Steuerrohr mm
D Kettenstreben mm
E Sitzwinkel Grad
F Radstand mm
G Radstand mm
H Vorbau mm
I Stack mm
J Reach mm
K Tretlagerhöhe mm
L Kurbellänge mm
