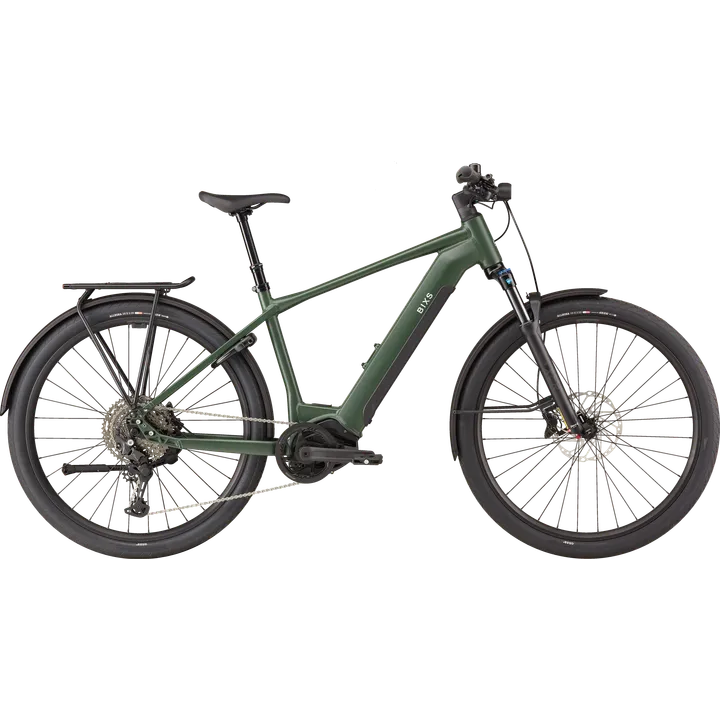

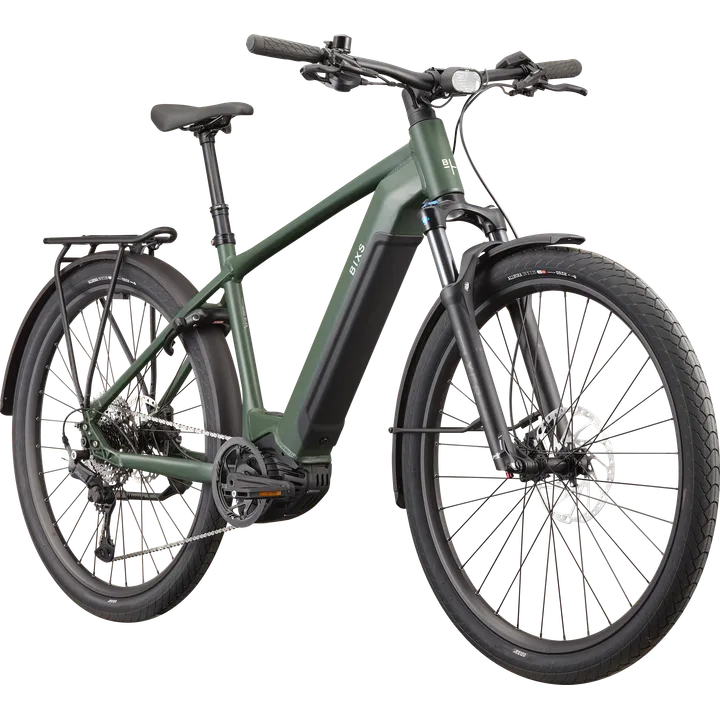

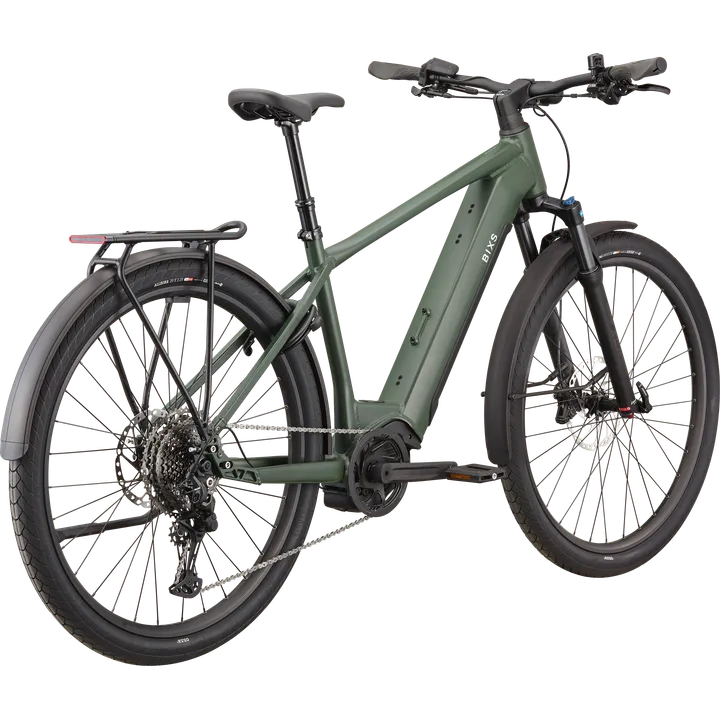

Everything you need to know about the Access-E10.
Fully equipped, for any terrain.
A bike that handles everything in everyday life must be just as safe going downhill as it is fast going uphill. The Access-E10 combines the Bosch Performance CX Smart with 85 Newton-meters of torque and a 625-watt-hour battery. The Suntour XCR34 Air fork with 100 mm of travel smooths out cobblestones and forest trails, while the four-piston brakes with 203 mm rotors up front bring you to a stop even when fully loaded. Shifting is handled by a Shimano CUES groupset with 1x11 speeds. Lights, fenders, and a rack are factory-installed. It’s the fully equipped bike for routes that change surfaces along the way.
Article number | 101-506-4143 |
|---|---|
Frame sizes | S M L XL |
Frame | ACCESS-E PREMIUM ALLOY HARDTAIL, 12x148 mm |
Fork | SUNTOUR SF23-XCR34 AIR DS, 100mm TRAVEL, 15x110mm |
Engine | BOSCH PERFORMANCE CX SMART 85Nm |
Batteries | BOSCH POWERTUBE, RANGE EXTENDER CAPABLE |
Size | ||||
|---|---|---|---|---|
S | M | L | XL | |
A - Reach | 444 mm | 455 mm | 465 mm | 475 mm |
B - Stack | 635 mm | 640 mm | 644 mm | 653 mm |
C - Top-tube-length | 616 mm | 628 mm | 640 mm | 652 mm |
D - Seat-tube-length | 380 mm | 430 mm | 480 mm | 530 mm |
E - Head-tube-length | 130 mm | 135 mm | 140 mm | 150 mm |
F - Fork-installation-length | 521 mm | 521 mm | 521 mm | 521 mm |
G - Fork-Offset | 51 mm | 51 mm | 51 mm | 51 mm |
H - Chainstay-length | 480 mm | 480 mm | 480 mm | 480 mm |
I - Seat Angle | 74 ° | 74 ° | 74 ° | 74 ° |
J - Head-tube-angle | 66 ° | 66 ° | 66 ° | 66 ° |
K - Bottom-bracket-drop | 61 mm | 61 mm | 61 mm | 61 mm |
L - Bottom-bracket-height | 311 mm | 311 mm | 311 mm | 311 mm |
M - Wheelbase | 1232 cm | 1245 cm | 1257 cm | 1271 cm |
