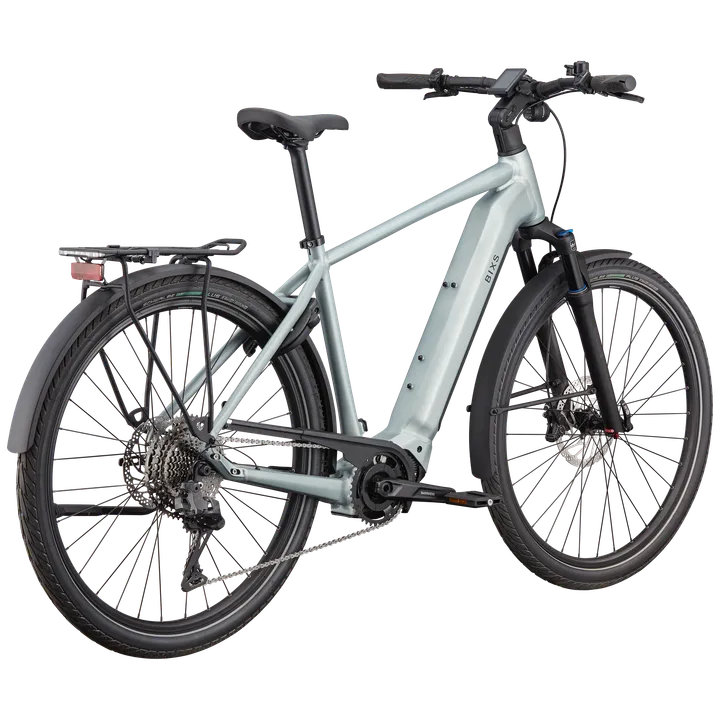

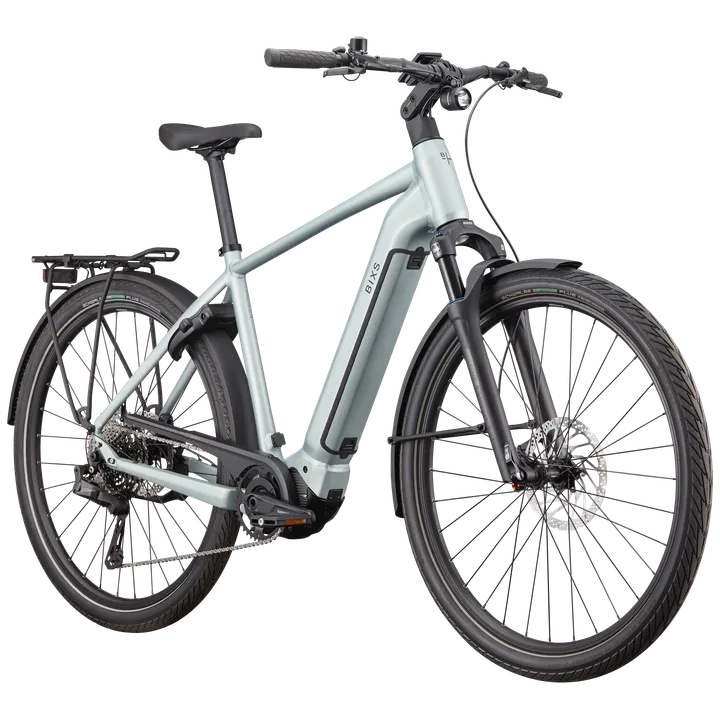

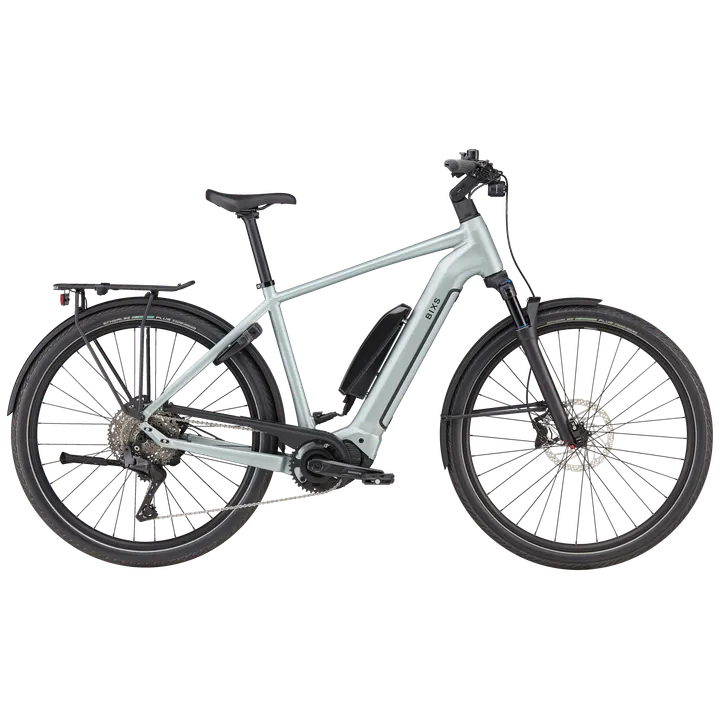

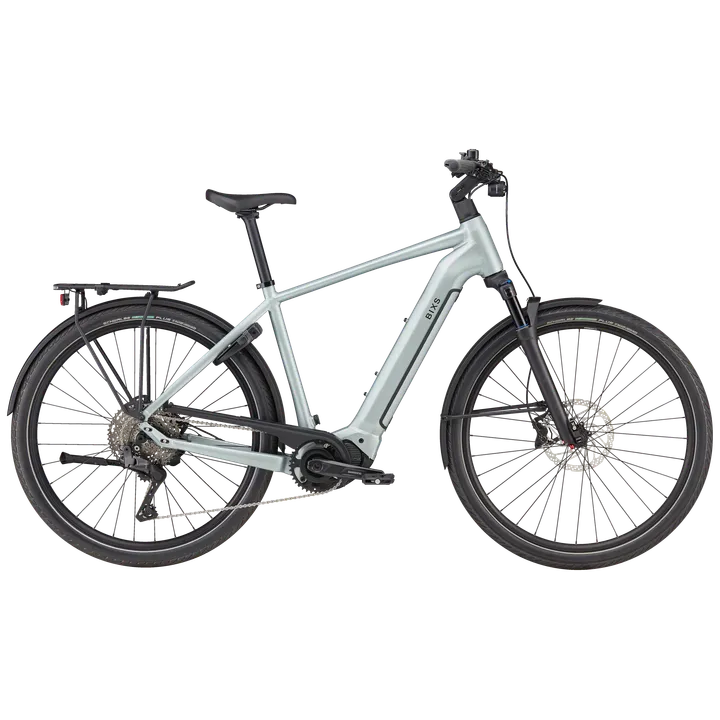

Everything you need to know about the Campus-E10.
Switch automatically, with full bandwidth.
Automatic shifting with a chain is rare. The Campus-E10 combines a Shimano CUES Di2 derailleur with 1x11 speeds and Auto Shift, which combines a wide gear range with the convenience of automatic shifting. The Shimano EP801 motor with a 600-watt-hour battery handles even long commutes. Lights, fenders, and a rack are factory-installed. The Campus-E10 is available up to frame size XXL. The Schwalbe Energizer Plus tires in 700x55C roll smoothly and are designed for puncture protection. It’s a bike that’s ready to go every day.
Article number | 101-506-4151 |
|---|---|
Frame sizes | M L XL XXL |
Frame | CAMPUS-E PREMIUM ALLOY HARDTAIL, 12x142 mm |
Fork | SUNTOUR SF21-MOBBIE34 AIR DS, 80mm TRAVEL, 15x100mm |
Engine | SHIMANO EP801 85Nm |
Batteries | DARFON, RANGE EXTENDER CAPABLE |
Size | ||||
|---|---|---|---|---|
M | L | XL | 2XL | |
A - Reach | 400 mm | 418 mm | 432 mm | 447 mm |
B - Stack | 662 mm | 671 mm | 690 mm | 708 mm |
C - Top-tube-length | 590 mm | 610 mm | 630 mm | 650 mm |
D - Seat-tube-length | 480 mm | 520 mm | 560 mm | 600 mm |
E - Head-tube-length | 150 mm | 160 mm | 180 mm | 200 mm |
F - Fork-installation-length | 499 mm | 499 mm | 499 mm | 499 mm |
G - Fork-Offset | 44 mm | 44 mm | 44 mm | 44 mm |
H - Chainstay-length | 480 mm | 480 mm | 480 mm | 480 mm |
I - Seat Angle | 74 ° | 74 ° | 74 ° | 74 ° |
J - Head-tube-angle | 69 ° | 69 ° | 69 ° | 69 ° |
K - Bottom-bracket-drop | 72 mm | 72 mm | 72 mm | 72 mm |
L - Bottom-bracket-height | 300 mm | 300 mm | 300 mm | 300 mm |
M - Wheelbase | 1148 cm | 1169 cm | 1191 cm | 1213 cm |
