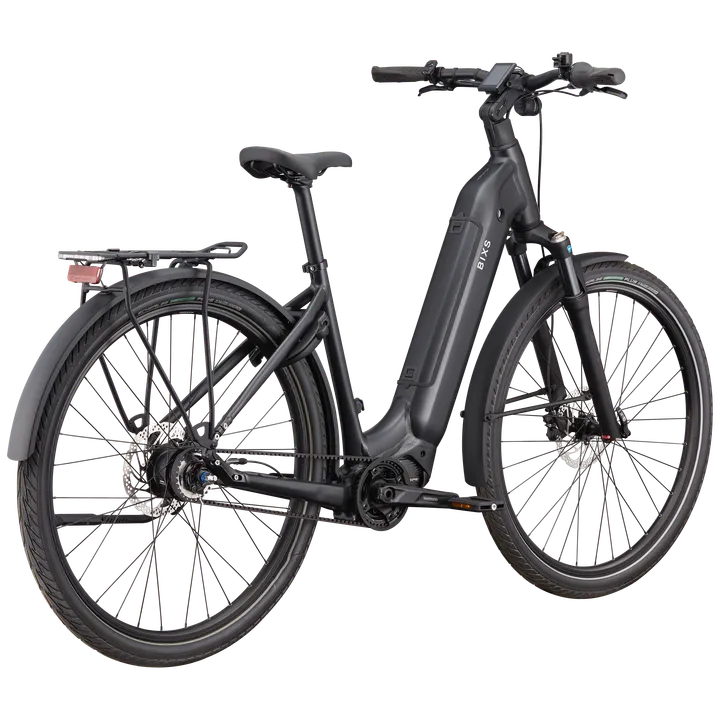

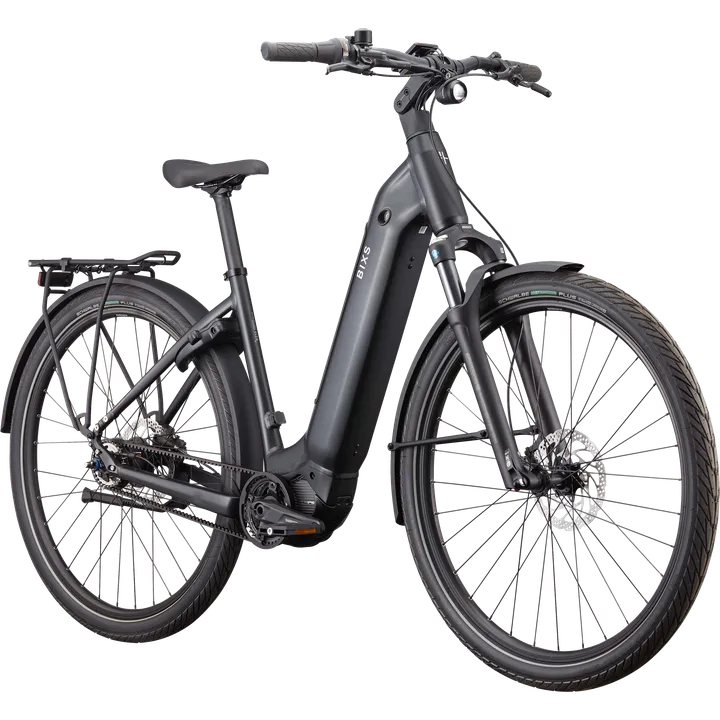

Everything you need to know about the Campus-E20 DI.
A belt that doesn't stain.
The frame with the lowest step-through in the lineup is paired here with the low-maintenance drivetrain. The Campus-E20 Di combines the deep-instep frame with a Gates Carbon Drive and a five-speed Shimano Nexus hub gear: no oil, no stains, and shifting even when stationary. The Shimano EP801 motor with a 600-watt-hour battery covers long commutes. Lights, fenders, and a rack are factory-installed. It’s designed for anyone who values easy mounting and a low-maintenance drivetrain above all else.
Article number | 101-506-4156 |
|---|---|
Frame sizes | S M L |
Frame | CAMPUS-E PREMIUM ALLOY HARDTAIL, 10x135 mm |
Fork | SUNTOUR SF21-MOBBIE34-D AIR DS, 80mm TRAVEL, 15x100mm |
Engine | SHIMANO EP801 85Nm |
Batteries | DARFON |
Size | |||
|---|---|---|---|
S | M | L | |
A - Reach | 371 mm | 381 mm | 391 mm |
B - Stack | 685 mm | 685 mm | 685 mm |
C - Top-tube-length | 580 mm | 590 mm | 600 mm |
D - Seat-tube-length | 440 mm | 480 mm | 520 mm |
E - Head-tube-length | 180 mm | 180 mm | 180 mm |
F - Fork-installation-length | 499 mm | 499 mm | 499 mm |
G - Fork-Offset | 44 mm | 44 mm | 44 mm |
H - Chainstay-length | 480 mm | 480 mm | 480 mm |
I - Seat Angle | 73 ° | 73 ° | 73 ° |
J - Head-tube-angle | 68 ° | 68 ° | 68 ° |
K - Bottom-bracket-drop | 72 mm | 72 mm | 72 mm |
L - Bottom-bracket-height | 300 mm | 300 mm | 300 mm |
M - Wheelbase | 1140 cm | 1150 cm | 1160 cm |
