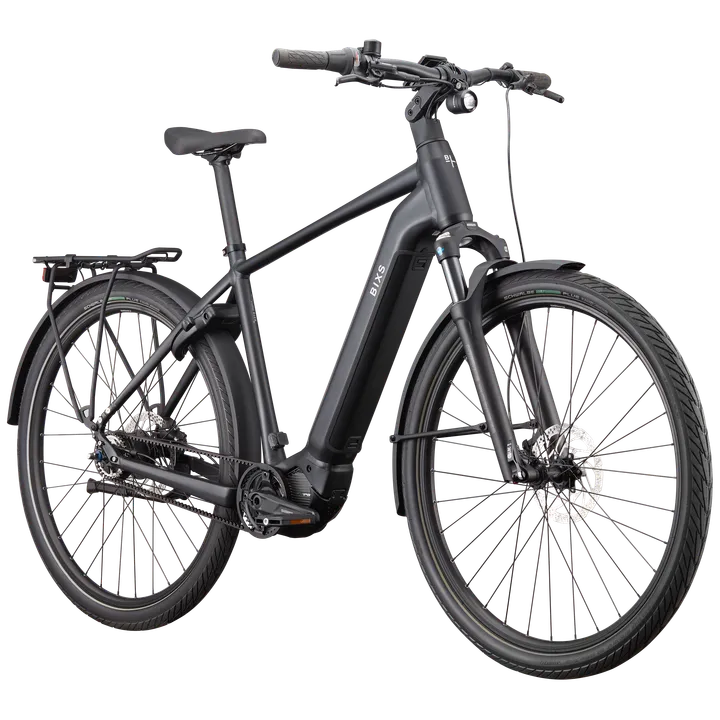

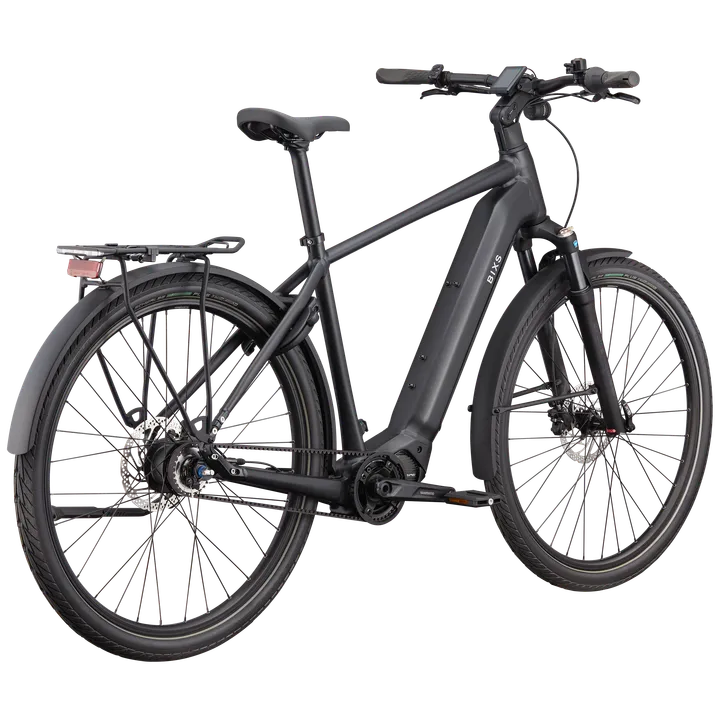

Everything you need to know about the Campus-E20.
A belt that doesn't stain.
A belt doesn’t leave stains. The Campus-E20 combines a Shimano Nexus five-speed hub gear with a Gates Carbon Drive—a drivetrain that requires no oiling, won’t ruin your pant legs, and allows you to shift gears even while stopped at a traffic light. The Shimano EP801 motor with a 600-watt-hour battery covers long commutes. Lights, fenders, and a rack are factory-installed. It’s designed for anyone who commutes daily and wants a bike that needs nothing but air and the occasional set of brake pads.
Article number | 101-506-4154 |
|---|---|
Frame sizes | M L XL |
Frame | CAMPUS-E PREMIUM ALLOY HARDTAIL, 10x135 mm |
Fork | SUNTOUR SF21-MOBBIE34-D AIR DS, 80mm TRAVEL, 15x100mm |
Engine | SHIMANO EP801 85Nm |
Batteries | DARFON, RANGE EXTENDER CAPABLE |
Size | |||
|---|---|---|---|
M | L | XL | |
A - Reach | 400 mm | 418 mm | 432 mm |
B - Stack | 662 mm | 671 mm | 690 mm |
C - Top-tube-length | 590 mm | 610 mm | 630 mm |
D - Seat-tube-length | 480 mm | 520 mm | 560 mm |
E - Head-tube-length | 150 mm | 160 mm | 180 mm |
F - Fork-installation-length | 499 mm | 499 mm | 499 mm |
G - Fork-Offset | 44 mm | 44 mm | 44 mm |
H - Chainstay-length | 480 mm | 480 mm | 480 mm |
I - Seat Angle | 74 ° | 74 ° | 74 ° |
J - Head-tube-angle | 69 ° | 69 ° | 69 ° |
K - Bottom-bracket-drop | 72 mm | 72 mm | 72 mm |
L - Bottom-bracket-height | 300 mm | 300 mm | 300 mm |
M - Wheelbase | 1148 cm | 1169 cm | 1191 cm |
