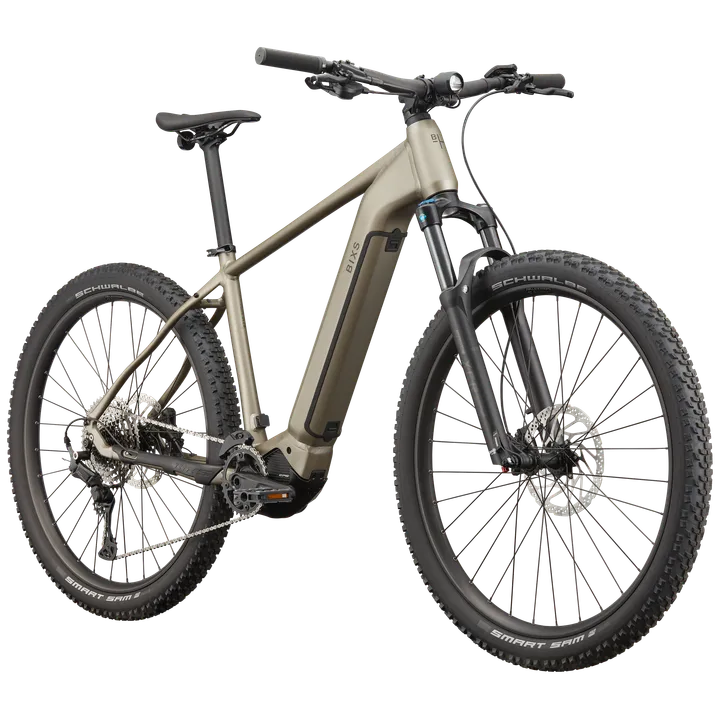

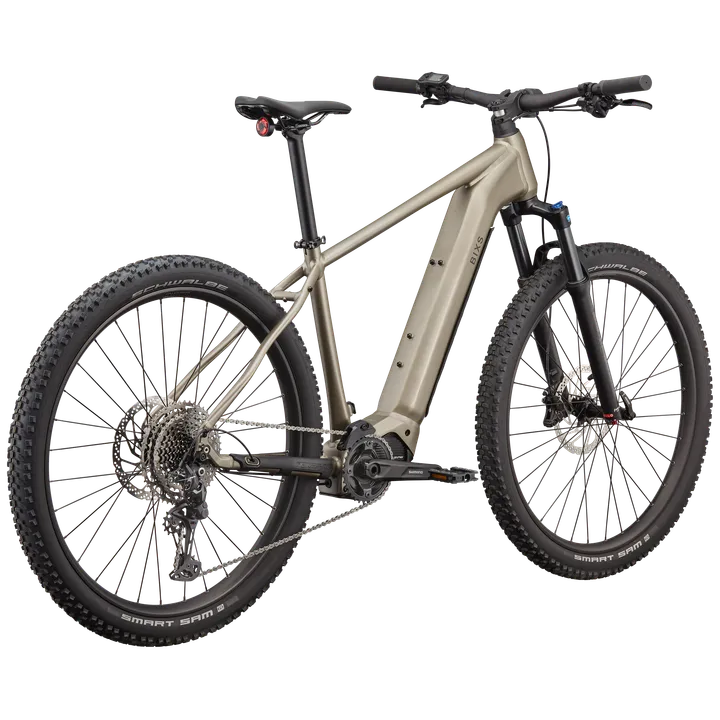

Everything you need to know about the Core E22.
Just drive, without any operating logic.
Sometimes you just want to ride. The Core-E22 is the no-frills model in the Core-E family, featuring mechanical Shimano CUES shifting and 1x11 gears, with no battery integrated into the drivetrain and no control logic to learn. The Shimano EP600 motor with 85 Newton-meters and the 600-watt-hour battery handle long rides, while the Suntour XCR34 Air fork with 120 mm of travel smooths out forest trails and gravel. The Schwalbe Smart Sam tires with K-Guard are designed for puncture protection. It’s built to be rugged and designed for everyday use.
Article number | 101-506-4126 |
|---|---|
Frame sizes | S M L XL |
Frame | CORE-E PREMIUM ALLOY HARDTAIL, 12x148 mm |
Fork | SUNTOUR SF23-XCR34 DS AIR, 120mm TRAVEL, 15x110mm |
Engine | SHIMANO EP600 85Nm |
Batteries | DARFON, RANGE EXTENDER CAPABLE |
Size | ||||
|---|---|---|---|---|
S | M | L | XL | |
A - Reach | 400 mm | 419 mm | 438 mm | 457 mm |
B - Stack | 670 mm | 674 mm | 679 mm | 684 mm |
C - Top-tube-length | 580 mm | 600 mm | 620 mm | 640 mm |
D - Seat-tube-length | 380 mm | 430 mm | 480 mm | 530 mm |
E - Head-tube-length | 135 mm | 140 mm | 145 mm | 150 mm |
F - Fork-installation-length | 546 mm | 546 mm | 546 mm | 546 mm |
G - Fork-Offset | 51 mm | 51 mm | 51 mm | 51 mm |
H - Chainstay-length | 470 mm | 470 mm | 470 mm | 470 mm |
I - Seat Angle | 75 ° | 75 ° | 75 ° | 75 ° |
J - Head-tube-angle | 67 ° | 67 ° | 67 ° | 67 ° |
K - Bottom-bracket-drop | 63 mm | 63 mm | 63 mm | 63 mm |
L - Bottom-bracket-height | 315 mm | 315 mm | 315 mm | 315 mm |
M - Wheelbase | 1179 cm | 1200 cm | 1220 cm | 1241 cm |
