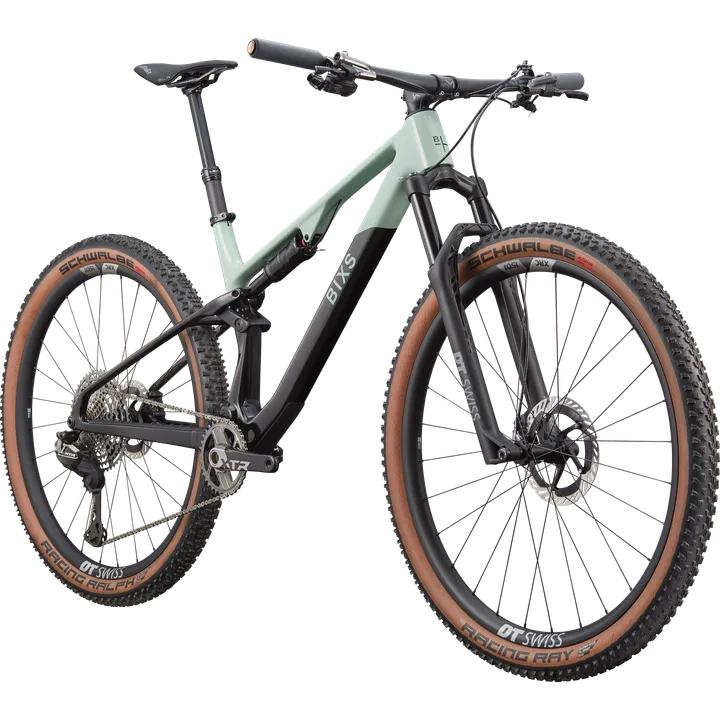

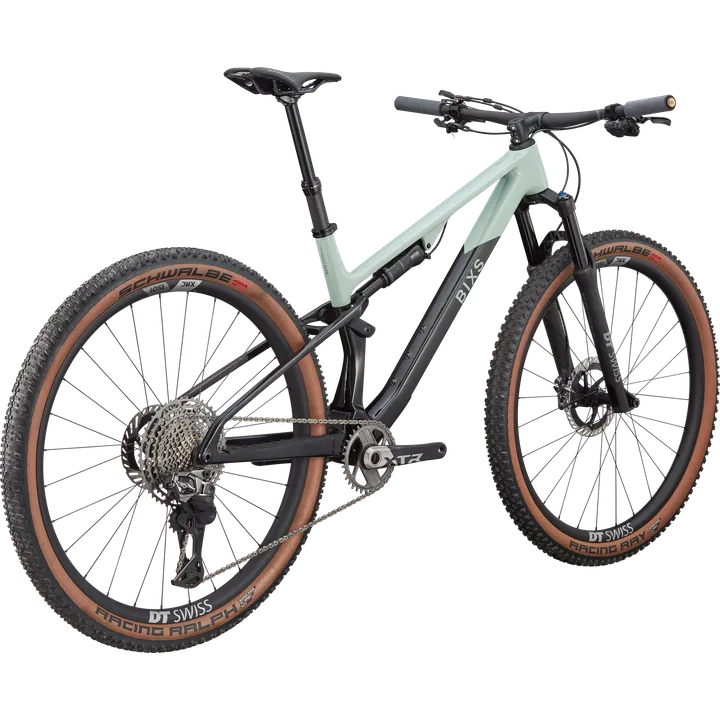

Everything you need to know about the Pace X.
Race pace, even when it gets technical.
A race bike comes into its own when the course gets more technical than expected. The Pace X uses the same Superlight carbon frame with 115 mm travel as the LTD, but opts for DT Swiss suspension with an F 232 One fork and R 232 One shock, both with 3-position remote control. Wireless Shimano XTR handles the shifting, while XTR two-piston brakes provide the stopping power. The key difference is the seatpost: it is dropper-adjustable, providing noticeably more control on steep or rocky descents. At 10.7 kg, the Pace X is in the weight class where races are won.
Article number | 101-506-5015 |
|---|---|
Frame sizes | S M L XL |
Frame | PACE SUPERLIGHT CARBON FULLSUSPENSION, 116 mm TRAVEL |
Fork | DT SWISS F 232 ONE, 3 POSITION REMOTE, 15x110 mm |
Damper | DT SWISS R 232 ONE, 3 POSITION REMOTE |
Derailleur back | SHIMANO XTR RD-M9250-SGS, 12-SPEED |
Size | ||||
|---|---|---|---|---|
S | M | L | XL | |
A - Reach | 415 mm | 445 mm | 475 mm | 505 mm |
B - Stack | 595 mm | 599 mm | 604 mm | 616 mm |
C - Top-tube-length | 563 mm | 594 mm | 626 mm | 657 mm |
D - Seat-tube-length | 380 mm | 420 mm | 450 mm | 480 mm |
E - Head-tube-length | 90 mm | 95 mm | 100 mm | 115 mm |
F - Fork-installation-length | 532 mm | 532 mm | 532 mm | 532 mm |
G - Fork-Offset | 44 mm | 44 mm | 44 mm | 44 mm |
H - Chainstay-length | 435 mm | 435 mm | 435 mm | 435 mm |
I - Seat Angle | 76 ° | 76 ° | 76 ° | 76 ° |
J - Head-tube-angle | 66.50 ° | 66.50 ° | 66.50 ° | 66.50 ° |
K - Bottom-bracket-drop | 42 mm | 42 mm | 42 mm | 42 mm |
L - Bottom-bracket-height | 330 mm | 330 mm | 330 mm | 330 mm |
M - Wheelbase | 1138 cm | 1170 cm | 1202 cm | 1238 cm |
