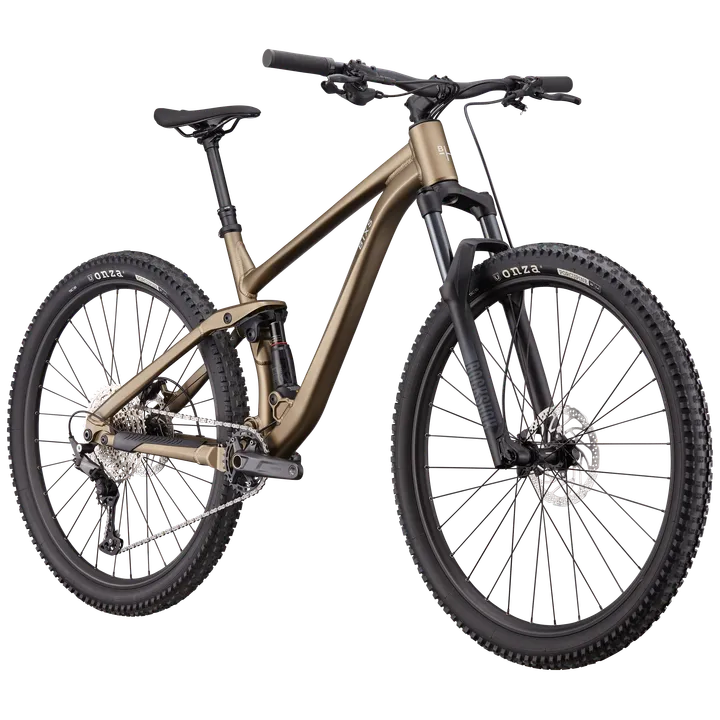

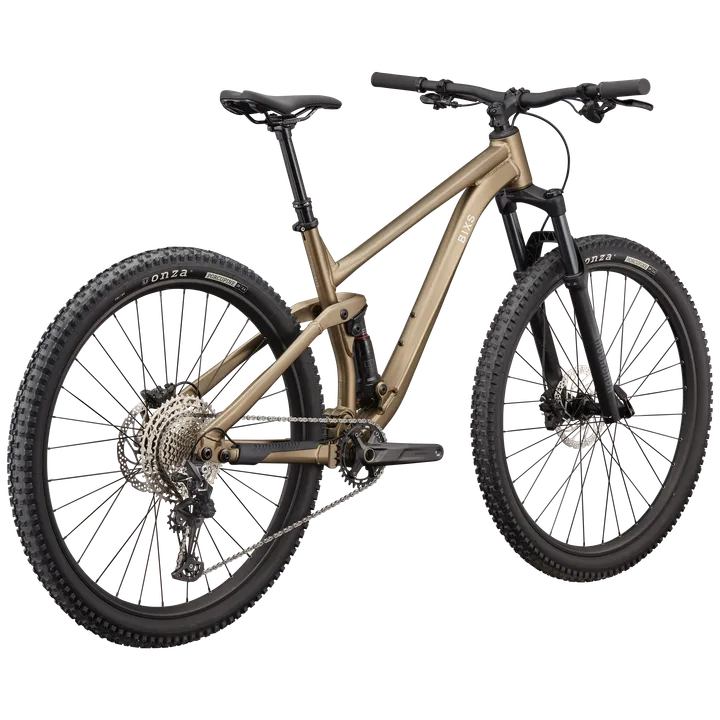

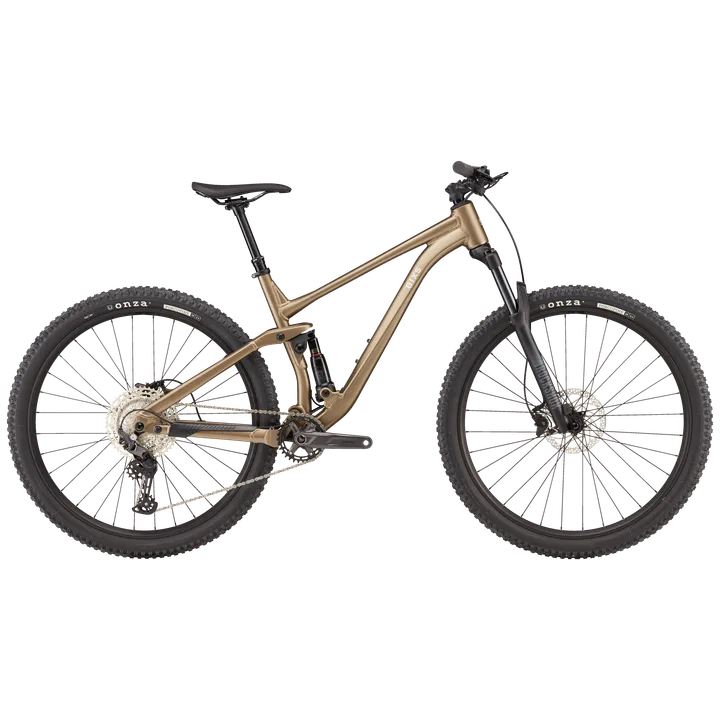

Everything you need to know about the Sign 520.
Your entry into a full-suspension bike—without compromises.
Your first full-suspension bike is a big deal. The Sign 520 makes it straightforward. The Premium Alloy frame features the geometry and 120 mm travel of the Sign family, combined with a Rock Shox Recon Silver RL fork with 130 mm and a Deluxe Select R shock designed for easy trails and long tours. The Shimano Deore shifting changes gears reliably and is easy to maintain, while the Alexrims rims with Shimano hubs are built for durability. It is the model that helps you learn the most.
Article number | 101-506-4015 |
|---|---|
Frame sizes | S M L XL |
Frame | SIGN PREMIUM ALLOY FULLSUSPENSION, 120 mm TRAVEL, 12x148 mm |
Fork | ROCK SHOX RECON SILVER RL, 130mm TRAVEL, 15x110mm, 51mm OFFSET |
Damper | ROCK SHOX DELUXE SELECT R, 0L2 LNL TS C1 |
Derailleur back | SHIMANO DEORE RD-M6100-SGS, 12-SPEED |
Size | ||||
|---|---|---|---|---|
S | M | L | XL | |
A - Reach | 400 mm | 420 mm | 440 mm | 465 mm |
B - Stack | 605 mm | 614 mm | 619 mm | 628 mm |
C - Top-tube-length | 574 mm | 596 mm | 617 mm | 645 mm |
D - Seat-tube-length | 390 mm | 420 mm | 460 mm | 500 mm |
E - Head-tube-length | 100 mm | 110 mm | 115 mm | 125 mm |
F - Fork-installation-length | 540 mm | 540 mm | 540 mm | 540 mm |
G - Fork-Offset | 51 mm | 51 mm | 51 mm | 51 mm |
H - Chainstay-length | 435 mm | 435 mm | 435 mm | 435 mm |
I - Seat Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
J - Head-tube-angle | 67 ° | 67 ° | 67 ° | 67 ° |
K - Bottom-bracket-drop | 36 mm | 36 mm | 36 mm | 36 mm |
L - Bottom-bracket-height | 337 mm | 337 mm | 337 mm | 337 mm |
M - Wheelbase | 1130 cm | 1154 cm | 1176 cm | 1205 cm |
