Everything you need to know about the Sign X.
Still enough strength for the descent.

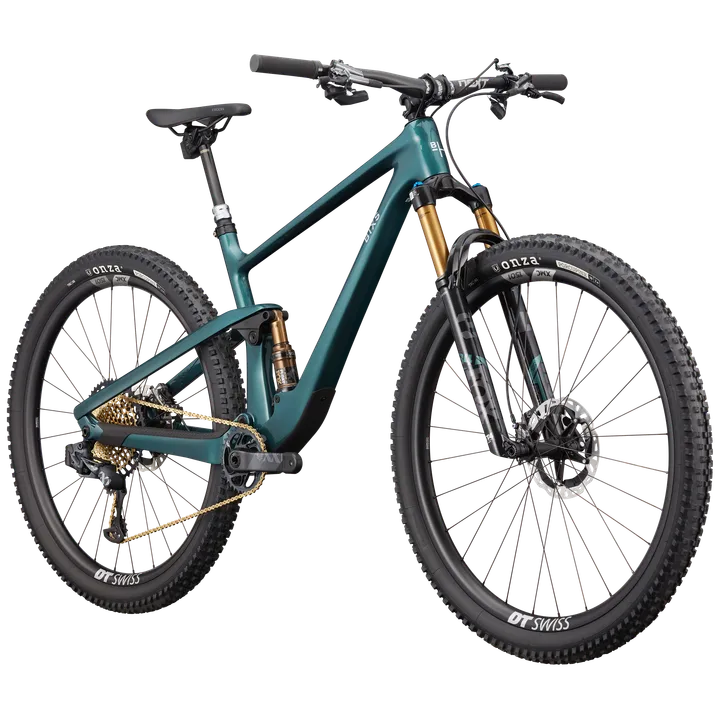

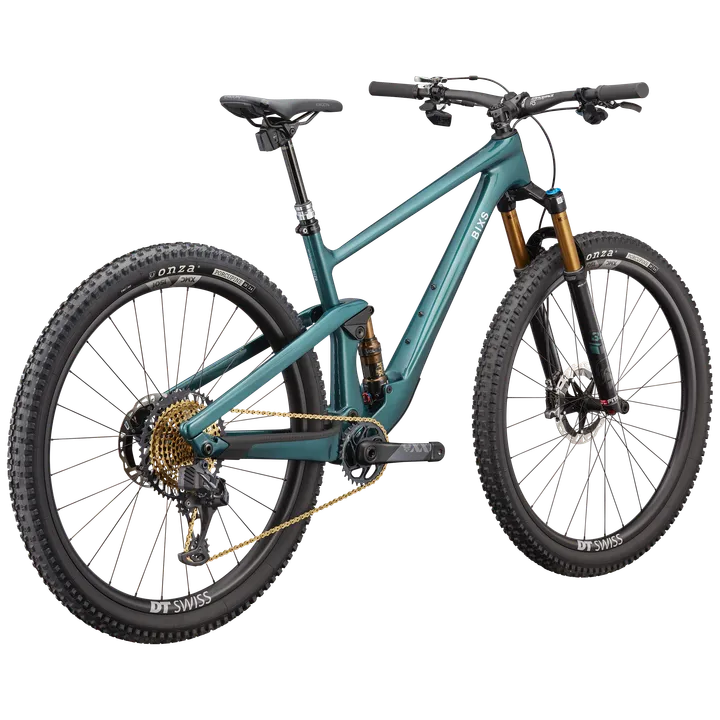

If you conserve energy on the climb, you’ll still have it for the descent. The Sign X features a superlight carbon frame with 130 mm of travel, a FOX 34 Float Factory Kashima fork with 130 mm of travel up front, and a FOX Float Factory shock in the rear—both lockable via remote lockout from the handlebars when the climb gets long. The wireless SRAM XX1 Eagle AXS drivetrain, Shimano XTR four-piston brakes, and DT Swiss XMC carbon wheels are the best components we put into a trail bike. In the end, what matters is that you still have energy left after your after-work ride.
Article number | 101-506-4010 |
|---|---|
Frame sizes | S M L XL |
Frame | SIGN SUPERLIGHT CARBON FULLSUSPENSION, 120 mm TRAVEL, 12x148 mm |
Fork | FOX 34 FLOAT FACTORY KASHIMA FIT4, 130mm TRAVEL, 15x110mm, 51mm OFFSET |
Damper | FOX FLOAT FACTORY KASHIMA, 2 POSITION REMOTE |
Derailleur back | SRAM XX1 EAGLE AXS, 12-SPEED |
Size | ||||
|---|---|---|---|---|
S | M | L | XL | |
A - Reach | 395 mm | 420 mm | 440 mm | 465 mm |
B - Stack | 599 mm | 608 mm | 618 mm | 631 mm |
C - Top-tube-length | 558 mm | 587 mm | 610 mm | 640 mm |
D - Seat-tube-length | 380 mm | 420 mm | 460 mm | 500 mm |
E - Head-tube-length | 90 mm | 100 mm | 110 mm | 125 mm |
F - Fork-installation-length | 540 mm | 540 mm | 540 mm | 540 mm |
G - Fork-Offset | 51 mm | 51 mm | 51 mm | 51 mm |
H - Chainstay-length | 437 mm | 437 mm | 437 mm | 437 mm |
I - Seat Angle | 74.6 ° | 74.6 ° | 74.6 ° | 74.6 ° |
J - Head-tube-angle | 67 ° | 67 ° | 67 ° | 67 ° |
K - Bottom-bracket-drop | 41 mm | 41 mm | 41 mm | 41 mm |
L - Bottom-bracket-height | 332 mm | 332 mm | 332 mm | 332 mm |
M - Wheelbase | 1122 cm | 1151 cm | 1175 cm | 1206 cm |
