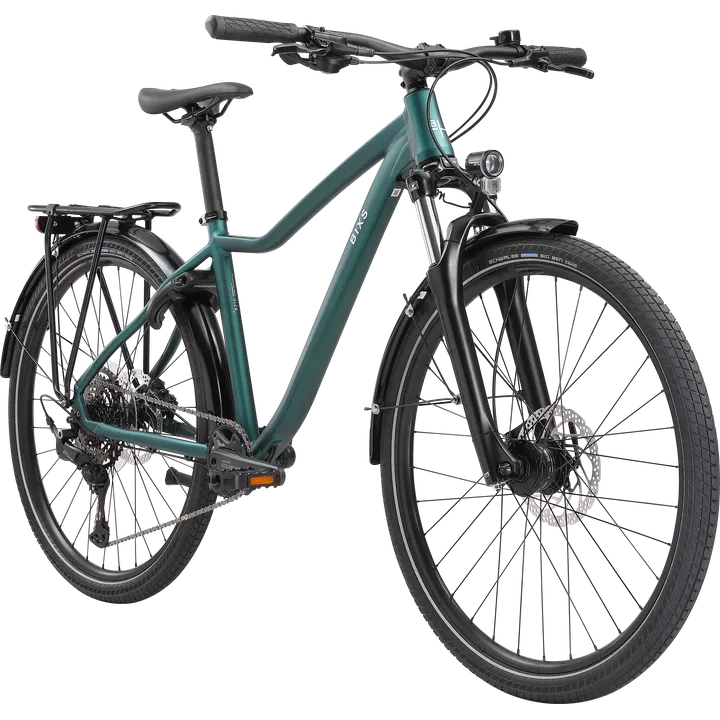

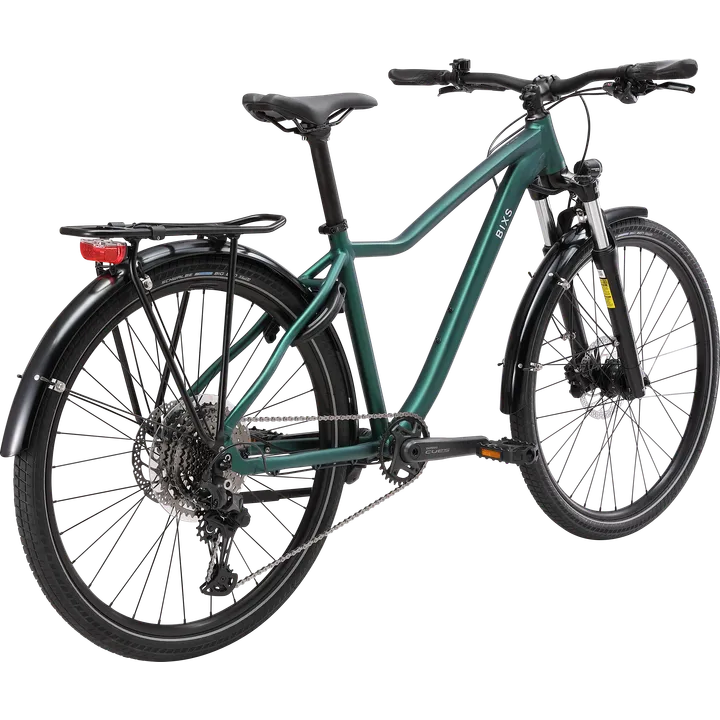

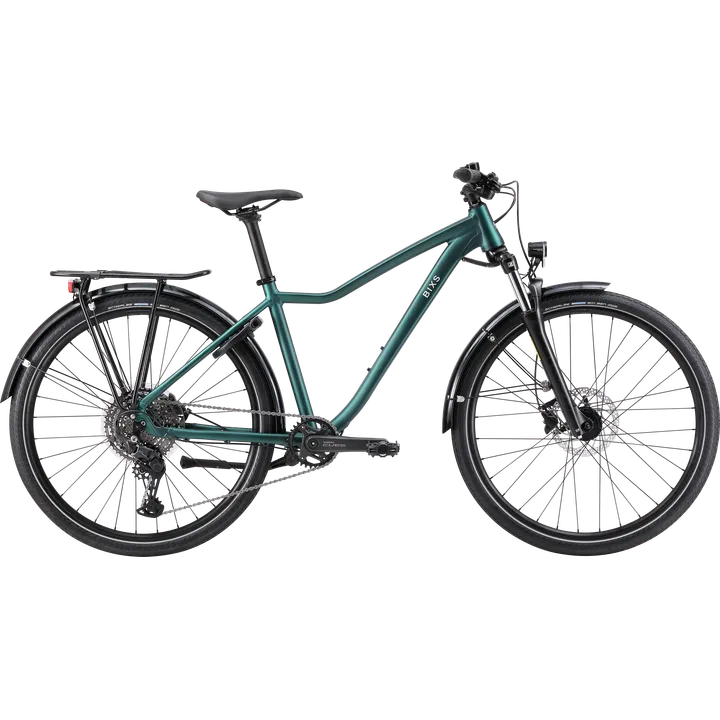

Everything you need to know about the Splash EQ.
Ready from the forest path to the commute.
A bike that keeps up with everyday life is actually ridden. The Splash EQ achieves this through its features. A Racktime Eco rack with the Snap-It system, aluminum fenders, and a Trelock LS-383 Veo light with 50 lux are factory-installed, powered by the Shimano hub dynamo—so there are no batteries to worry about forgetting. The Premium Alloy frame with a Suntour steel-spring fork and 100 mm of travel stays true to the family, while the Shimano CUES groupset features a 1x10 drivetrain. The narrower Schwalbe Big Ben tires roll noticeably more easily on asphalt than knobby tires. It’s the Splash for everyone who’s on the go every day.
Article number | 101-506-4045 |
|---|---|
Frame sizes | XS S M L |
Frame | SPLASH PREMIUM ALLOY HARDTAIL, 5x135 mm |
Fork | SUNTOUR SF22-NVX30 COIL, 100mm TRAVEL, 5x100mm, 42mm OFFSET |
Derailleur back | SHIMANO CUES RD-U6000, 10-SPEED |
Gear lever | SHIMANO CUES SL-U6000-10R |
Size | ||||
|---|---|---|---|---|
XS | S | M | L | |
A - Reach | 374 mm | 394 mm | 412 mm | 430 mm |
B - Stack | 591 mm | 591 mm | 596 mm | 605 mm |
C - Top-tube-length | 550 mm | 570 mm | 590 mm | 610 mm |
D - Seat-tube-length | 350 mm | 380 mm | 430 mm | 480 mm |
E - Head-tube-length | 105 mm | 105 mm | 110 mm | 120 mm |
F - Fork-installation-length | 507 mm | 507 mm | 507 mm | 507 mm |
G - Fork-Offset | 42 mm | 42 mm | 42 mm | 42 mm |
H - Chainstay-length | 440 mm | 440 mm | 440 mm | 440 mm |
I - Seat Angle | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
J - Head-tube-angle | 68 ° | 68 ° | 68 ° | 68 ° |
K - Bottom-bracket-drop | 37 mm | 37 mm | 37 mm | 37 mm |
L - Bottom-bracket-height | 307 mm | 307 mm | 307 mm | 307 mm |
M - Wheelbase | 1087 cm | 1102 cm | 1123 cm | 1144 cm |
