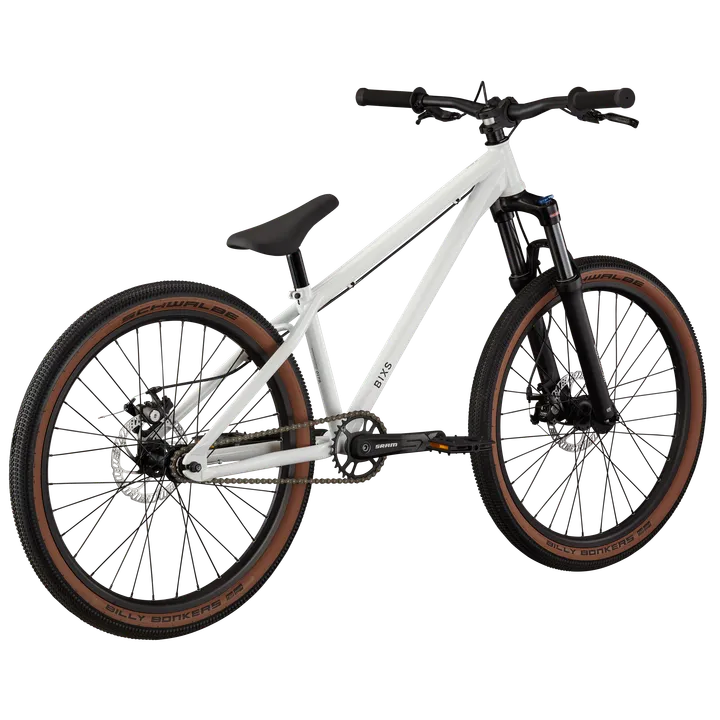

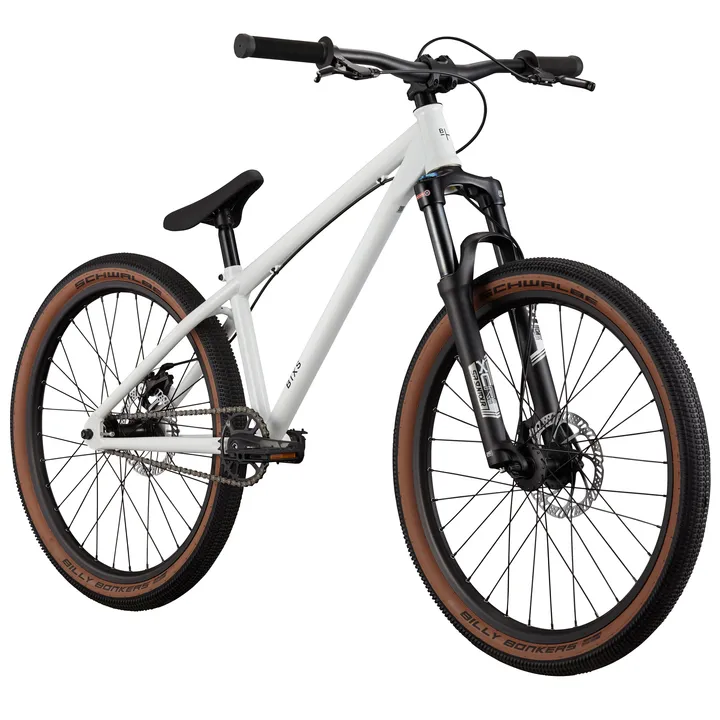

Everything you need to know about the Stomp 24.

Ride along in the park, even if you’re small in stature.
You don’t have to start out with an adult-sized bike. The Stomp 24 rides on 24-inch wheels so that younger riders can join in at the dirt jump park and on the pump track instead of standing on the sidelines. The steel frame with bolted bottom bracket cups and adjustable dropouts is identical to that of the larger models, making it just as sturdy and easy to maintain. Up front is a Suntour XCR32 fork with a steel spring. It’s a single-speed bike; the mechanical Tektro disc brakes and wide handlebars are tailored to smaller frames and shorter arms. It remains easy to handle, even if it ends up in the dirt more often than it stays upright.

Article number | 101-506-4062 |
|---|---|
Frame sizes | onesize |
Frame | STOMP PREMIUM STEEL HARDTAIL, 10x135 mm |
Fork | SUNTOUR SF14-XCR32 COIL, 100mm TRAVEL, 5x100mm, 40mm OFFSET |
Crankset | SRAM SX EAGLE POWERSPLINE, 30T |
Cassette | KT SINGLE SPROCKET, 13T |
Size | |
|---|---|
One Size | |
A - Reach | 367 mm |
B - Stack | 530 mm |
C - Top-tube-length | 529 mm |
D - Seat-tube-length | 300 mm |
E - Head-tube-length | 100 mm |
F - Fork-installation-length | 478 mm |
G - Fork-Offset | 41 mm |
H - Chainstay-length | 370 mm |
I - Seat Angle | 73 ° |
J - Head-tube-angle | 69 ° |
K - Bottom-bracket-drop | 5 mm |
L - Bottom-bracket-height | 302 mm |
M - Wheelbase | 982 cm |
