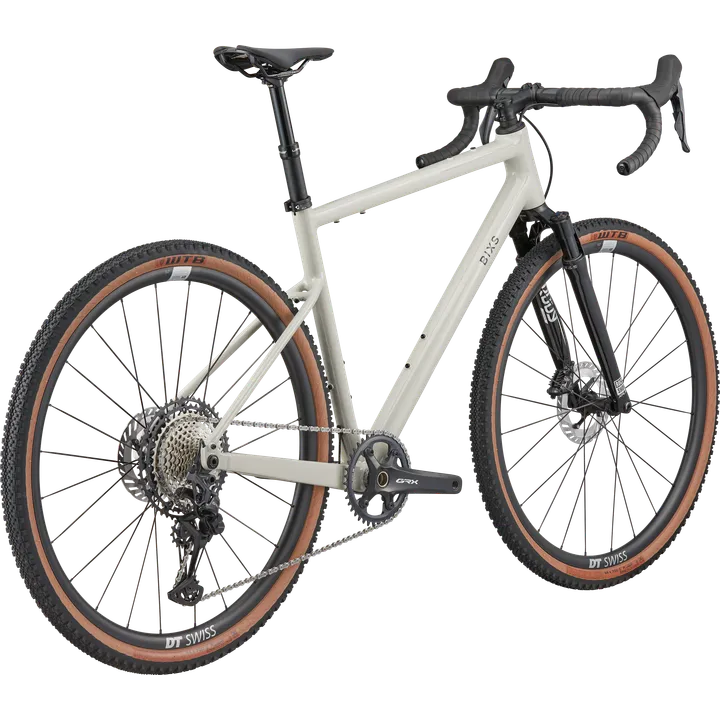

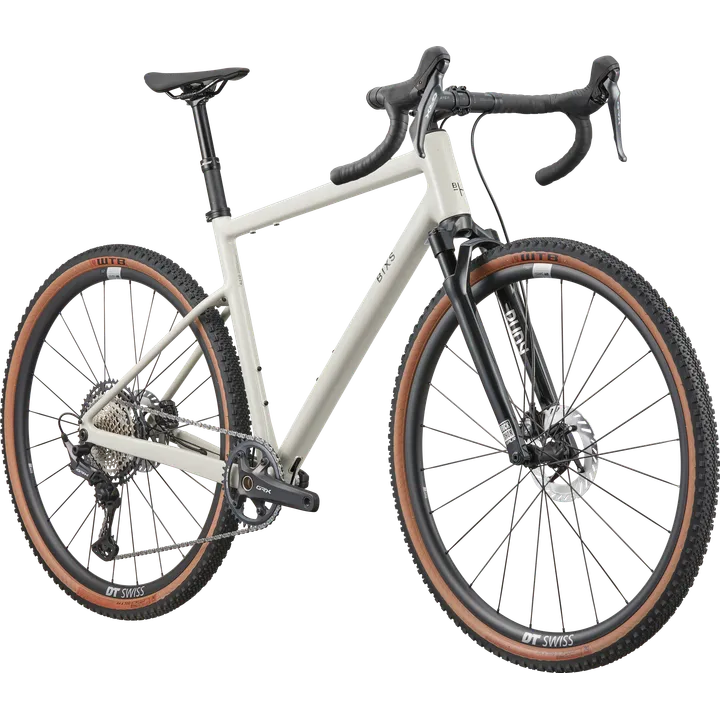

Everything you need to know about the Traverse 1.
For the point where the path ends.

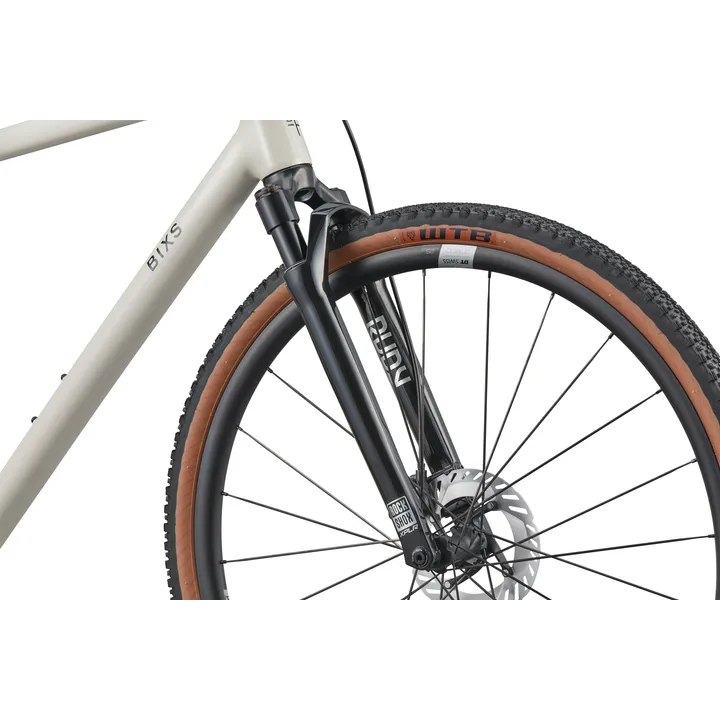

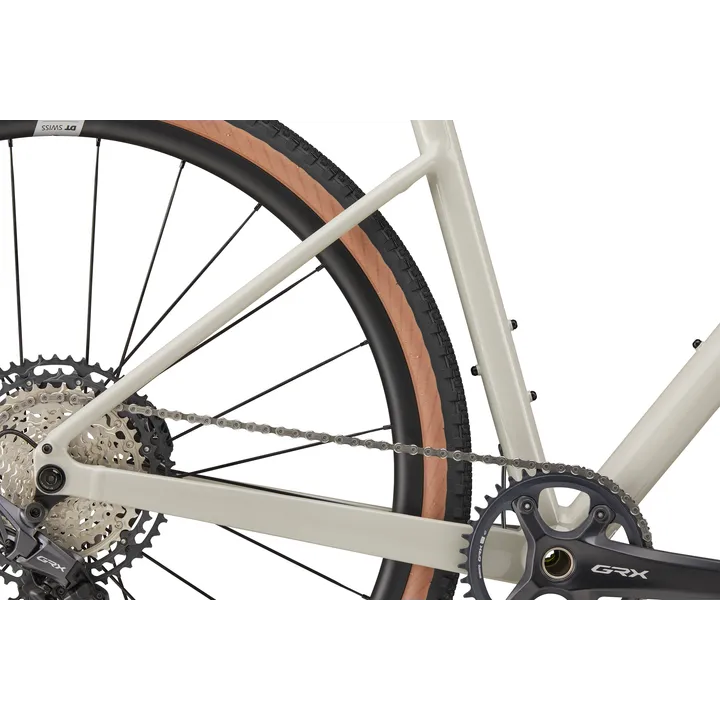

At a certain point, a trail stops being just a trail. The Traverse 1 is the most off-road-capable model in the family and is the only one equipped with a Rock Shox Rudy Ultimate XPLR suspension fork. Both features pay off on rough dirt roads and during long days in the saddle, where the other Traverse models rely on rigid forks. The mechanical Shimano GRX drivetrain with 1x12 speeds and a 10–51 cassette offers plenty of gear range even when carrying luggage, and the DT Swiss G 1800 wheels are built to last. It’s the bike that goes the farthest.
Article number | 101-506-091202 |
|---|---|
Frame sizes | S M L XL |
Frame | TRAVERSE PREMIUM ALLOY HARDTAIL, 12x142 mm |
Fork | ROCK SHOX RUDY ULTIMATE XPLR, 12x100 mm |
Derailleur back | SHIMANO GRX RD-RX822-SGS, 12-SPEED |
Gear lever | SHIMANO GRX ST-RX820 |
Size | ||||
|---|---|---|---|---|
S | M | L | XL | |
A - Reach | 392 mm | 401 mm | 411 mm | 421 mm |
B - Stack | 564 mm | 583 mm | 602 mm | 620 mm |
C - Top-tube-length | 548 mm | 563 mm | 578 mm | 593 mm |
D - Seat-tube-length | 450 mm | 480 mm | 510 mm | 540 mm |
E - Head-tube-length | 110 mm | 130 mm | 150 mm | 170 mm |
F - Fork-installation-length | 435 mm | 435 mm | 435 mm | 435 mm |
G - Fork-Offset | 45 mm | 45 mm | 45 mm | 45 mm |
H - Chainstay-length | 435 mm | 435 mm | 435 mm | 435 mm |
I - Seat Angle | 74.3 ° | 74.3 ° | 74.3 ° | 74.3 ° |
J - Head-tube-angle | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
K - Bottom-bracket-drop | 70 mm | 70 mm | 70 mm | 70 mm |
L - Bottom-bracket-height | 288 mm | 288 mm | 288 mm | 288 mm |
M - Wheelbase | 1055 cm | 1072 cm | 1089 cm | 1106 cm |
