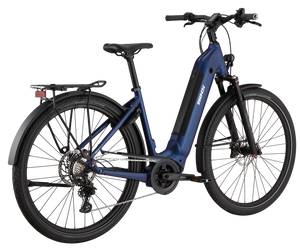

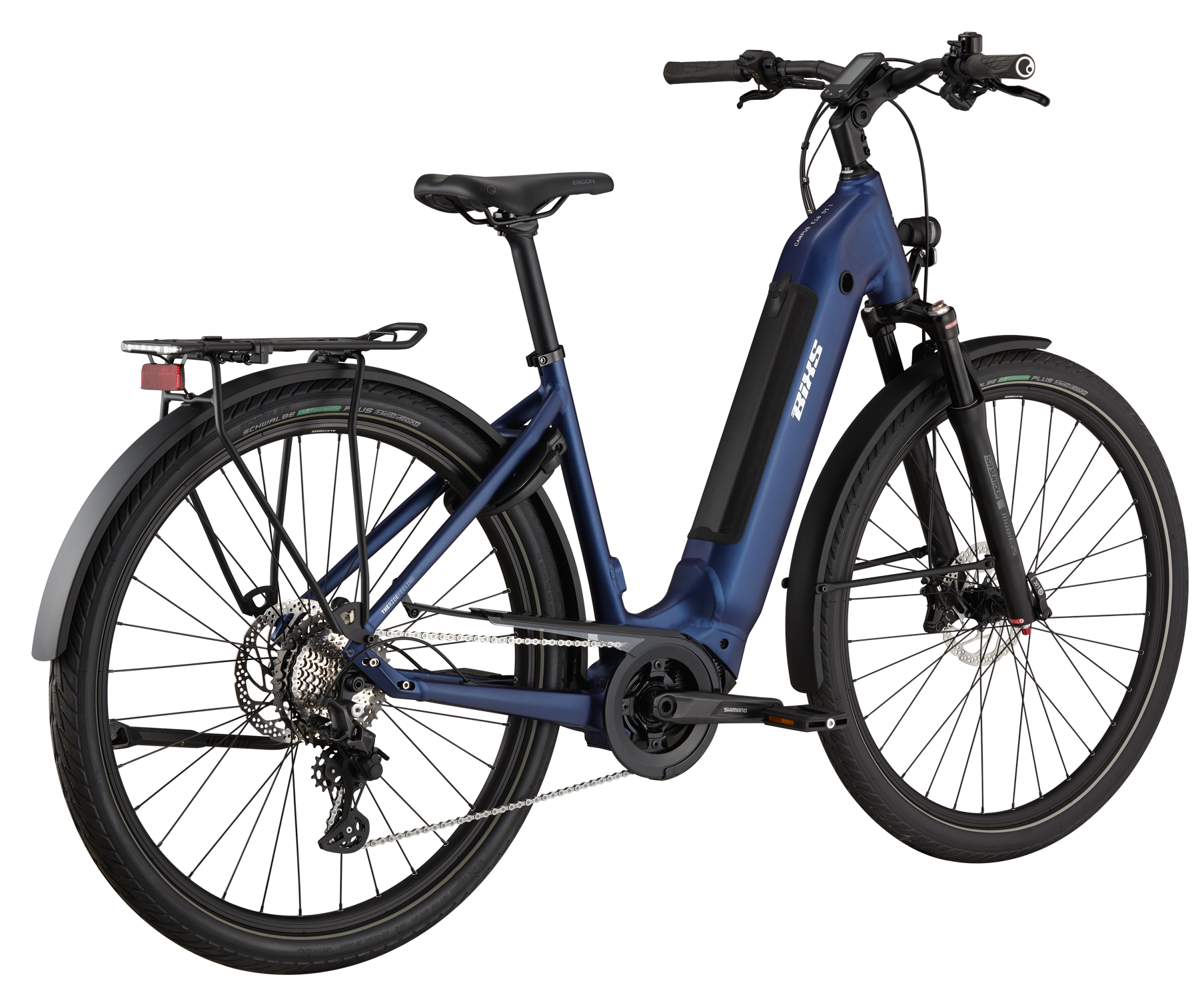

Spezifikationen Campus-10 DI

Rahmen E-TOURING CONCEPT, ALLOY 6061, DI 700C
Gabel SUNTOUR MOBIE 25 AIR, 700C, TAPERED, 15x100mm AXLE,  75mm TRAVEL, LOCKOUT
Motor SHIMANO STEPS EP8, 250 WATT
Batterien DARFON, 36V, 630Wh
Display SHIMANO SC-E6100
Unterstützungsstufen ECO, TRAIL, BOOST
E-Bike Speed 25 km/h
Schaltwerk SHIMANO RD-M5130 GS SHADOW PLUS DESIGN, 10-SPEED
Schalthebel SHIMANO SL-M5130, WITH OPTICAL GEAR DISPLAY
Kurbelgarnitur SHIMANO STEPS FC-EM600, 38 TEETH
Pedal VP 831, INLEAD GRIP TREAD
Kassette SHIMANO CS-LG600, 11-43 THEETH, 10-SPEED
Kette SHIMANO CN-LG500 10-SPEED
Bremsen SHIMANO BR-MT420, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:180mm, R:180mm ROTORS
Bremshebel SHIMANO BL-MT402-3A
Nabe vorne SHIMANO HB-MT410, 32 HOLES, 15x100mm THRU AXLE
Nabe hinten SHIMANO FH-MT400, 32 HOLES, 12x142mm THRU AXLE
Vorderreifen SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Hinterreifen SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Vorbau ERGOTEC SEPIA AHEAD 50, ANGLE ADJUSTABLE, 31.8mm CLAMP
Lenker BIXS HB-RB12L RIZER BAR, 700mm, 15°ANGLE, 25mm RISE, 31.8mm
Steuersatz FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Sattelstütze BIXS SP-3D2, 350mm, 31.6mm
Sattel ERGON ST10
Rücklicht HERRMANS INTEGRATED REAR LIGHT ON CARRIER
Gepäckträger MASSLOAD BIXS CUSTOM WITH INTEGRATED REAR LIGHT
Schutzbleche BIXS ALLOY FENDER, 62mm WIDE, 700C
Gewicht 27.6 KG

Geometrie

Grösse A B C D E F G H I J K L
S 440 590 180 460 74° 69° 1136 90 678 405 300 170
M 480 595 180 460 74° 69° 1146 90 678 410 300 170
L 520 600 180 460 74° 69° 1154 90 678 415 300 170

A Rahmengrösse
B Oberrohr horizontal mm
C Steuerrohr mm
D Kettenstreben mm
E Sitzwinkel Grad
F Radstand mm
G Radstand mm
H Vorbau mm
I Stack mm
J Reach mm
K Tretlagerhöhe mm
L Kurbellänge mm
