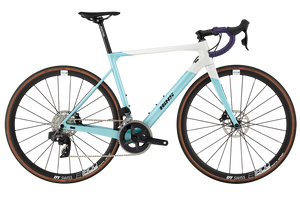

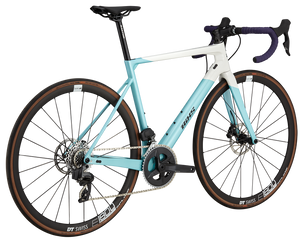

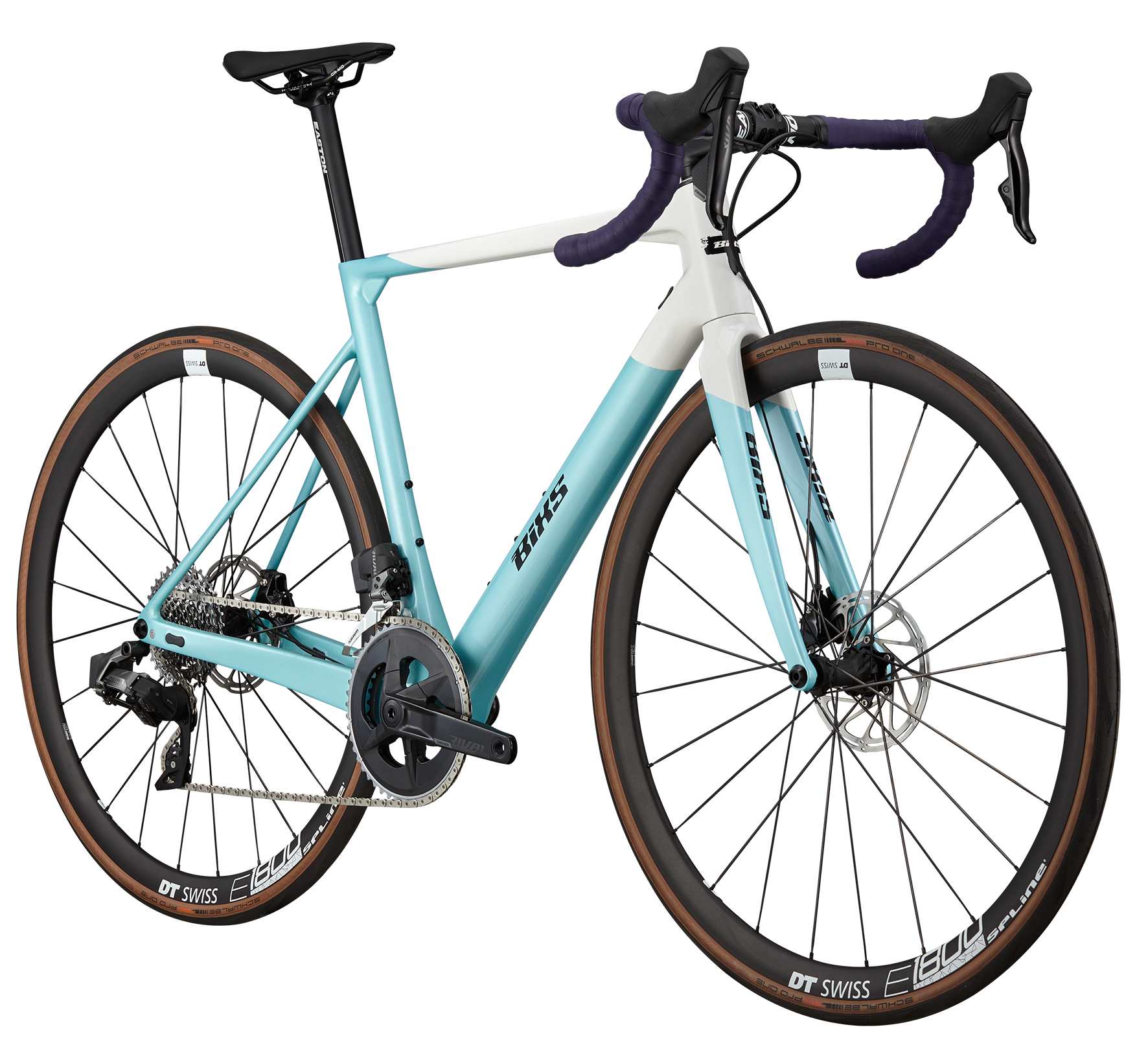

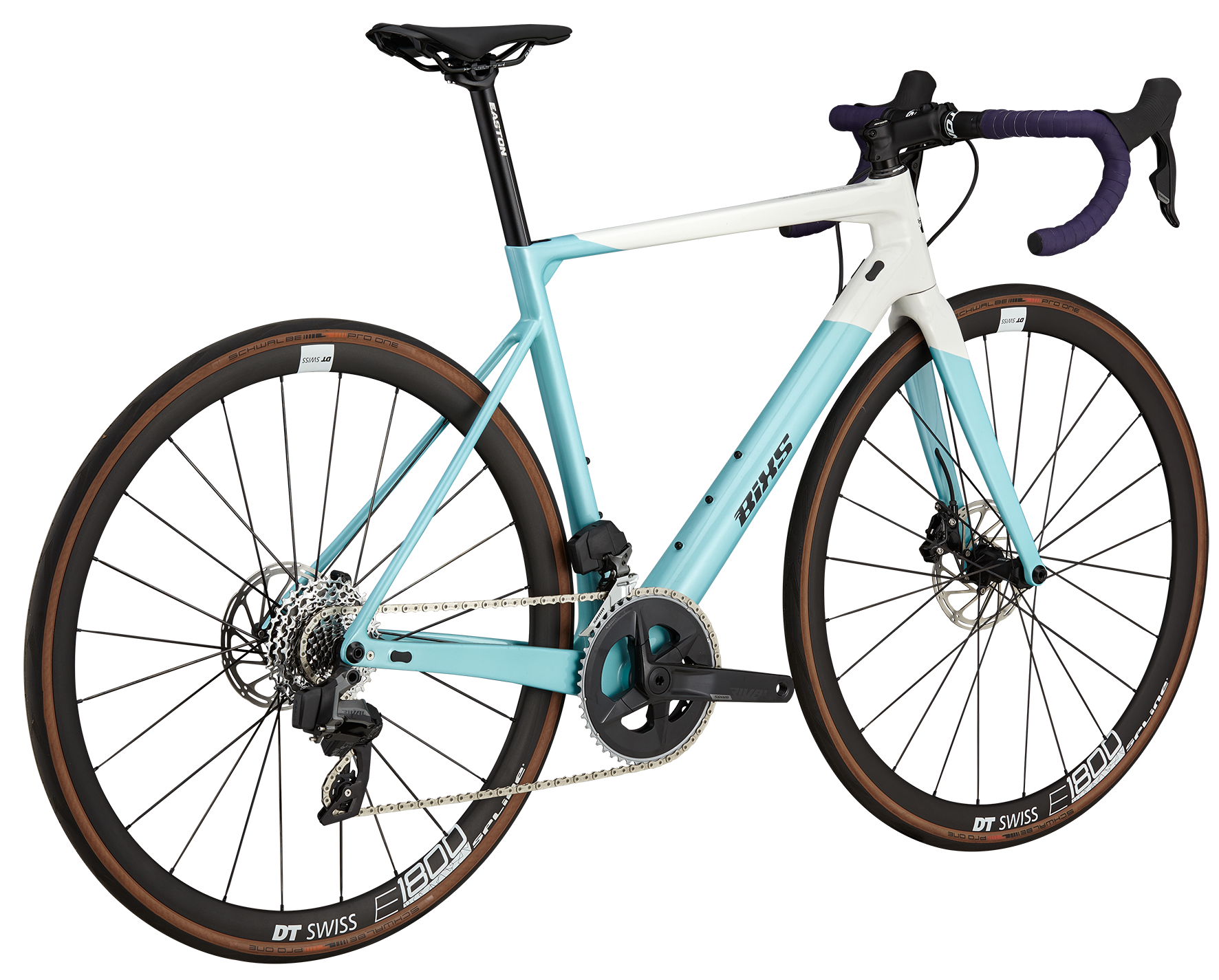

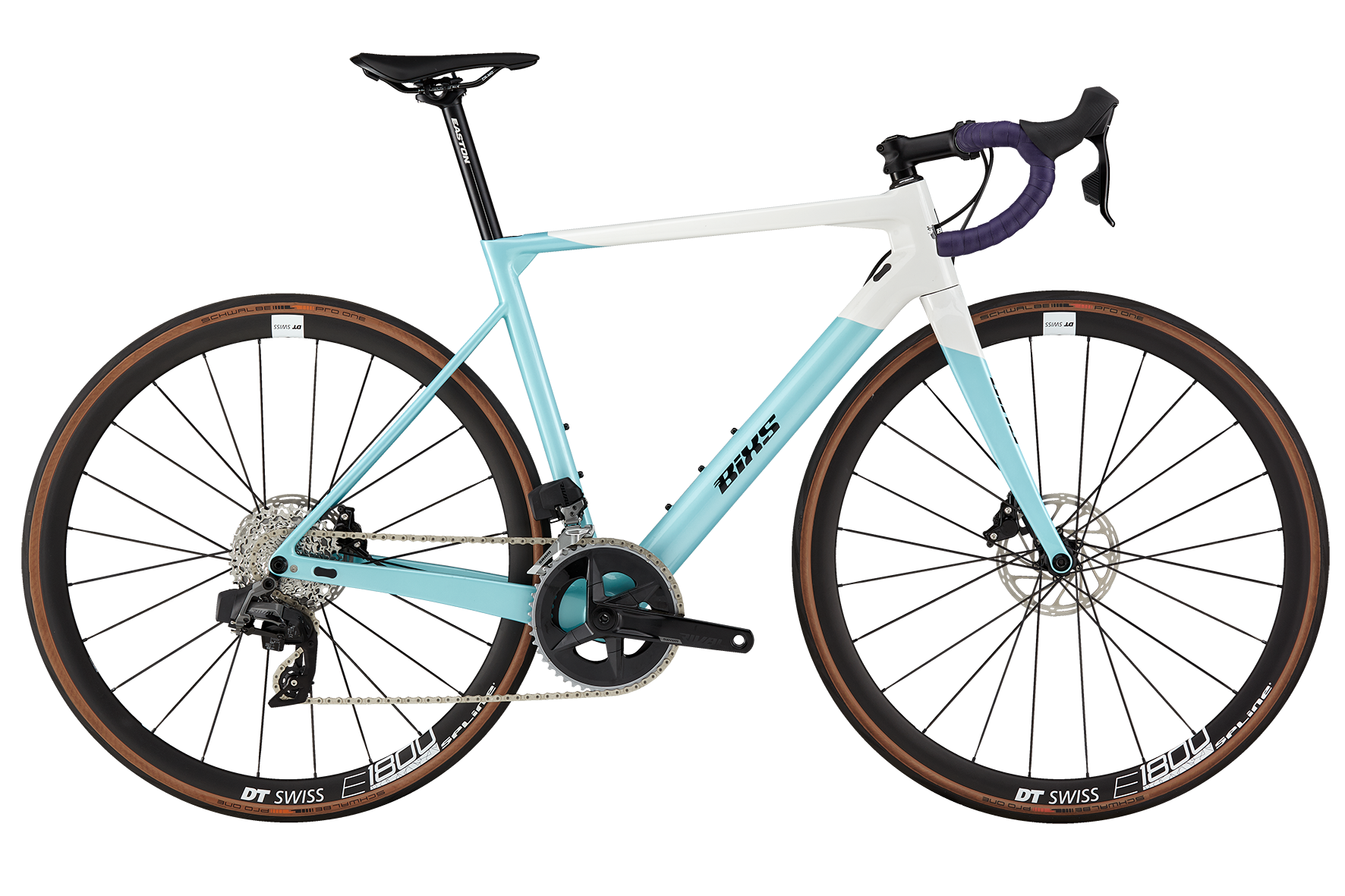

Spezifikationen Gran Turismo 2

Rahmen DYNAMIC ROAD GEOMETRY, SUPERLITE CARBON FOR DISC BRAKE, 700C
Gabel FULL CARBON ROAD FORK, 12x100mm THRU AXLE
Schaltwerk SRAM RIVAL ETAP AXS, 12-SPEED
Umwerfer SRAM RIVAL ETAP AXS
Schalthebel SRAM RIVAL ETAP AXS ALLOY LEVER
Kurbelgarnitur SRAM RIVAL, ALLOY CRANKARM, 48-35 THEETH
Innenlager SRAM BB DUB PF 86.5 ROAD
Kassette SRAM XG-1250 RIVAL, 10-36 TEETH, 12-SPEED
Kette SRAM RIVAL 12-SPEED
Bremsen SRAM RIVAL, HYDRAULIC DISC BRAKE, F:160mm, R:160mm ROTORS
Bremshebel SRAM RIVAL ETAP AXS ALLOY LEVER
Nabe vorne DT SWISS WHEELSET E 1800 SPLINE, 12x100mm THRU AXLE
Nabe hinten DT SWISS WHEELSET E 1800 SPLINE, 12x142mm THRU AXLE
Vorderreifen SCHWALBE PRO ONE EVO SUPER RACE, V-GUARD, TLE 700x28C, maximum tire width: 28C
Hinterreifen SCHWALBE PRO ONE EVO SUPER RACE, V-GUARD, TLE 700x28C, maximum tire width: 28C
Vorbau EASTON EA50, 7°ANGLE, 31.8mm CLAMP
Lenker EASTON EA50 ROAD ALLOY, 31.8mm
Steuersatz FSA ORBIT C33 NO 44 CF, 1 1/8" UPPER AND 1 1/4" LOWER BEARING
Sattelstütze EASTON EA50, 350mm, 27.2mm
Sattel BIXS VL-1A47
Gewicht 8.6 KG

Geometrie

Grösse A B C D E F G H I J K L
XS 430 505 100 415 74.5 70.5 963 90 504 365 - 170
S 467 530 120 415 74 72.5 967 90 530 378 - 172.5
M 498 545 140 415 73.5 73 975 100 545 384 - 172.5
L 518 560 160 415 73 73 985 100 565 388 - 175
XL 537 575 180 415 73 73 1000 110 584 397 - 175

A Rahmengrösse
B Oberrohr horizontal mm
C Steuerrohr mm
D Kettenstreben mm
E Sitzwinkel Grad
F Steuerrohrwinkel Grad
G Radstand mm
H Vorbau mm
I Stack mm
J Reach mm
K Tretlagerhöhe mm
L Kurbellänge mm
