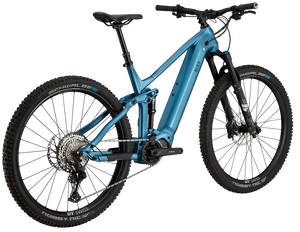

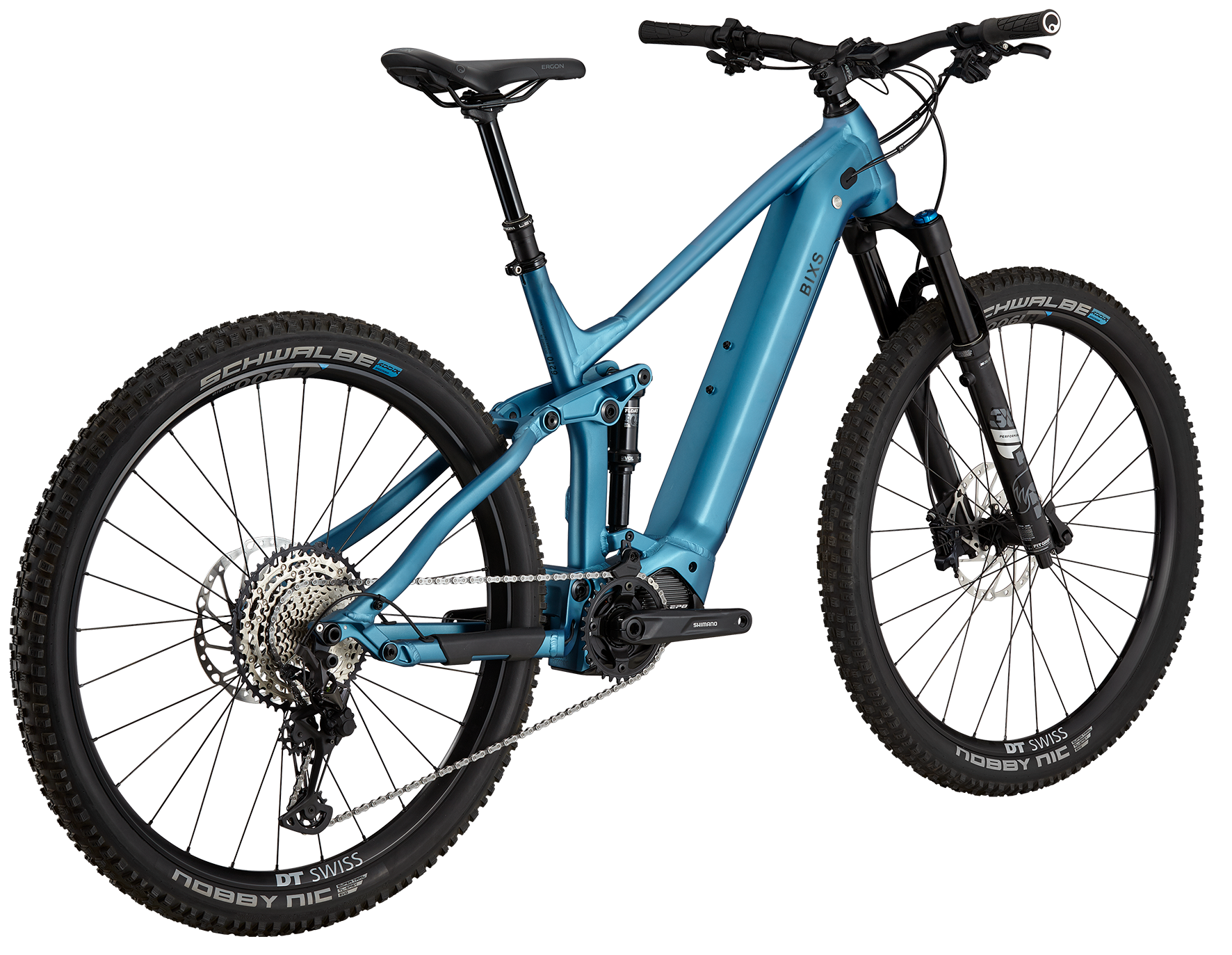

Spezifikationen Sign-E13

Rahmen E-TRAIL GEOMETRY, ALLOY 6061, 130mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"
Gabel FOX 36 FLOAT PERFORMANCE, 15x110mm AXLE, TAPERED, GRIP, TRAVEL: 130mm, 3-POSITION LEVER
Motor SHIMANO STEPS EP8, 250 WATT
Batterien DARFON, 36V, 630Wh
Display SHIMANO SC-EM800
Unterstützungsstufen ECO, TRAIL, BOOST
E-Bike Speed 25 km/h
Dämpfer FOX FLOAT DPS PERFORMANCE ELITE, LV, EVOL, 3 POS LEVER, 205x60, TRUNNION MOUNT, HARDWAR: 30mmx8mm
Schaltwerk SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED
Schalthebel SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Kurbelgarnitur SHIMANO FC-EM600, 34 TEETH
Kassette SHIMANO CS-M7100, 10-51 THEETH, 12-SPEED
Kette SHIMANO CN-M8100 12-Speed
Bremsen SHIMANO SLX BR-M7120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS
Bremshebel SHIMANO SLX BL-M7100, ISPEC EV
Felgen DT SWISS WHEELSET SPLINE H-1900 TLR, 28 HOLES, INNER WIDTH 35mm, 29"
Nabe vorne DT SWISS WHEELSET SPLINE H-1900, 28 HOLES, 15x110mm THRU AXLE
Nabe hinten DT SWISS WHEELSET SPLINE H-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE
Vorderreifen SCHWALBE NOBBY NIC EVO SUPER TRAIL, ADDIX SPEEDGRIP, TL EASY, 29x2.6"
Hinterreifen SCHWALBE NOBBY NIC EVO SUPER TRAIL, ADDIX SPEEDGRIP, TL EASY, 29x2.6"
Vorbau RACE FACE AEFFECT R, 0°ANGLE, 35mm CLAMP
Lenker RACE FACE AEFFECT R, 780mm, 20mm RISE, 8° BACKSWEEP, 35mm
Steuersatz FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Sattelstütze KIND SHOCK LEV INTEGRA, S: 65mm, M: 100mm, L: 125mm, XL: 150mm TRAVEL, REMOTE, 30.9mm
Sattel ERGON SM10 E-MOUNTAIN SPORT MEN
Gewicht 24.4 KG

Geometrie

Grösse A B C D E F G H I J K L
S 406 590 135 470 74° 66° 1196 40 633 408 340 165
M 445 595 140 470 74° 66° 1202 50 638 413 340 165
L 480 615 145 470 74° 66° 1223 60 643 431 340 165
XL 530 635 150 470 74° 66° 1243 70 648 450 340 165

A Rahmengrösse
B Oberrohr horizontal mm
C Steuerrohr mm
D Kettenstreben mm
E Sitzwinkel Grad
F Radstand mm
G Radstand mm
H Vorbau mm
I Stack mm
J Reach mm
K Tretlagerhöhe mm
L Kurbellänge mm
