Spezifikationen Sign-EX Carbon
| Rahmen | SIGN-E CARBON FULLSUSPENSION, 130MM TRAVEL, BOOST |
| Gabel | FOX 36 FLOAT FACTORY KASHIMA GRIP X2, 140 MM TRAVEL, 15X110 MM |
| Dämpfer | FOX FLOAT FACTORY-S KASHIMA EVOL LV, 2 POSITION LEVER |
| Motor | SHIMANO EP801, 85NM |
| Batterien | DARFON FULL INTEGRATED, 400 WH, RANGE EXTENDER CAPABLE FOR SIZE M, L , X L |
| Display | SHIMANO SC-EN600 |
| Schaltwerk | SHIMANO XTR RD-M9260-SGS, 12-SPEED, DI2 FREE SHIFT |
| Schalthebel | SHIMANO XTR SW-M9250-IR |
| Kurbelgarnitur | SHIMANO FC-EM900, SM-CRE80-12-B, 34T |
| Kassette | SHIMANO XTR CS-M9200-12, 10-51T |
| Kette | SHIMANO XTR CN-M9100 |
| Bremsen | SHIMANO XTR BL-M9220, BR-M9220 4-PISTON |
| Bremsscheiben | SHIMANO RT-CL900, CENTER LOCK, 203/203 MM |
| Wheelset | DT SWISS HXC 1501 SPLINE, CARBON, 30 MM INNER WIDTH, SHIMANO MICRO SPLINE FREEHUB |
| Vorderreifen | ONZA PORCUPINE, 29X2.4", TRC, TUBELESS READY |
| Hinterreifen | ONZA PORCUPINE, 29X2.4", TRC, TUBELESS READY |
| Vorbau | SATORI URSA, 0°, 35MM CLAMP |
| Lenker | RACE FACE ERA 35 CARBON, 20 MM RISE, 780 MM |
| Sattelstütze | FOX TRANSFER KASHIMA, Ø31.6MM, S: 120MM, M: 150MM, L: 180MM, XL: 180MM |
| Sattel | FIZIK TERRA RIDON X5 |
| Scheinwerfer | SUPERNOVA MINI 3 125 LUX |
| Rücklicht | INFINI OLA 6 MODES BATTERY LIGHT |
| Rahmengrösse | S, M, L, XL |
| Gewicht | 18.6 Kg |
Geometrie
| SIZE | S | M | L | XL | |
| A | Reach | 424 | 449 | 469 | 489 |
| B | Stack | 607 | 612 | 630 | 648 |
| C | Top Tube | 566 | 593 | 619 | 645 |
| D | Seat Tube | 380 | 420 | 460 | 480 |
| E | Head Tube | 95 | 100 | 120 | 140 |
| F | Fork Length | 554 | 554 | 554 | 554 |
| G | Fork Offset | 44 | 44 | 44 | 44 |
| H | Chainstay | 450 | 450 | 450 | 450 |
| I | Seat Angle | 76.8 | 76.7 | 76.6 | 76.5 |
| J | Head Tube Angle | 65.4 | 65.4 | 65.4 | 65.4 |
| K | BB Drop | 34 | 34 | 34 | 34 |
| L | BB Height | 341 | 341 | 341 | 341 |
| M | Wheelbase | 1183 | 1210 | 1239 | 1267 |
| Stem Length | 50 | 50 | 50 | 50 | |
| Crank Length | 165 | 165 | 165 | 165 |

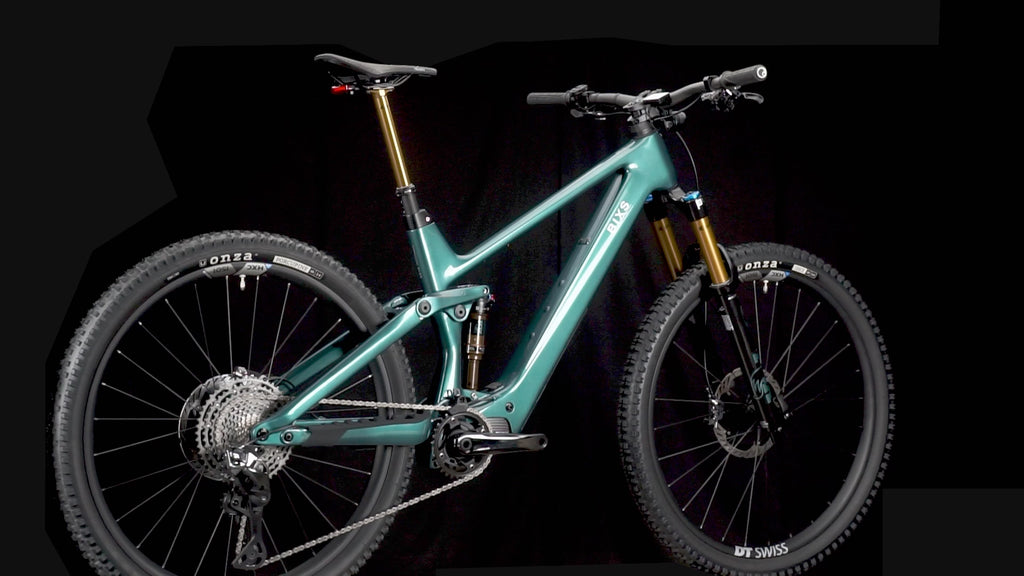

Die Sign-E Carbon Familie.
