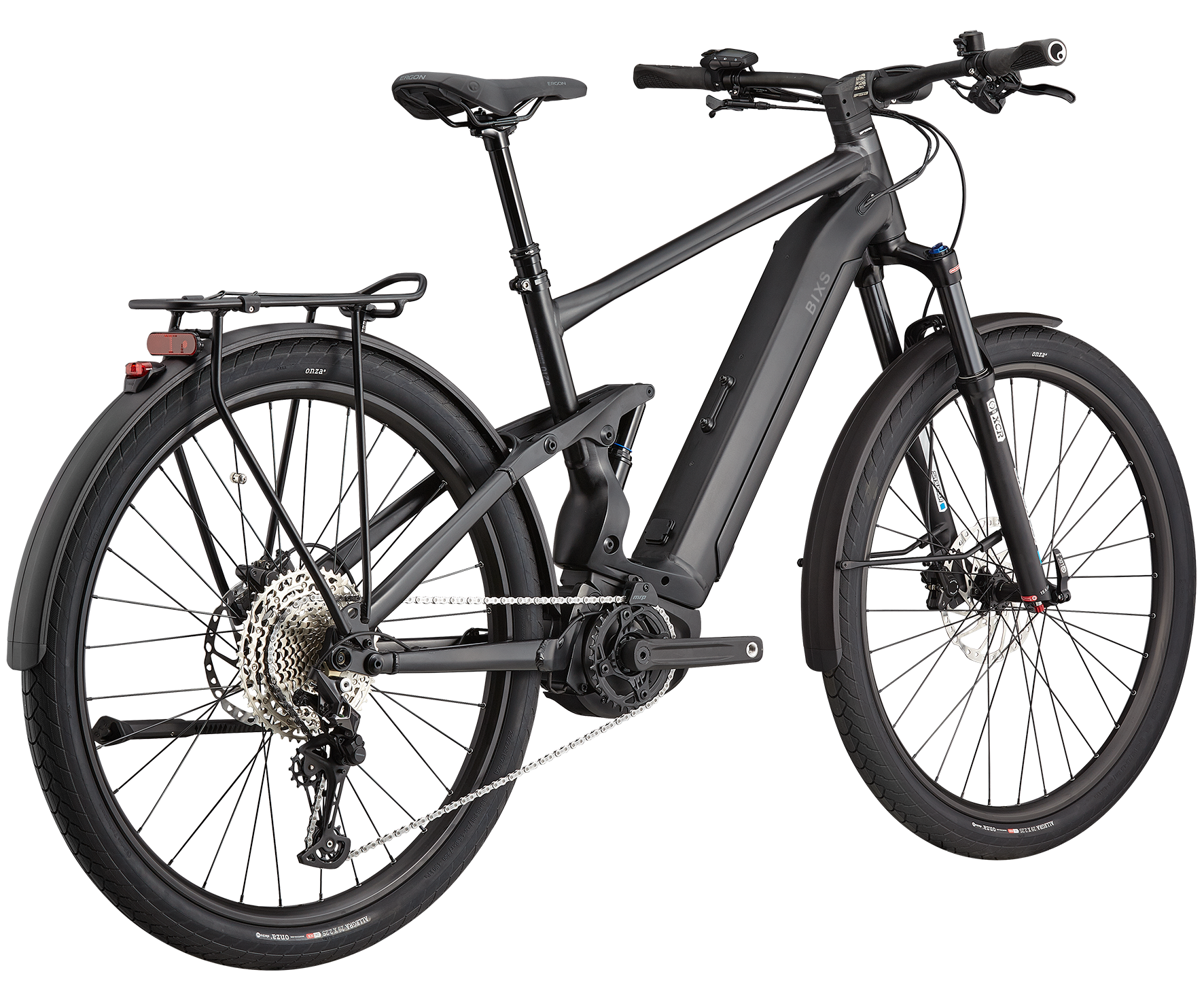

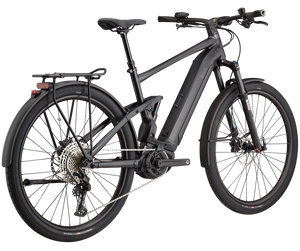

Specifications Access-E10 FS

Frame E-ACTIVE GEOMETRY, ALLOY 6061, 130mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"
Fork SUNTOUR XCR34 AIR 29", LOR, 15x110mm AXLE, TAPERED, 120mm TRAVEL, REBOUND LOCKOUT
Motor YAMAHA PW-X 2 SERIES, 250 WATT
Batteries SIMPLO, 36V, 630Wh
Display YAMAHA Display A
Assistance levels ECO+, ECO, STANDARD, HIGH, EXTRA POWER, AUTOMATIC
E-bike speed 25 km/h
Shock SUNTOUR EDGE LOR, 205X60, TRUNNION MOUNT, HARDWARE: 21.8mmx8mm
Rear derailleur SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift lever SHIMANO DEORE SL-M6100, CLAMP  TYPE
Crankset FSA CK-320/ISIS, 34 TEETH
Cassette SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Chain SHIMANO CN-M6100 12-SPEED
Brakes SHIMANO BR-MT410, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:200mm, R:180mm ROTORS
Brake lever SHIMANO BL-MT401
Rims ALEXRIMS EM-30, 32 HOLES, INNER WIDTH 30mm, 29"
Front hub SHIMANO HB-TC500-15-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Rear hub SHIMANO FH-TC600-MS-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Front tire ONZA ALLEGRA, 29x2.25"
Rear tire ONZA ALLEGRA, 29x2.25"
Stem FSA CABLE INTEGRATION STEM, NS ICR, 31.8mm CLAMP
Handlebar BIXS HB-RB12W RIZER BAR, 760mm, 9°ANGLE, 15mm RISE, 31.8mm
Headset FSA NO.55R 1.5" / ICR / STD
Seat post KIND SHOCK RAGEi, M & L: 125mm, XL: 150mm TRAVEL, SOUTHPAW-ALLOY REMOTE LEVER, 31.6mm
Saddle ERGON SFC30
Headlight SUPERNOVA M99 MINI PURE-25, 450 LUMEN, 150 LUX
Rear light BUSCH & MUELLER REAR LIGHT
Luggage carrier RACKTIME BOOST IT
Mudguards WINGEE, BiXS CUSTOM,  62mm, 29", ALLOY
Weight 28.4 KG

Geometry

Sizes A B C D E F G H I J K L
M 430 611 135 479 74° 68° 1222 40 643 440 340 170
L 480 623 140 479 74° 68° 1234 40 647 450 340 170
XL 520 634 145 479 74° 68° 1246 40 652 460 340 170

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
