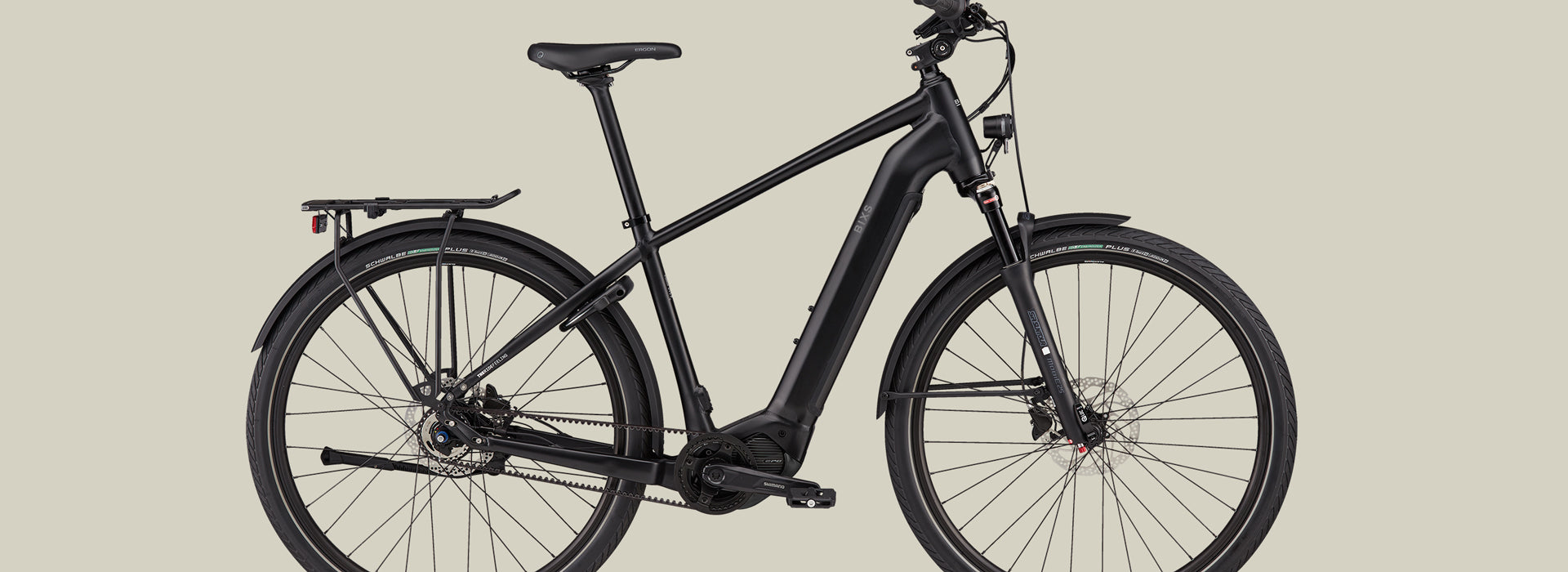

Campus-E

City. Country. River.

Always under power, always on the road. In everyday life you want to get from A to B as fast and comfortably as possible and at the weekend as far as possible around the nearest lake. The BIXS Campus-E is a high-quality electric bike with integrated support and everything you need for a comfortable bike ride. Get on, ride off and arrive relaxed.

Field of application

E-City

Suspension travel

75 mm

Motor

Shimano Steps EP8

Battery

630Wh

Drive for versatile riding pleasure

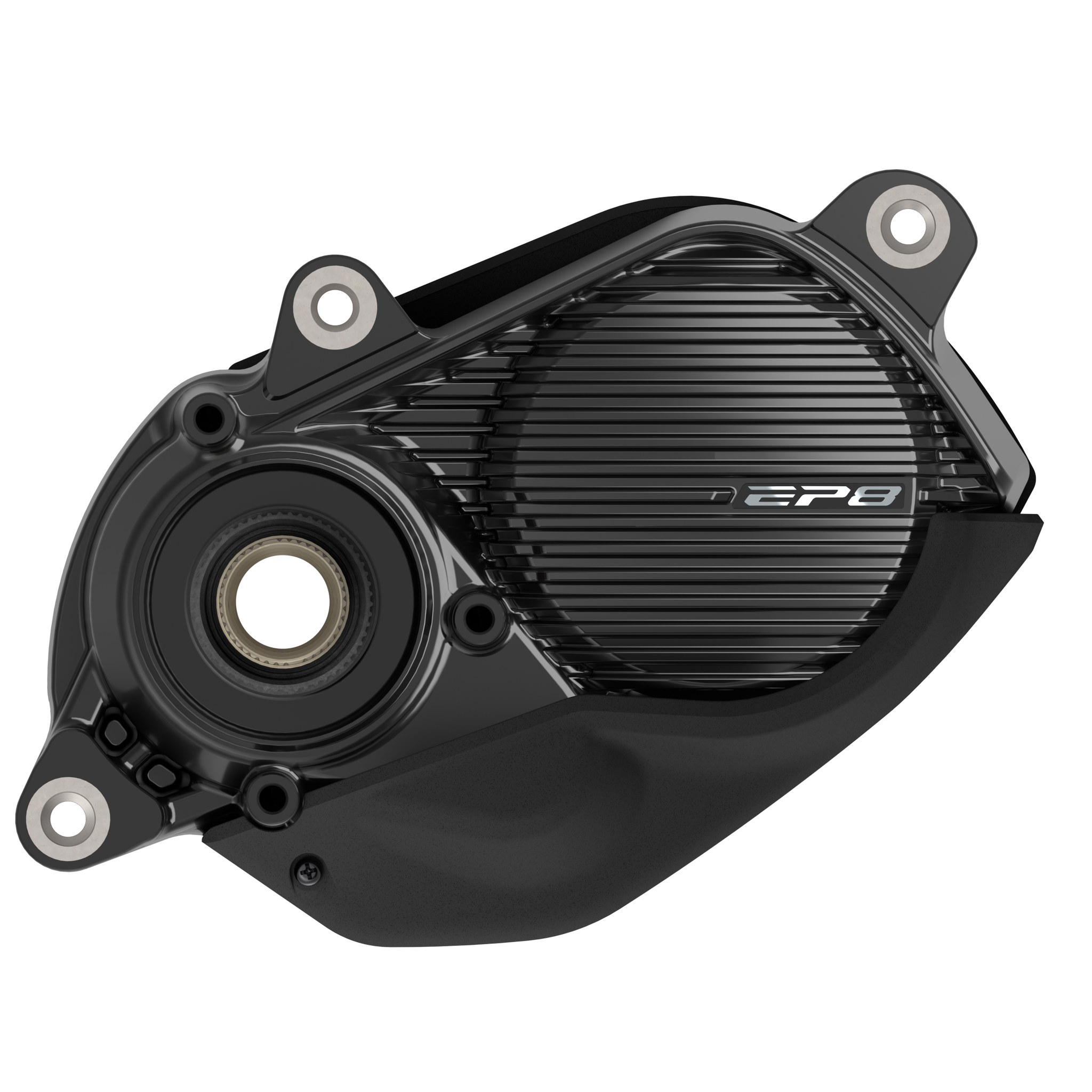

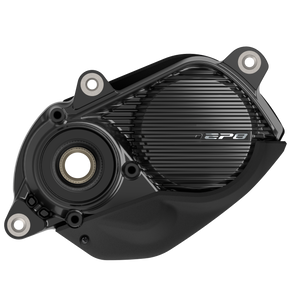

Shimano EP8

With a maximum torque of 85 Nm, the EP8 effortlessly masters the steepest climbs, ideal for commuting or relaxed excursions with a full shopping basket. Its compact dimensions and low weight (2.6 kg) improve the handling. The EP8 offers seamless and direct performance for optimal control and a natural ride feeling. With minimal noise and weather-resistant construction, it is ideal for riding in any weather. Various support modes and adjustment options can be made via the E-TUBE PROJECT Cyclist app.

Darfon 630Wh

The internal battery offers 630 Wh capacity and guarantees maximum power until it is empty. It can be charged directly in the bike by connecting the Smartcharger to the bike charging socket. If you don't have a power connection in the bike cellar, you can easily remove the battery from the frame and charge it at home.

One platform - three frames

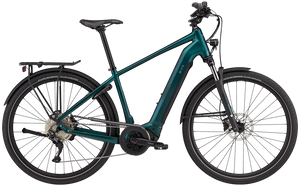

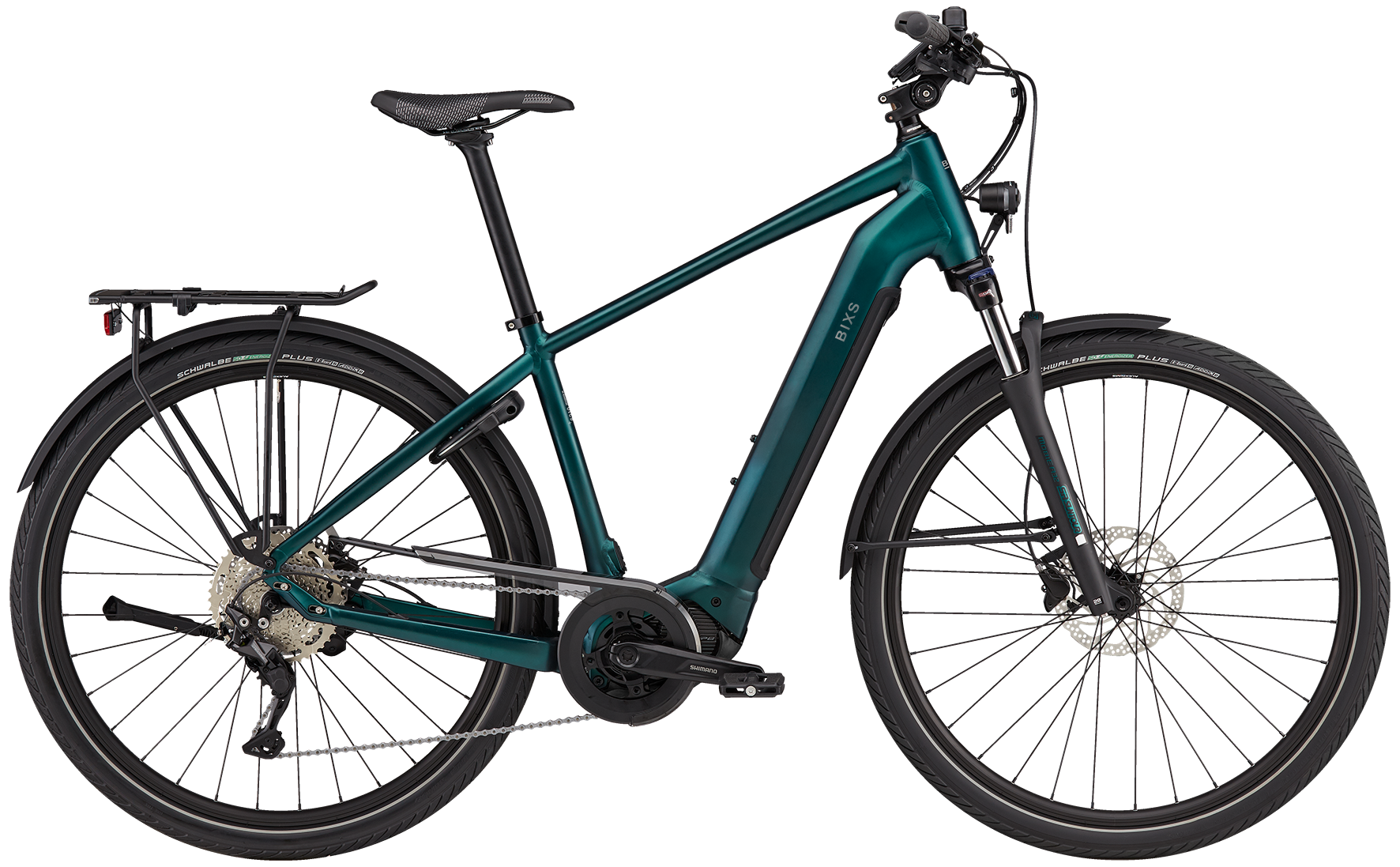

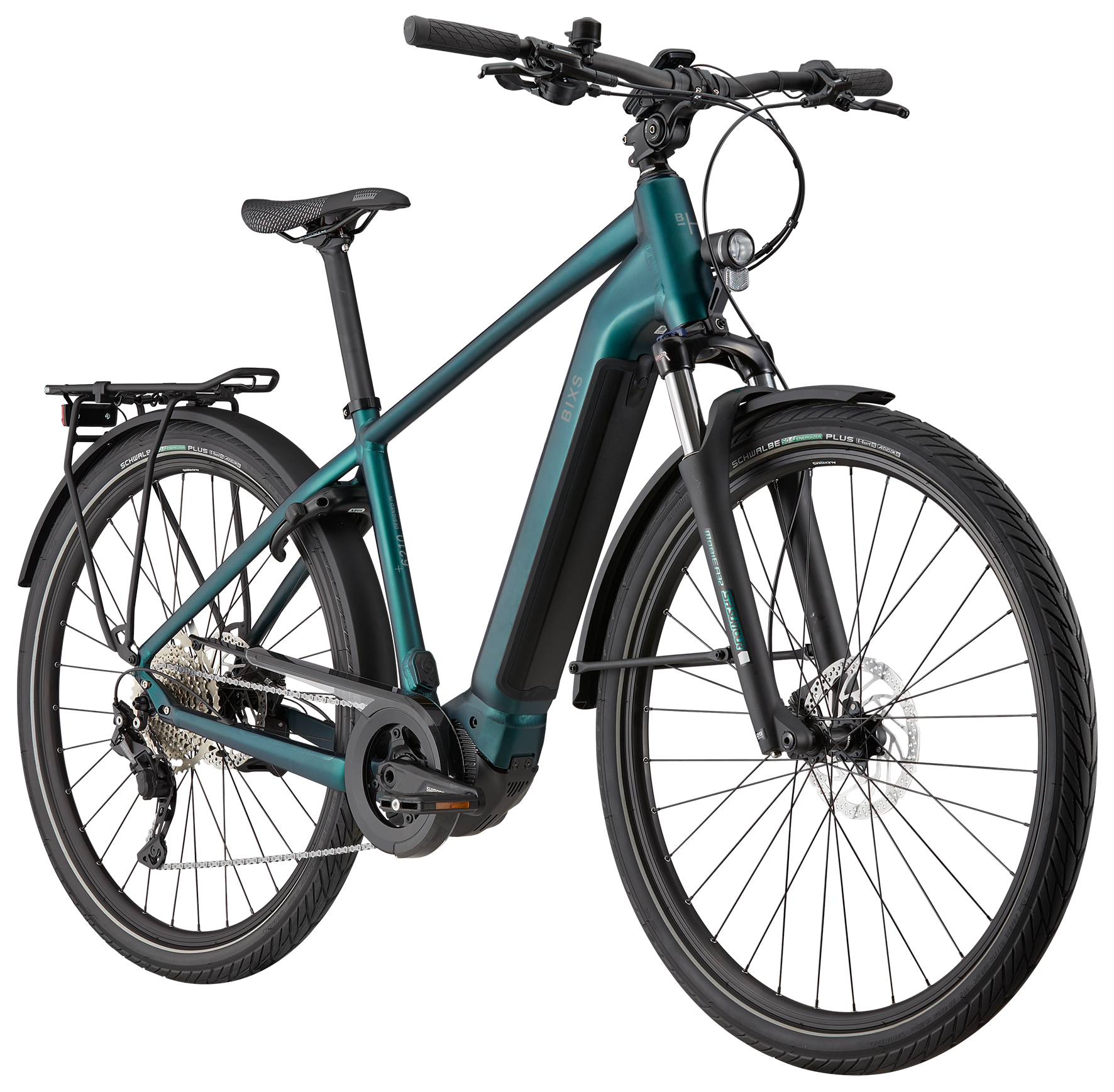

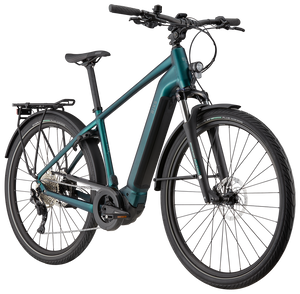

Classic men's frame

The men's frame is traditionally designed and features a horizontal top tube construction. This frame offers a classic aesthetic and a rigid frame structure that ensures stability and strength.

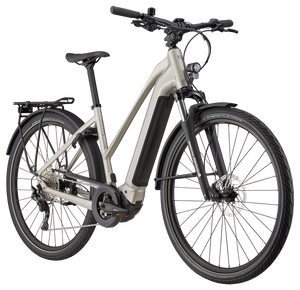

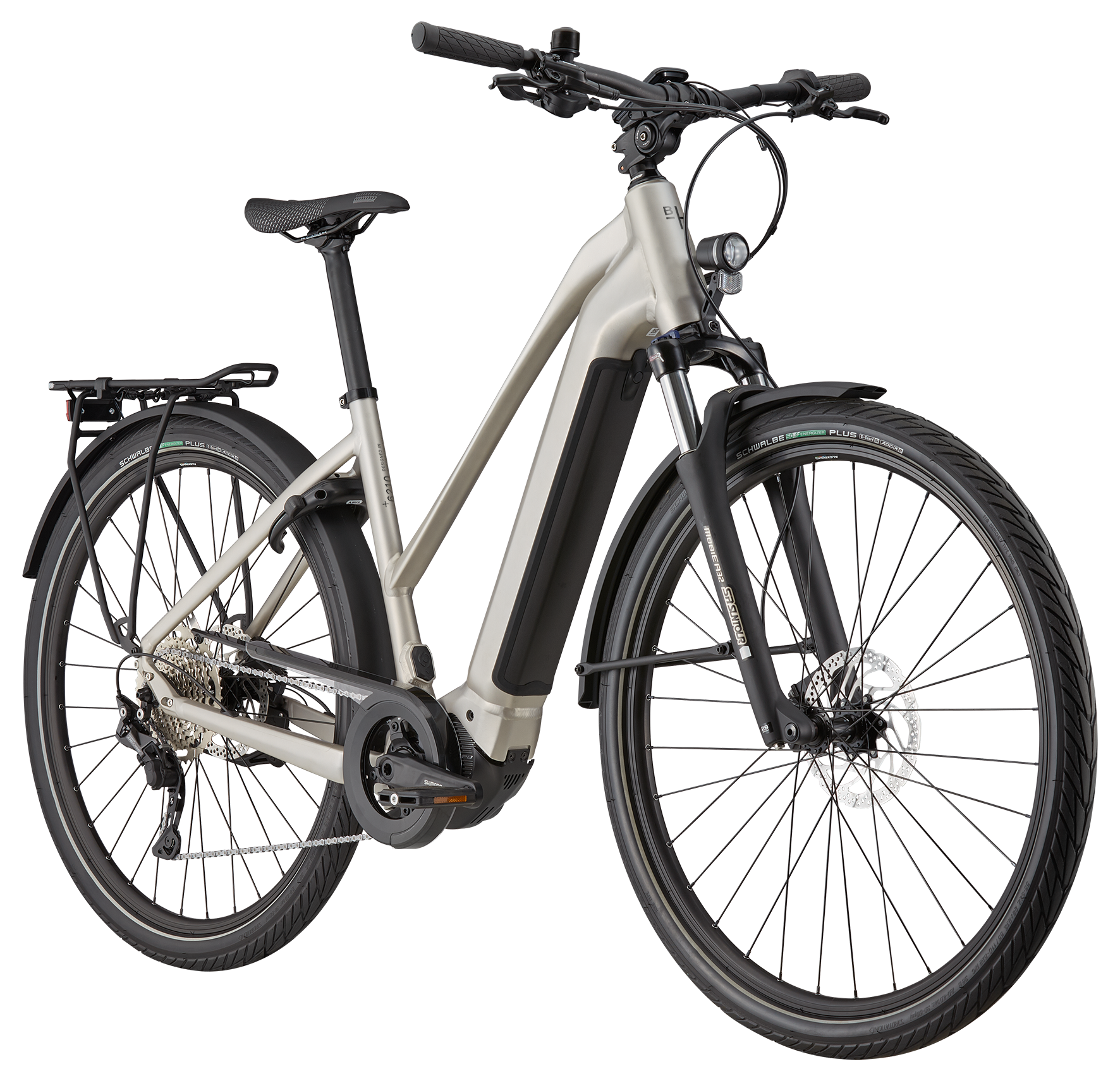

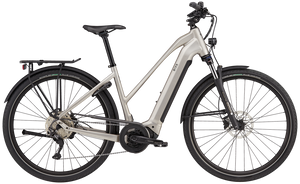

Gor & Deep Instep (DI)

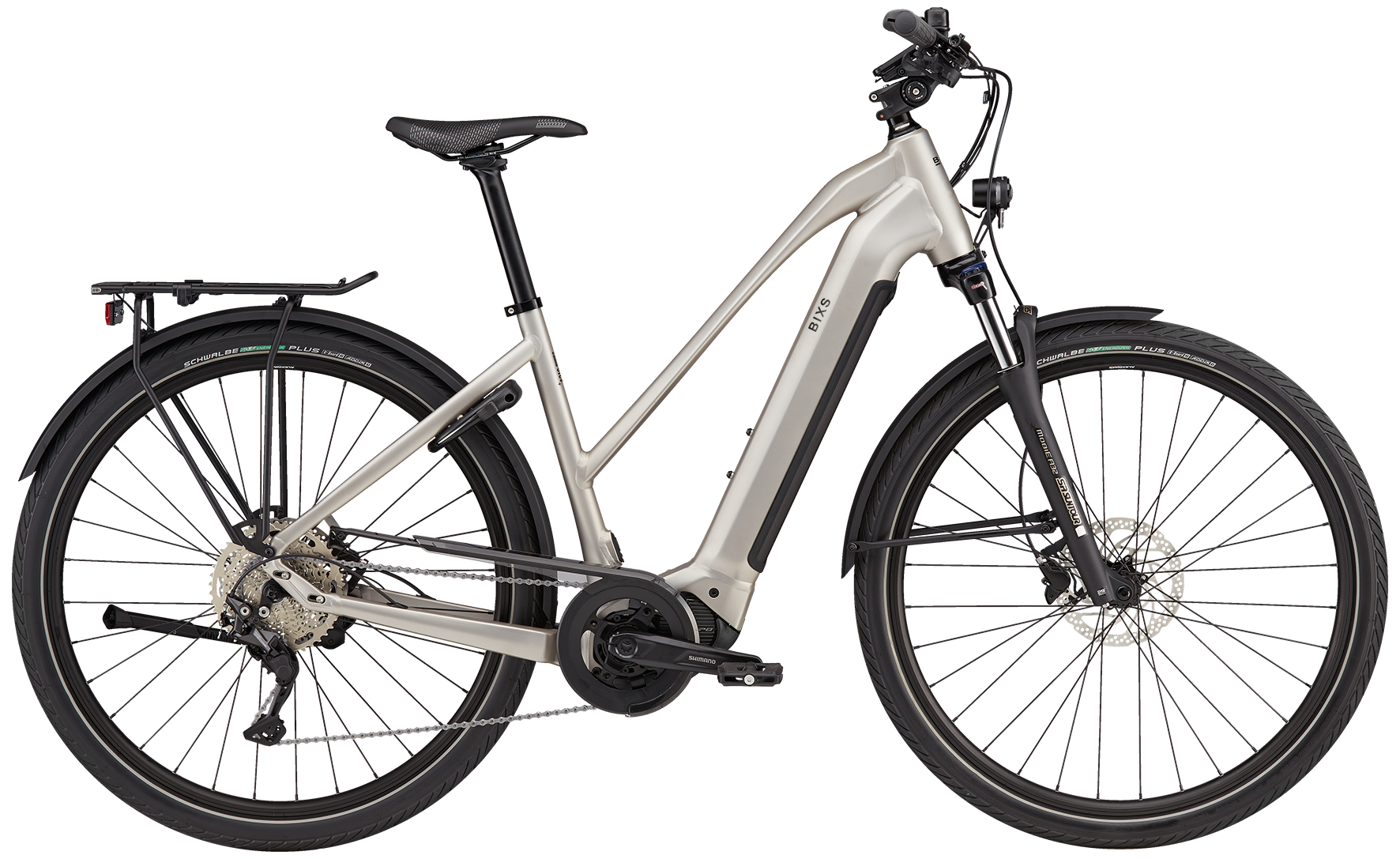

The Gor frame has a slightly lower step-through than the classic men's frame, which makes it easier to get on and off the bike. This frame offers a comfortable and accessible riding position.

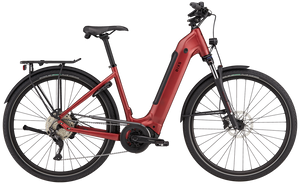

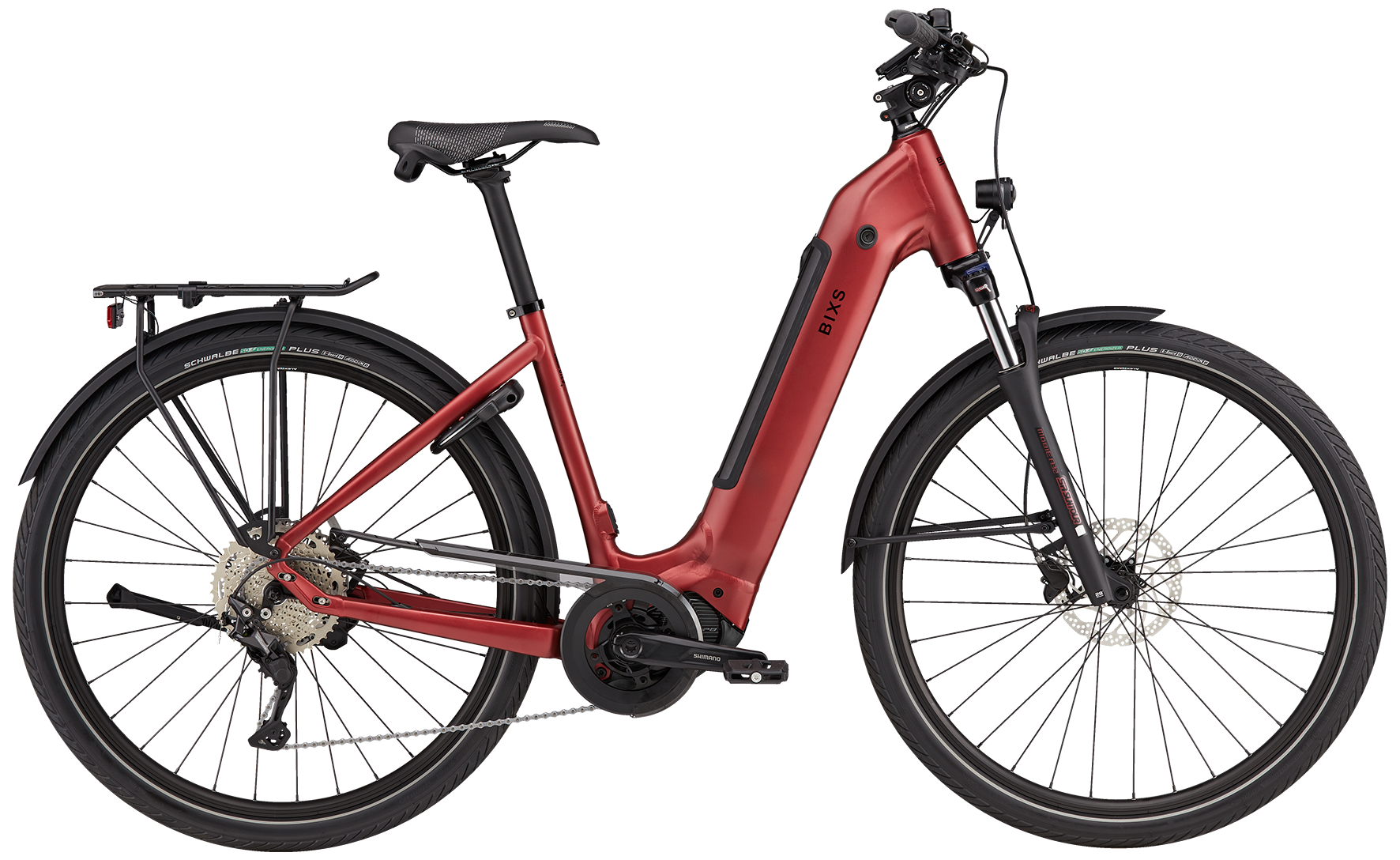

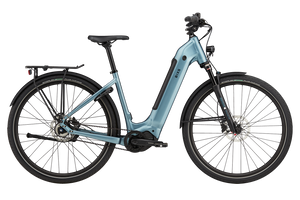

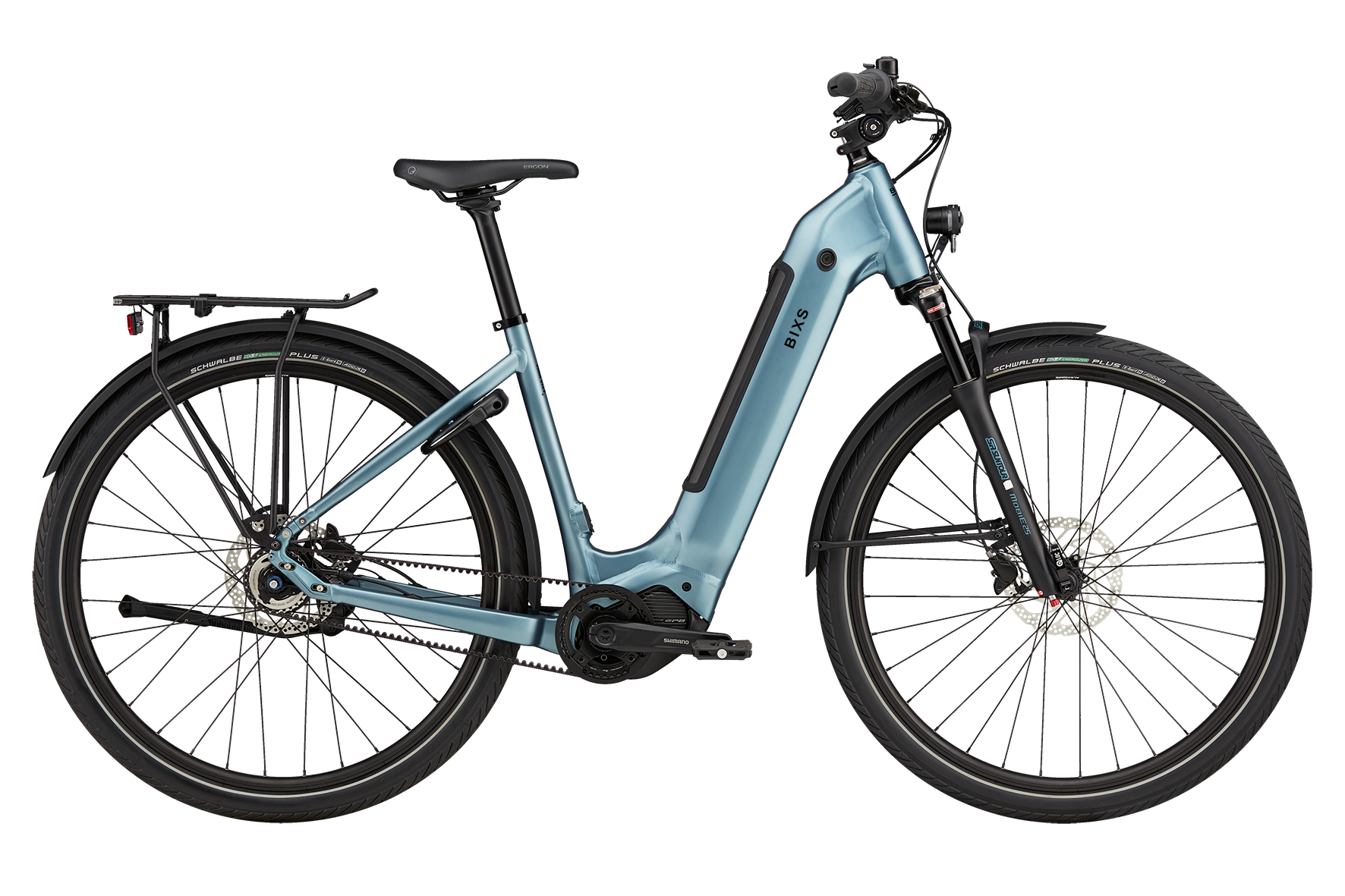

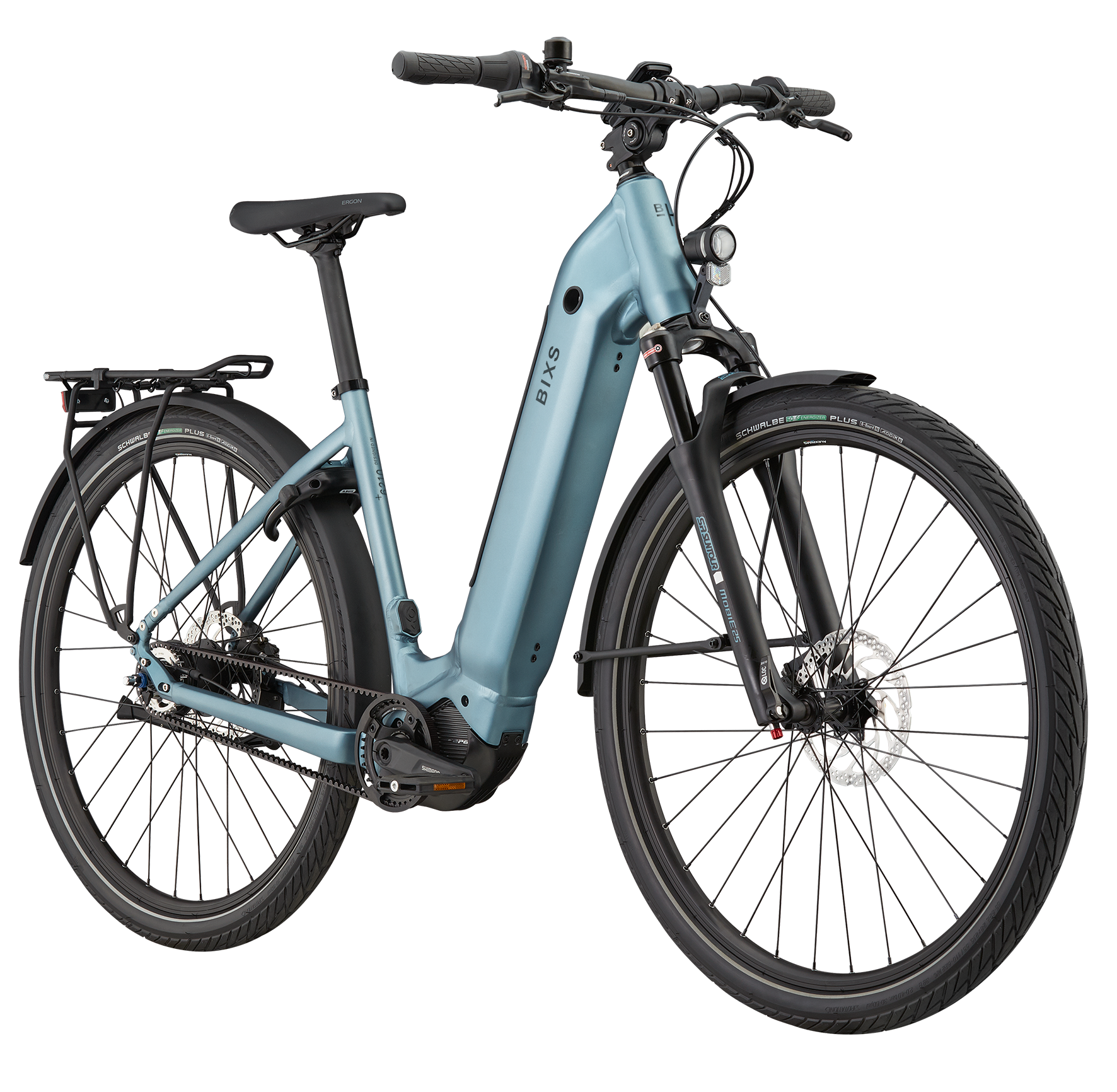

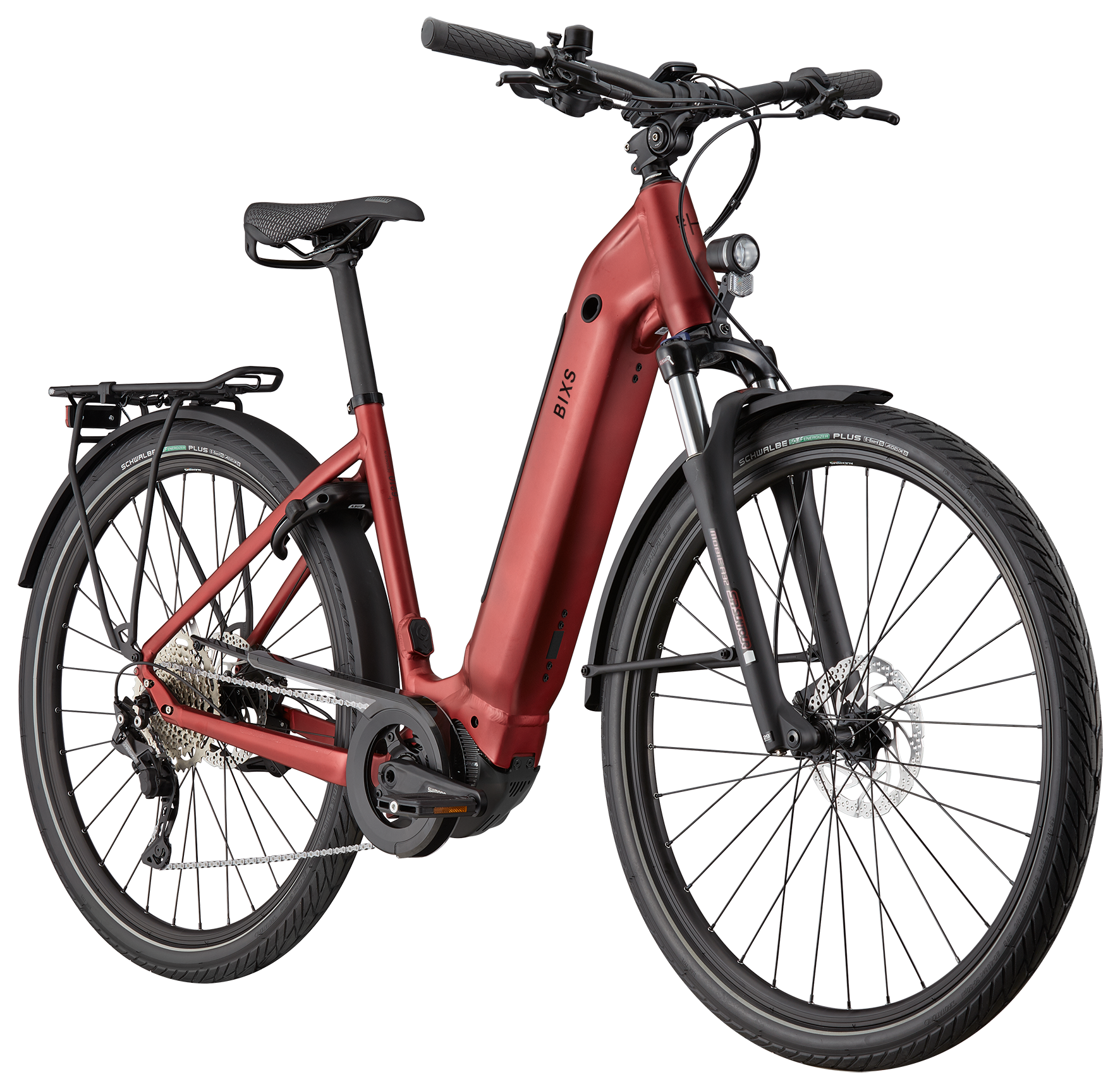

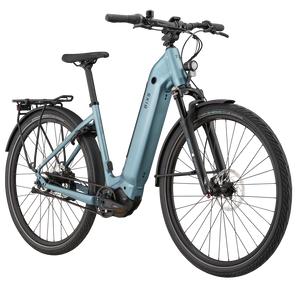

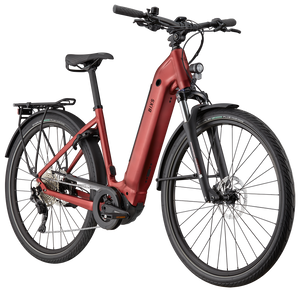

The Deep Instep frame is characterized by an extremely deep step-through, which makes it effortless to get on the bike. This frame offers additional stability and safety when getting on and off the bike.

Geometry

Campus-EX Di / E10 Di / E20 Di / E30 Di

Size	A	B	C	D	E	F	G	H	I	J	K	L
S	440	580	160	480	73°	67°	1147	90	655	379	300	170
M	480	590	170	480	73°	67°	1160	90	665	386	300	170
L	520	600	180	480	73°	67°	1170	90	674	395	300	170
XL	560	620	190	480	73°	67°	1190	110	683	412	300	170

Campus-E10 / E20 / E30

Size	A	B	C	D	E	F	G	H	I	J	K	L
M	430	590	170	460	73°	69°	1146	90	668	411	300	170
L	470	600	180	460	74°	69°	1154	90	678	416	300	170
XL	510	610	190	460	74°	69°	1164	110	686	420	300	170
XXL	550	620	200	460	74°	69°	1174	110	695	430	300	170

Campus-E10 Gor / E20 Gor / E30 Gor

Size	A	B	C	D	E	F	G	H	I	J	K	L
S	440	590	180	460	74°	69°	1136	90	678	405	300	170
M	480	595	180	460	74°	69°	1146	90	678	410	300	170
L	520	600	180	460	74°	69°	1154	90	678	415	300	170

Body height	149 - 163 cm	159 - 178 cm	174 - 188 cm	185 - 200 cm	195 - 210 cm
Frame size	S	M	L	XL	XXL

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
