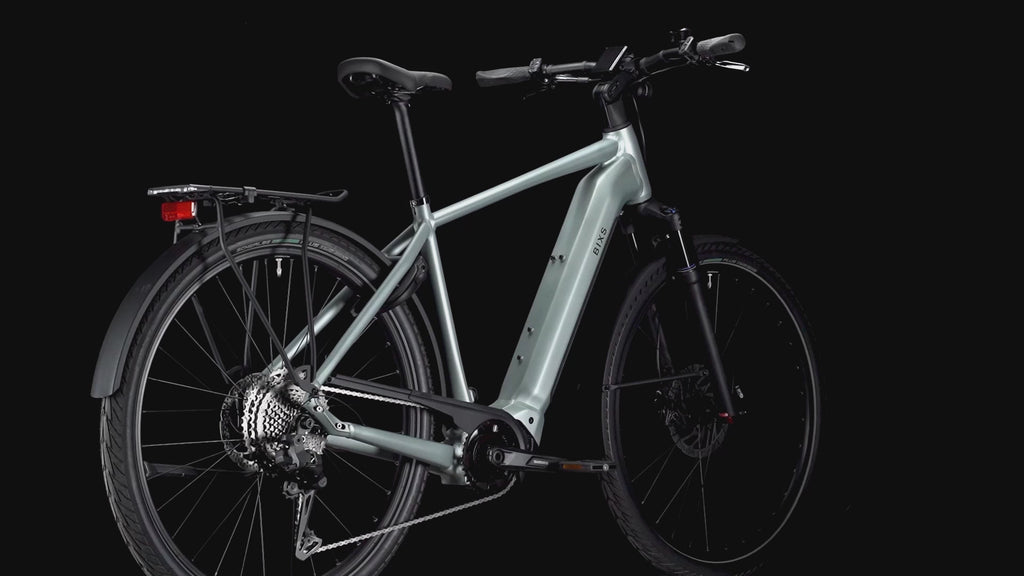

Campus-E10

Always under power, always on the road. You want to get from A to B as fast and comfortably as possible in everyday life and as far as possible around the nearest lake at the weekend. The CAMPUS-E is a high-quality electric bike with integrated support and everything you need for a comfortable bike ride. Powerful Shimano Steps EP-801 motors and 600 Wh batteries. Get on, ride off and arrive relaxed.

CHF 4,790.00

Unit price: per

Pastell Green Metallic

Which size fits me?

Frame sizes
159 – 178 cm cm: M
174 - 188 cm: L
185 - 200 cm: XL
195 – 210 cm: XXL

Where to test and buy?

Tax included. Shipping calculated at checkout.

Campus-E

City - Country - River.

Learn more about the Campus-E +

Specifications Campus-E10

Frame	CAMPUS-E PREMIUM ALLOY HARDTAIL, 12X142MM
Fork	SUNTOUR SF21-MOBBIE34 AIR DS, 80MM TRAVEL, 15X100MM
Motor	SHIMANO EP801, 85NM
Batteries	DARFON 600WH, RANGE EXTENDER CAPABLE
Display	SHIMANO SC-EN610
Rear derailleur	SHIMANO CUES RD-U6070, 11-SPEED, DI2 FREE SHIFT / AUTO SHIFT
Shift lever	SHIMANO SW-EN600-R
Crankset	SHIMANO FC-EM600, CR-ET600, CL50, 38T
Cassette	SHIMANO CUES CS-LG400-11, 11-50T
Chain	SHIMANO CUES CN-LG500
Brakes	SHIMANO BL-MT402-3, BR-MT420 4-PISTON
Brake lever	FRONT: SHIMANO SM-RT30 CENTER LOCK, 203MM / REAR: SHIMANO RT-EM300 CENTER LOCK, 180MM
Rims	ALEXRIMS DM21, 21MM INNER WIDTH
Front hub	SHIMANO HB-TC500-15, 32 HOLES
Rear hub	SHIMANO FH-TC500-HM, 32 HOLES
Front tire	SCHWALBE ENERGIZER PLUS, 700X55C, PERFORMANCE, GREEN-GUARD ADDIX
Rear tire	SCHWALBE ENERGIZER PLUS, 700X55C, PERFORMANCE, GREEN-GUARD ADDIX
Stem	SATORI PYTHON, ANGLE ADJUSTABLE, 31.8MM CLAMP
Handlebar	BIXS RIZER BAR, 15MM RISE, 720MM
Seat post	BIXS SEATPOST, Ø31.6MM, M & L: 350MM, XL & XXL: 400MM
Saddle	BIXS VL-4479
Headlight	LITEMOVE SE-150, 150 LUX
Rear light	HERRMANS H-CARGO LED, INTEGRATED IN CARRIER
Pannier rack	MASSLOAD, MIK SYSTEM
Mudguards	BIXS WIDE ALLOY, 62MM WIDE
Weight	27.2 KG

Geometry

		M	L	XL	XXL
A	Reach	400	418	432	447
B	Stack	662	671	690	708
C	Top Tube	590	610	630	650
D	Seat Tube	480	520	560	600
E	Head Tube	150	160	180	200
F	Fork Length	499	499	499	499
G	Fork Offset	44	44	44	44
H	Chainstay	480	480	480	480
I	Seat Angle	74	74	74	74
J	Head Tube Angle	69	69	69	69
K	BB Drop	72	72	72	72
L	BB Height	300	300	300	300
M	Wheelbase	1148	1169	1191	1213
	Stem Length	90	90	90	110
	Crank Length	170	170	170	170
