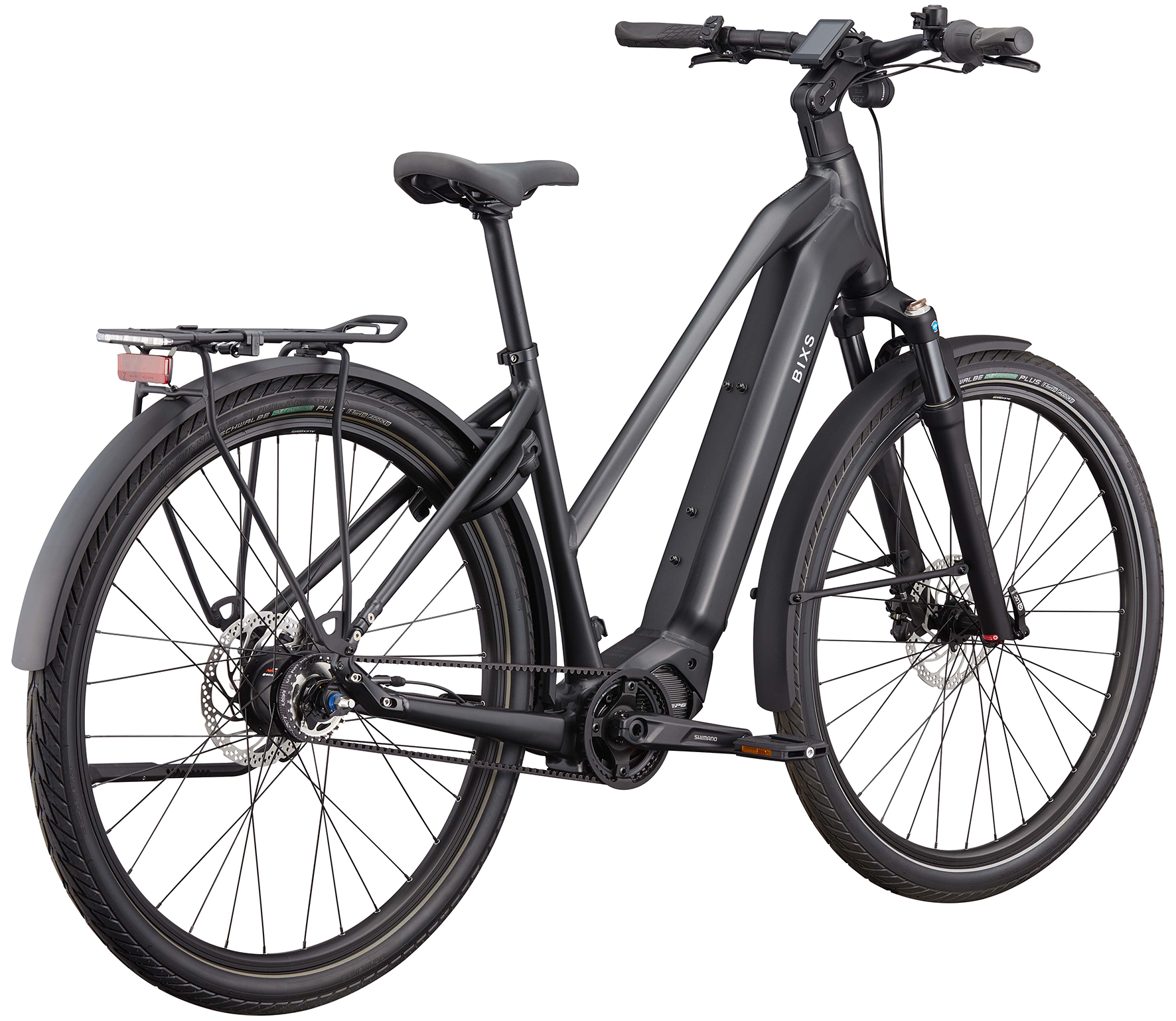

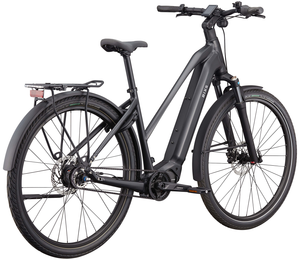

Campus-E20 Gor

Always under power, always on the road. You want to get from A to B as fast and comfortably as possible in everyday life and as far as possible around the nearest lake at the weekend. The Campus-E is a high-quality electric bike with integrated support and everything you need for a comfortable bike ride. Powerful Shimano Steps EP-801 motors and 600 Wh batteries. Get on, ride off and arrive relaxed.

CHF 4,690.00

Unit price: per

Black

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L

Where to test and buy?

Tax included. Shipping calculated at checkout.

Campus-E

City - Country - River.

Learn more about the Campus-E +

Specifications Campus-E20 Gor

Frame	CAMPUS-E PREMIUM ALLOY HARDTAIL, 10X135MM BOLT ON
Fork	SUNTOUR SF21-MOBBIE34-D AIR DS, 80MM TRAVEL, 15X100MM
Motor	SHIMANO EP801, 85NM
Batteries	DARFON 600WH, RANGE EXTENDER CAPABLE
Display	SHIMANO SC-EN610
Rear derailleur	SHIMANO NEXUS HUB GEAR, 5-SPEED
Shift lever	SHIMANO NEXUS SL-C7000-5
Crankset	SHIMANO FC-EM600, GATES CDX, CL45.5, 39T
Cassette	GATES CDX SPROCKET, 28T
Chain	GATES CDX BELT, 122T
Brakes	SHIMANO BL-MT201, BR-MT200 2-PISTON
Brake lever	FRONT: SHIMANO SM-RT30 CENTER LOCK, 180MM / REAR: SHIMANO RT-EM300 CENTER LOCK, 180MM
Rims	ALEXRIMS DM21, 21MM INNER WIDTH
Front hub	SHIMANO HB-TC500-15, 32 HOLES
Rear hub	SHIMANO NEXUS SG-C7000-5D, INTERNAL HUB GEAR
Front tire	SCHWALBE ENERGIZER PLUS, 700X55C, PERFORMANCE, GREEN-GUARD ADDIX
Rear tire	SCHWALBE ENERGIZER PLUS, 700X55C, PERFORMANCE, GREEN-GUARD ADDIX
Stem	SATORI PYTHON, ANGLE ADJUSTABLE, 31.8MM CLAMP
Handlebar	BIXS RIZER BAR, 15MM RISE, 700MM
Seat post	BIXS SEATPOST, Ø31.6MM, 350MM
Saddle	BIXS VL-4479
Headlight	LITEMOVE SE-110, 110 LUX
Rear light	HERRMANS H-CARGO LED, INTEGRATED IN CARRIER
Pannier rack	MASSLOAD, MIK SYSTEM
Mudguards	BIXS WIDE ALLOY, 62MM WIDE
Weight	27.3 KG

Geometry

		S	M	L
A	Reach	379	384	389
B	Stack	690	690	690
C	Top Tube	590	595	600
D	Seat Tube	440	480	520
E	Head Tube	180	180	180
F	Fork Length	499	499	499
G	Fork Offset	44	44	44
H	Chainstay	480	480	480
I	Seat Angle	73	73	73
J	Head Tube Angle	69	69	69
K	BB Drop	72	72	72
L	BB Height	300	300	300
M	Wheelbase	1138	1143	1148
	Stem Length	65	90	90
	Crank Length	170	170	170
