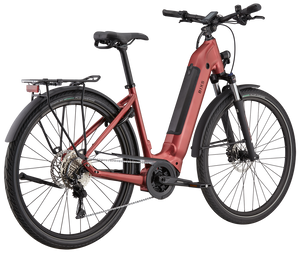

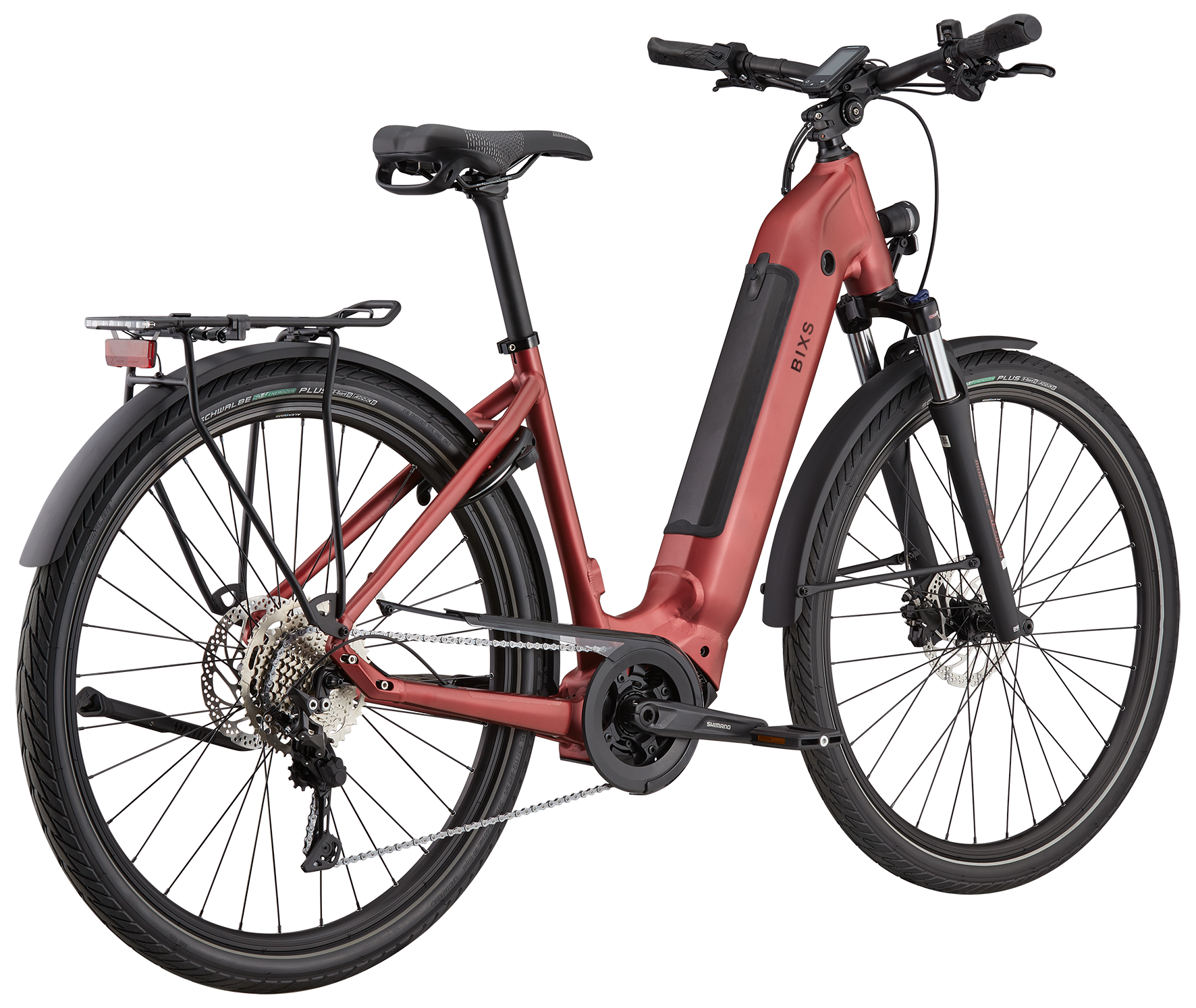

Campus-E30 DI

Always under power, always on the road. You want to get from A to B as fast and comfortably as possible in everyday life and as far as possible around the nearest lake at the weekend. The CAMPUS-E is a high-quality electric bike with integrated support and everything you need for a comfortable bike ride. Powerful Shimano Steps EP-8 motors and 630 or 500 Wh batteries. Get on, ride off and arrive relaxed.

CHF 3,990.00

Unit price: per

Dark Berry

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L

Where to test and buy?

Tax included. Shipping calculated at checkout.

Campus-E

City - Country - River.

Learn more about the Campus-E +

Specifications Campus-E30 DI

Frame	E-TOURING CONCEPT, ALLOY 6061, DEEP INSTEP 700C
Fork	SUNTOUR MOBIE A32 COIL 700C, LO, 15x100mm AXLE, TAPERED, 75mm TRAVEL, LOCKOUT
Motor	SHIMANO STEPS EP8, 250 WATT
Batteries	DARFON, 36V, 500Wh
Display	SHIMANO SC-E6100
Assistance levels	SHIMANO STEPS EP8, 250 WATT
E-bike speed	25 km/h
Rear derailleur	SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED
Shift lever	SHIMANO SL-M4100, WITH OPTICAL GEAR DISPLAY
Crankset	SHIMANO STEPS FC-EM600, 38 TEETH
Pedal	VP 831, INLEAD GRIP TREAD
Cassette	SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED
Chain	KMC E10T EPT TURBO POWER
Brakes	SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake lever	SHIMANO BL-MT201
Rims	ALEXRIMS DM-21, 32 HOLES, INNER WIDTH 21mm, 700C
Front hub	SHIMANO HB-TC500-15, 32 HOLES, 15x100mm THRU AXLE
Rear hub	SHIMANO FH-QC400-HM, 32 HOLES, QR
Front tire	SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Rear tire	SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Stem	BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP
Handlebar	BIXS HB-RB12L RIZER BAR, 700mm, 15°ANGLE, 25mm RISE, 31.8mm
Headset	FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat post	BIXS SP-3D2, 350mm, 31.6mm
Saddle	BIXS VL-6470
Headlight	TRELOCK BIKE-I AIRFLOW, LS-780 LED, 70 LUX
Rear light	HERRMANS INTEGRATED REAR LIGHT ON CARRIER
Luggage carrier	MASSLOAD BIXS CUSTOM WITH INTEGRATED REAR LIGHT
Mudguards	BIXS ALLOY FENDER, 62mm WIDE, 700C
Weight	27.5 KG

Geometry

Size	A	B	C	D	E	F	G	H	I	J	K	L
S	440	590	180	480	73°	69°	1137	90	688	379	300	170
M	480	595	180	480	73°	69°	1144	90	688	385	300	170
L	520	600	180	480	73°	69°	1150	100	688	391	300	170

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
