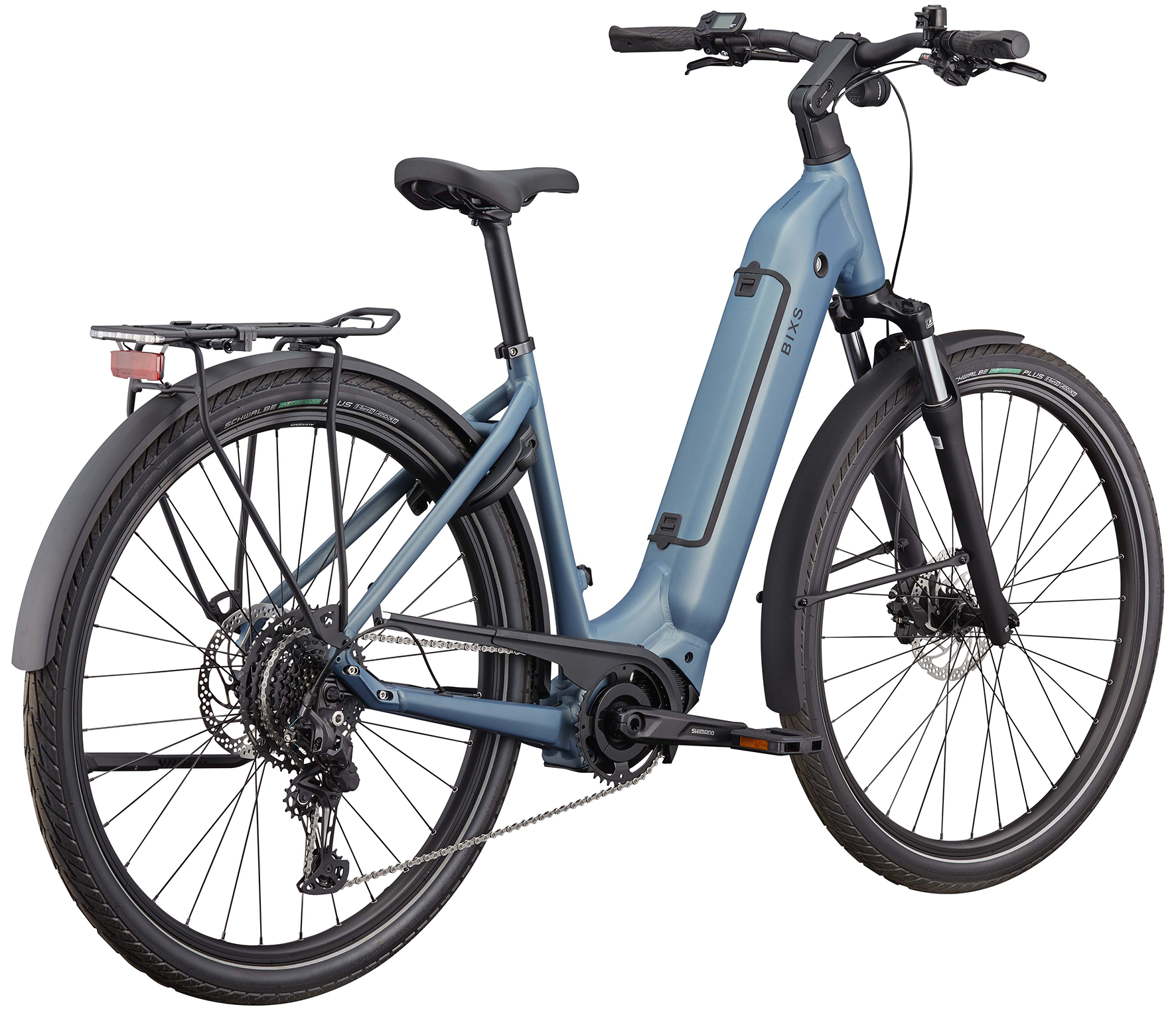

Campus-E40 DI (Sale)

With the bikes of the CAMPUS E series, commuters, students and anyone else who needs reliable mobility can get from A to B quickly and safely at any time. They are the classic city e-bikes for fast transportation in urban areas and provide support of up to 25 km/h. The CAMPUS E series offers functionality at the highest level. Everything you need for everyday cycling is included - be it mudguards, a powerful lighting system or the integrated frame lock. Each model comes with a suspension fork. So curbs or off-road excursions can be mastered comfortably.

CHF 2,990.00 ~~CHF 3,590.00~~

Unit price: per

Khaki

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L

Where to test and buy?

Campus-E

City - Country - River.

Learn more about the Campus-E +

Specifications Campus-E40 DI

Frame	E-TOURING CONCEPT, ALLOY 6061, DI 700C
Fork	SUNTOUR NVX30, 700C, TAPERED, QR, 75mm TRAVEL
Motor	SHIMANO STEPS DU-E6100, 250 WATT
Batteries	DARFON, 36V, 500Wh
Display	SHIMANO SC-E6100
Assistance levels	ECO, NORMAL, HIGH
E-bike speed	25 km/h
Rear derailleur	SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED
Shift lever	SHIMANO DEORE SL-M4100, WITH OPTICAL GEAR DISPLAY
Crankset	SHIMANO STEPS FC-E6100, 38 TEETH
Pedal	VP 836
Cassette	SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED
Chain	SHIMANO CN-E6090-10 E-Bike
Brakes	SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake lever	SHIMANO BL-MT201
Front hub	SHIMANO HB-RM35, 32 HOLES, QR
Rear hub	SHIMANO FH-RM35, 32 HOLES, QR
Front tire	SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Rear tire	SCHWALBE ENERGIZER PLUS, PERFORMANCE, GREEN-GUARD ADDIX 700x55C
Stem	BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP
Handlebar	BIXS HB-RB12L RIZER BAR, 700mm, 15°ANGLE, 25mm RISE, 31.8mm
Headset	FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat post	BIXS SP-3D2, 350mm, 31.6mm
Saddle	BIXS VL-6470
Rear light	HERRMANS INTEGRATED REAR LIGHT ON CARRIER
Luggage carrier	MASSLOAD BIXS CUSTOM WITH INTEGRATED REAR LIGHT
Mudguards	BIXS ALLOY FENDER, 62mm WIDE, 700C
Weight	28.2 KG

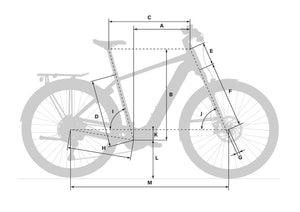

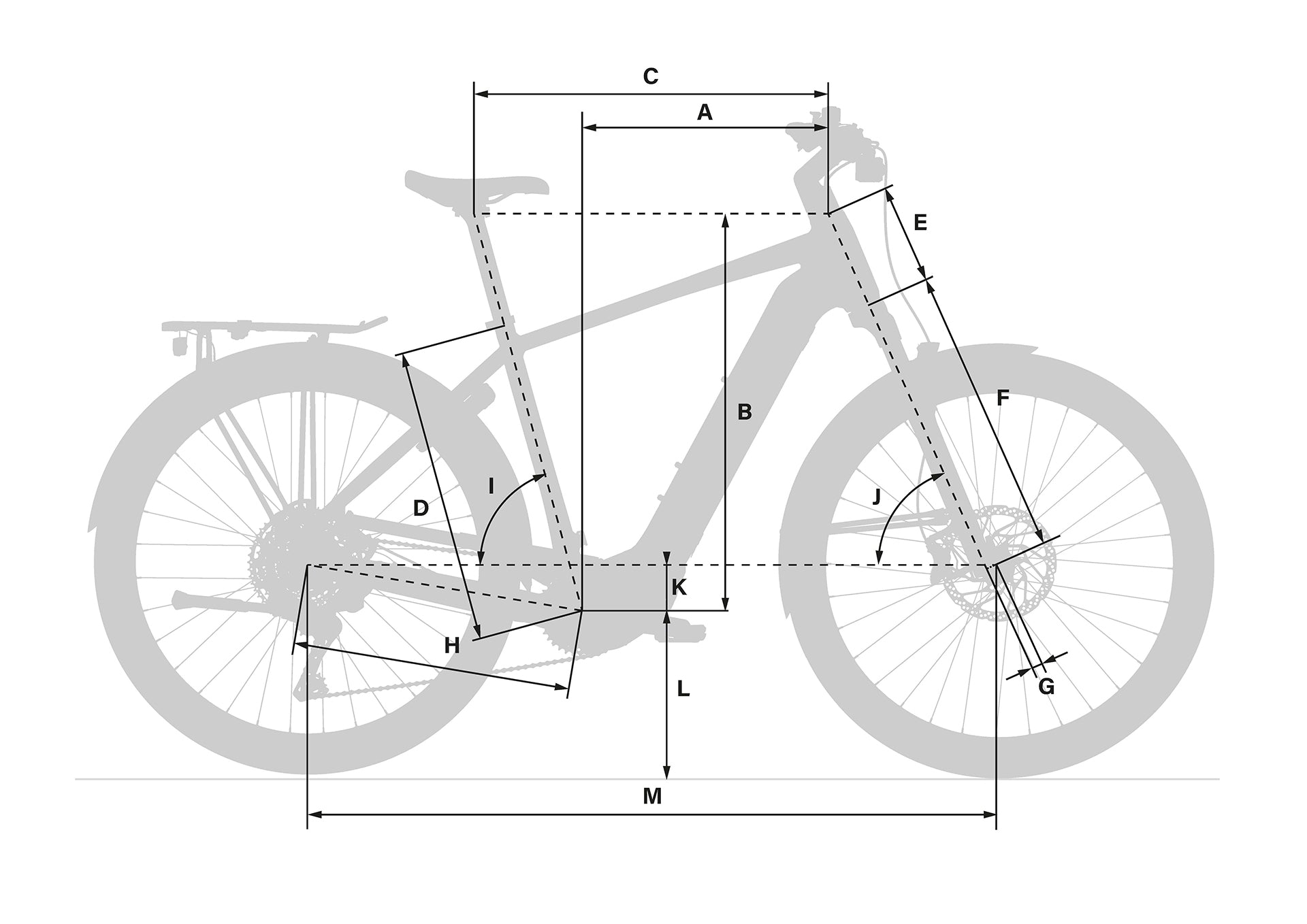

Geometry

Size	A	B	C	D	E	F	G	H	I	J	K	L
S	440	590	180	480	73°	69°	1137	90	688	379	300	170
M	480	595	180	480	73°	69°	1144	90	688	385	300	170
L	520	600	180	480	73°	69°	1150	100	688	391	300	170

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
