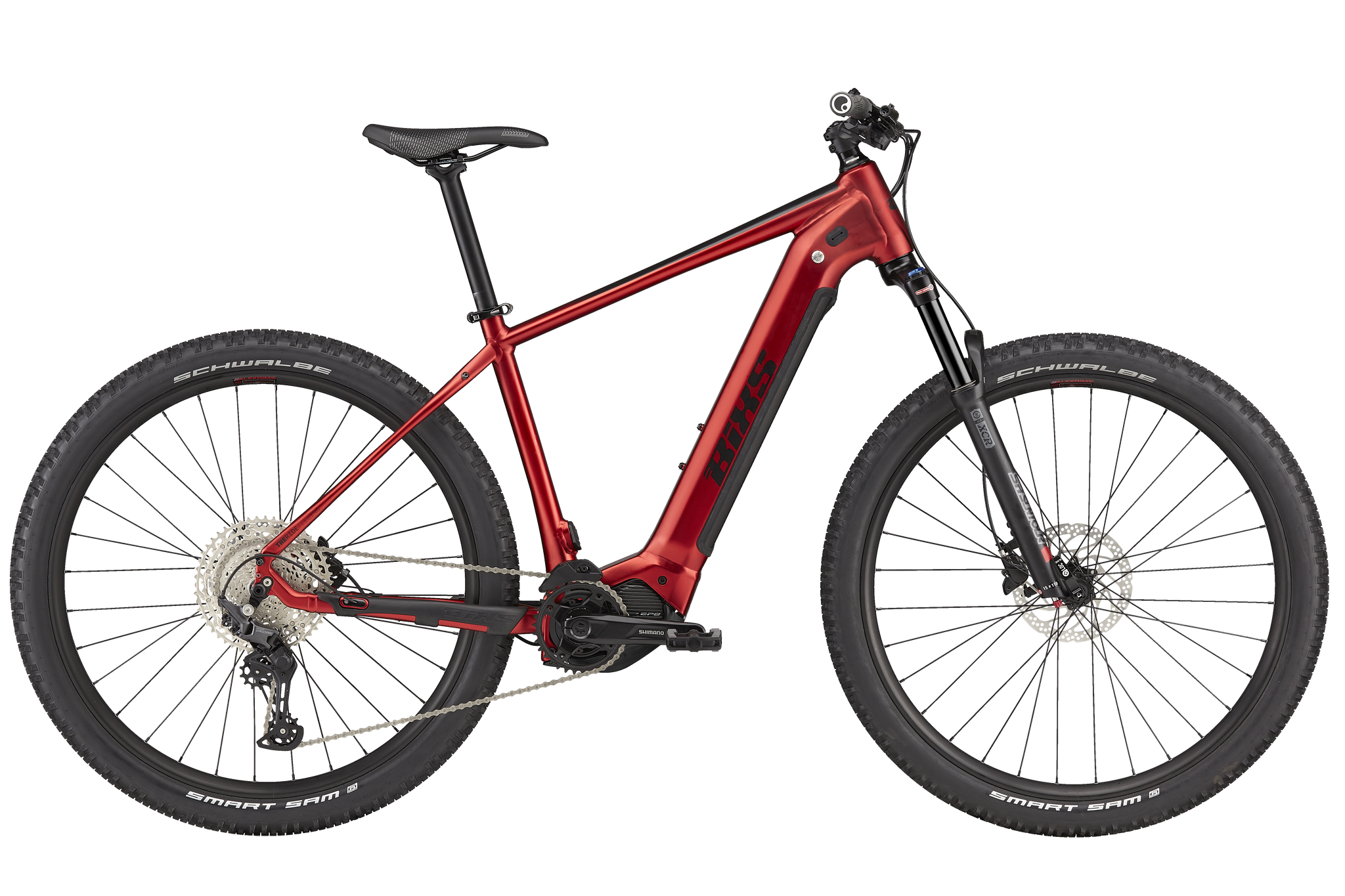

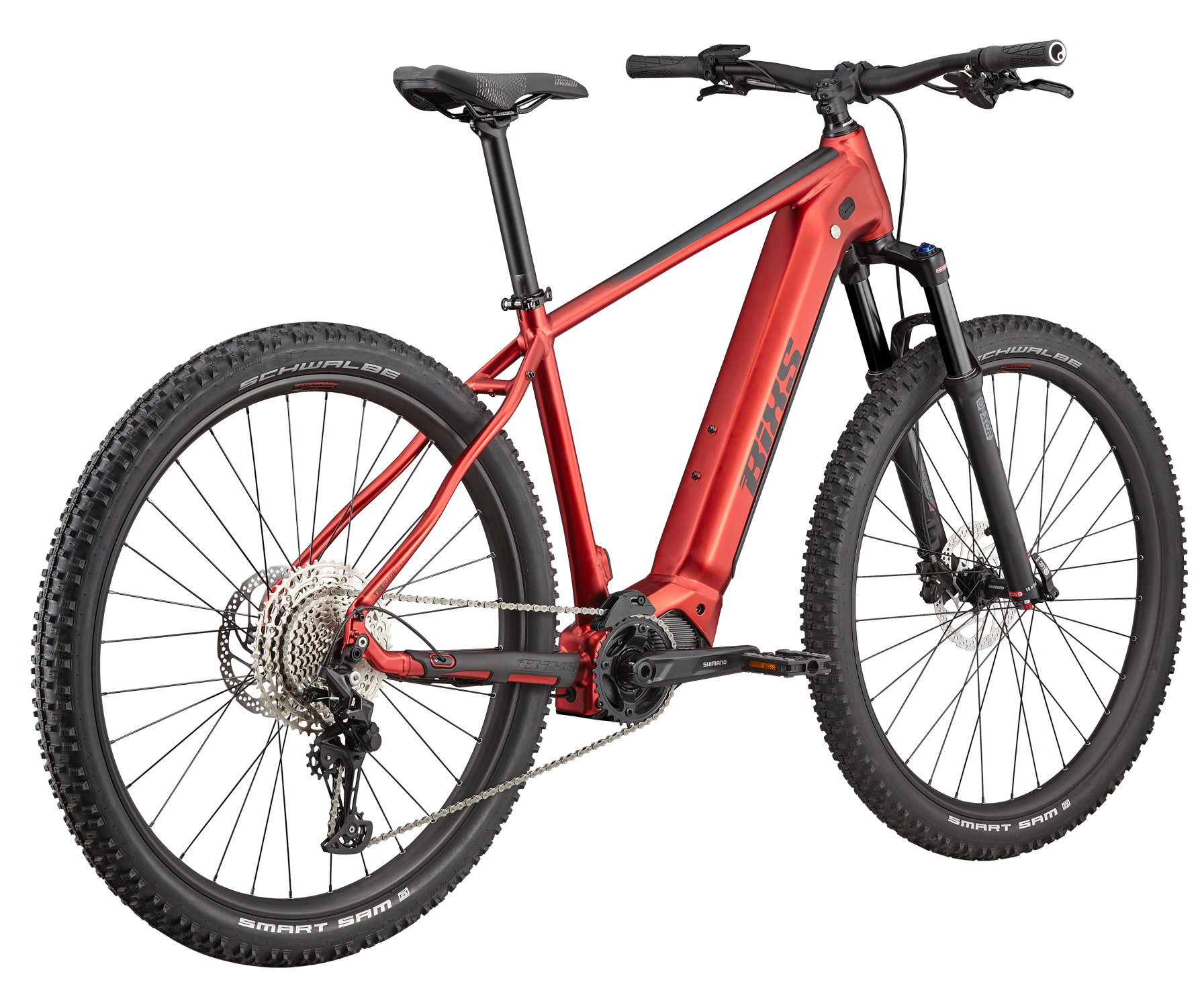

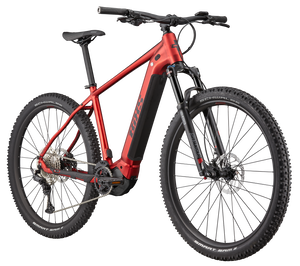

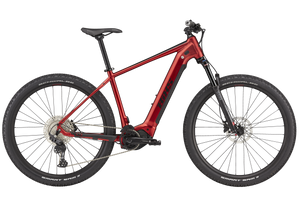

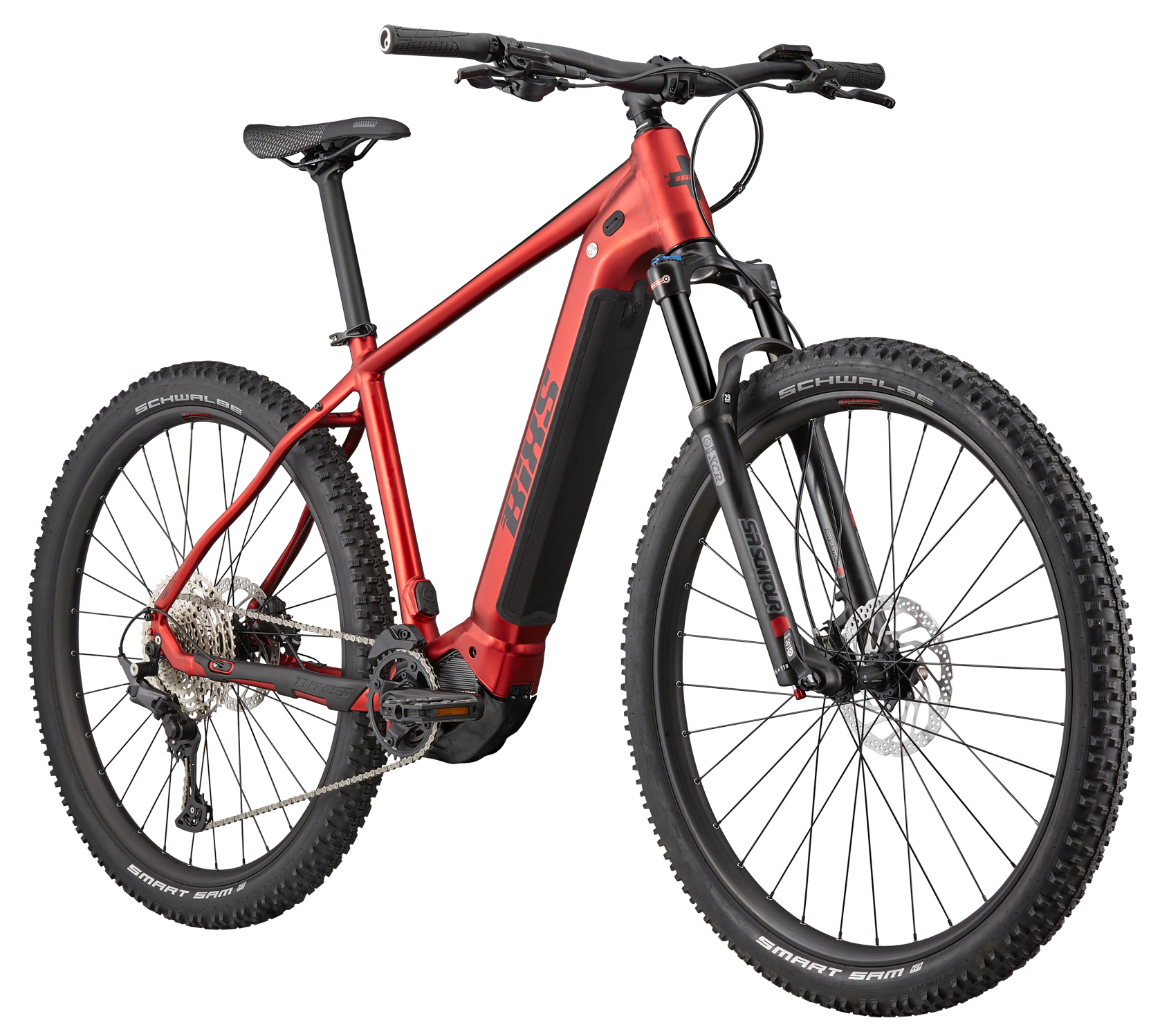

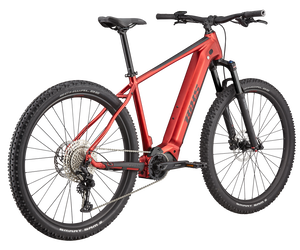

Specifications Core-E22

Frame E-SPORT GEOMETRY, ALLOY 6061 HYDROFORMED D.B. TUBES, HARDTAIL, DROPOUT 148x12mm BOOST, 29"
Fork SUNTOUR XCR34 AIR LO-R 29", BOOST, TAPERED, AIR SPRING, 120mm TRAVEL, REBOUND, LOCKOUT
Motor SHIMANO STEPS EP8, 250 WATT
Batteries DARFON, 36V, 500Wh
Display SHIMANO SC-E5003
Assistance levels ECO, TRAIL, BOOST
E-bike speed 25 km/h
Rear derailleur SHIMANO DEORE RD-M5100 SGS SHADOW PLUS DESIGN, 11-SPEED
Shift lever SHIMANO DEORE SL-M5100, WITH OPTICAL GEAR DISPLAY
Crankset SHIMANO STEPS FC-EM600, 34 TEETH
Pedal VPE-857
Cassette SHIMANO CS-M5100, 11-51 THEETH, 11-SPEED
Chain SHIMANO CN-HG701-11
Brakes SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake lever SHIMANO BL-MT201
Front hub SHIMANO HB-MT400-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Rear hub SHIMANO FH-MT400-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Front tire SCHWALBE SMART SAM PERFORMANCE, ADDIX, 29x2.6"
Rear tire SCHWALBE SMART SAM PERFORMANCE, ADDIX, 29x2.6"
Stem BIXS 0°ANGLE, 35mm CLAMP
Handlebar BIXS RIZER BAR, 760mm, 9° BACKSWEEP, 15mm RISE, 35mm
Headset FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat post BIXS, S & M: 350mm, OTHERS: 400mm, 31.6mm
Saddle BIXS VL-3533
Weight 22.7 KG

Geometry

Size A B C D E F G H I J K L
S 380 590 135 470 74° 67° 1175 35 660 401 315 165
M 430 595 140 470 74° 67° 1180 50 665 405 315 165
L 480 600 145 470 74° 67° 1186 50 670 410 315 165
XL 530 630 150 470 74° 67° 1216 50 675 437 315 165

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
