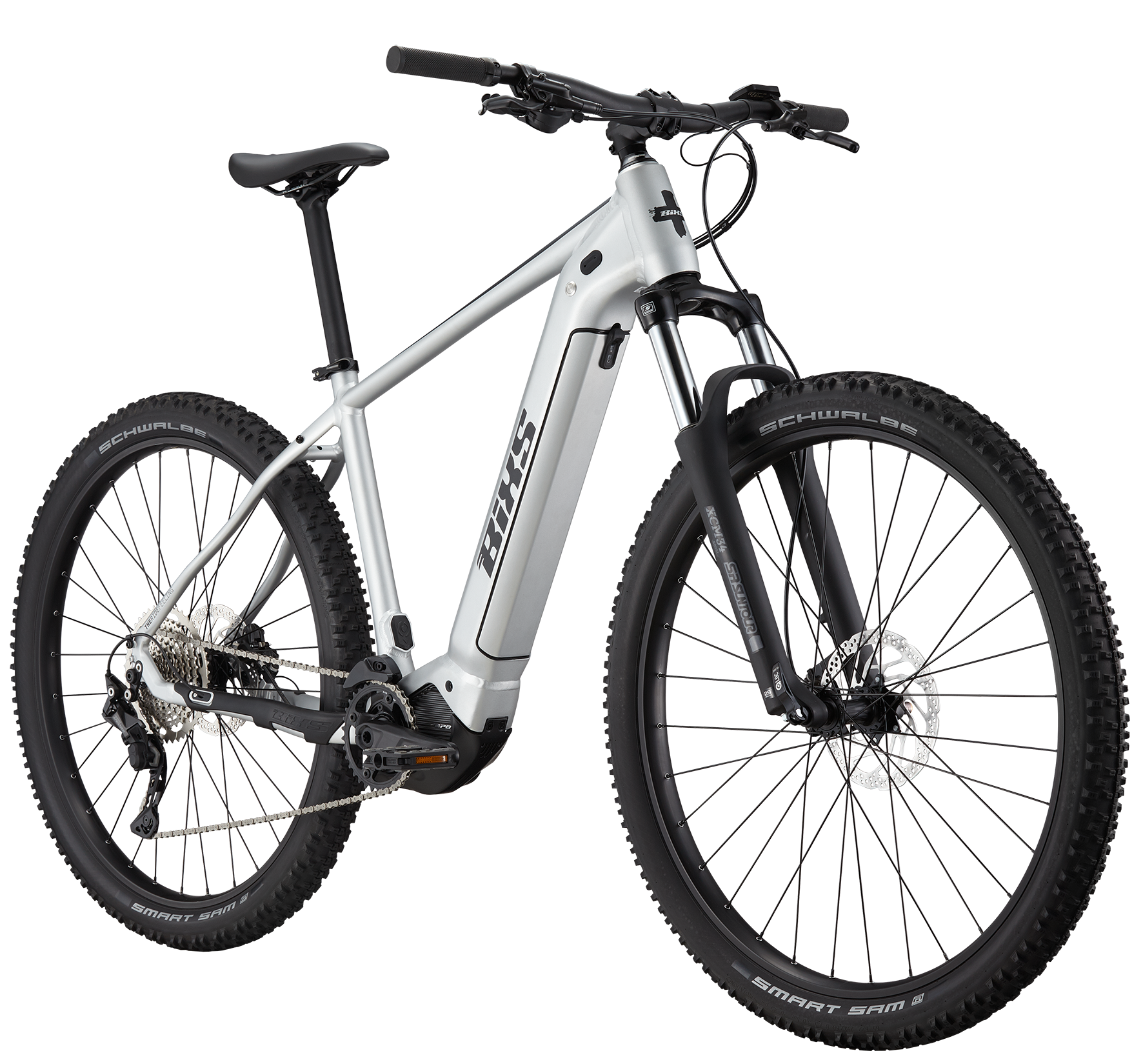

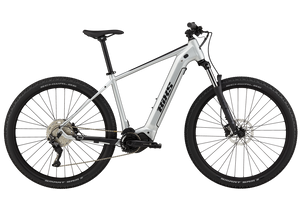

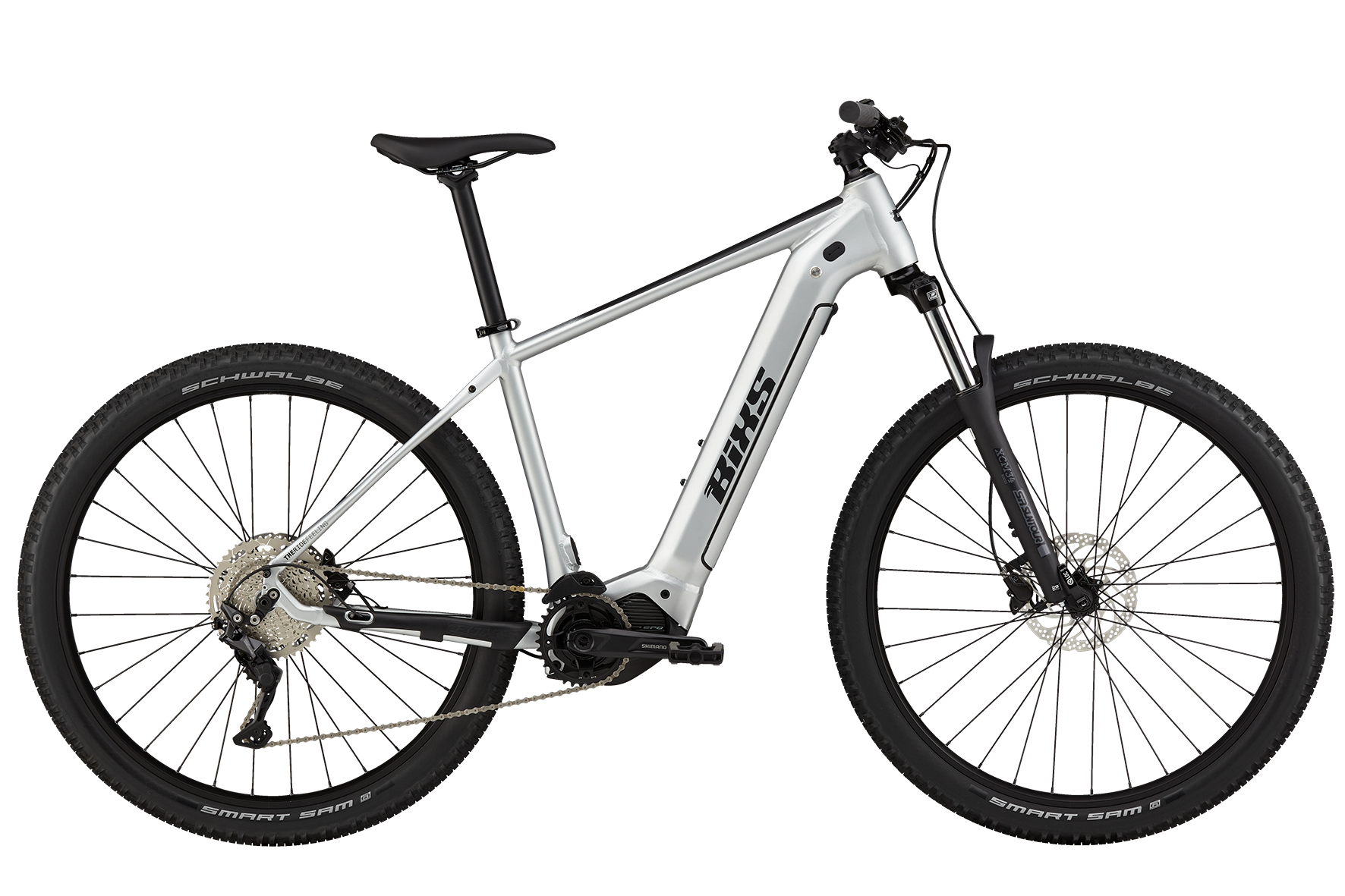

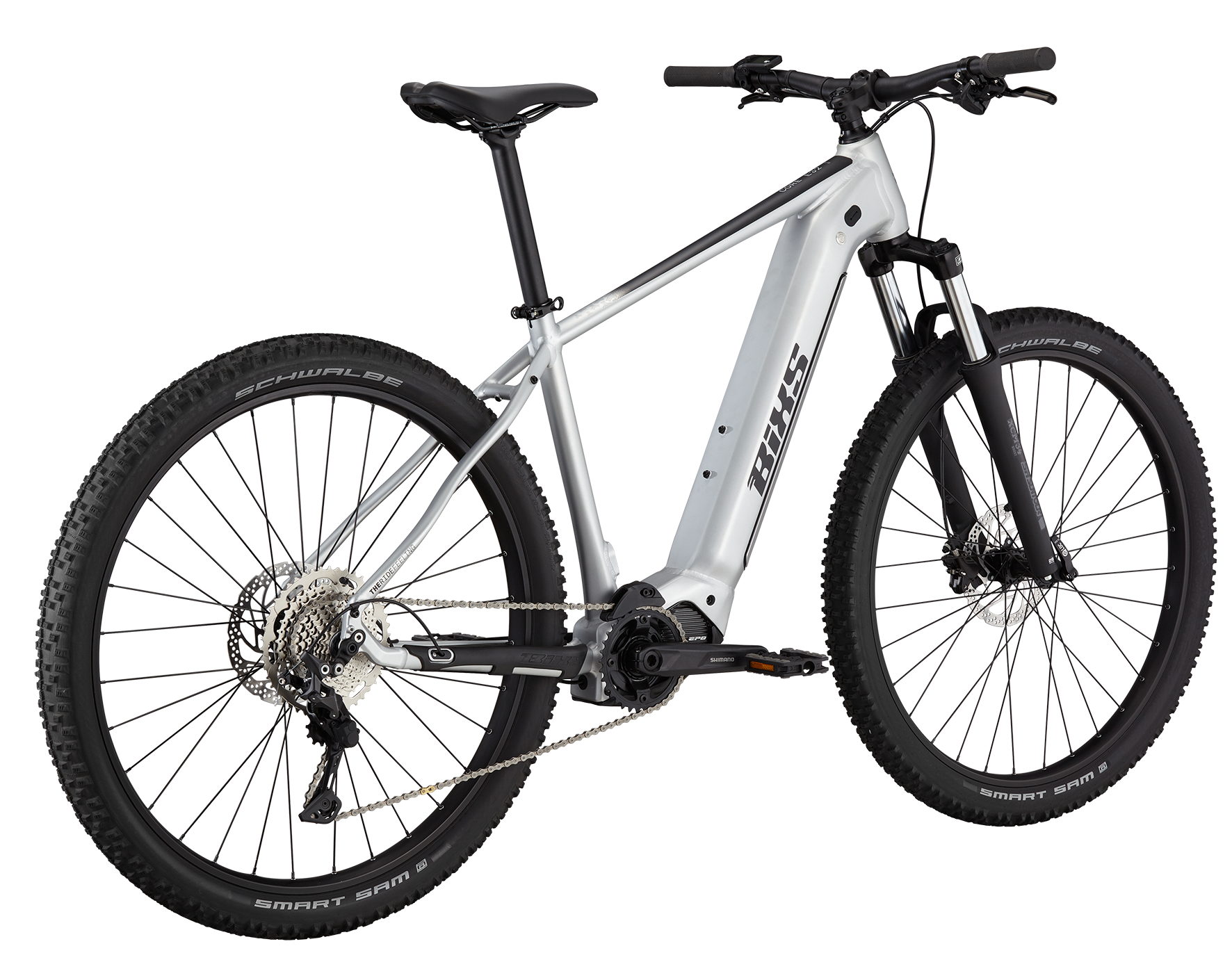

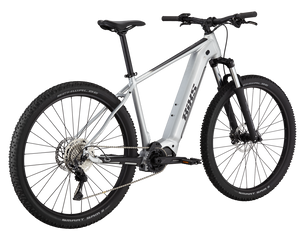

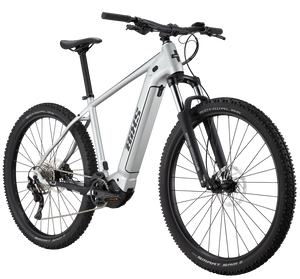

Specifications Core-E32

Frame E-SPORT GEOMETRY, ALLOY 6061 HYDROFORMED D.B. TUBES, HARDTAIL, DROPOUT 148x12mm BOOST, 29"
Fork SUNTOUR XCM34 DS 29", COIL SPRING, BOOST, TAPERED, 15mm AXLE, 120mm TRAVEL
Motor SHIMANO STEPS EP8, 250 WATT
Batteries DARFON, 36V, 500Wh
Display SHIMANO SC-E5003
Assistance levels ECO, TRAIL, BOOST
E-bike speed 25 km/h
Rear derailleur SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED
Shift lever SHIMANO DEORE SL-M4100, WITH OPTICAL GEAR DISPLAY
Crankset SHIMANO STEPS FC-EM600, 34 TEETH
Pedal VPE-857
Cassette SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED
Chain SHIMANO CN-E6090-10 E-Bike
Brakes SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake lever SHIMANO BL-MT201
Front hub SHIMANO HB-MT400-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Rear hub SHIMANO FH-MT400-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Front tire SCHWALBE SMART SAM K-GUARD, 29x2.6"
Rear tire SCHWALBE SMART SAM K-GUARD, 29x2.6"
Stem BIXS 0°ANGLE, 35mm CLAMP
Handlebar BIXS RIZER BAR, 760mm, 9° BACKSWEEP, 15mm RISE, 35mm
Headset FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat post BIXS, S & M: 350mm, OTHERS: 400mm, 31.6mm
Saddle BIXS VL-3533
Weight 23.1 KG

Geometry

Size A B C D E F G H I J K L
S 380 590 135 470 74° 67° 1175 35 660 401 315 165
M 430 595 140 470 74° 67° 1180 50 665 405 315 165
L 480 600 145 470 74° 67° 1186 50 670 410 315 165
XL 530 630 150 470 74° 67° 1216 65 675 437 315 165

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
