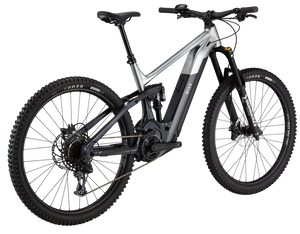

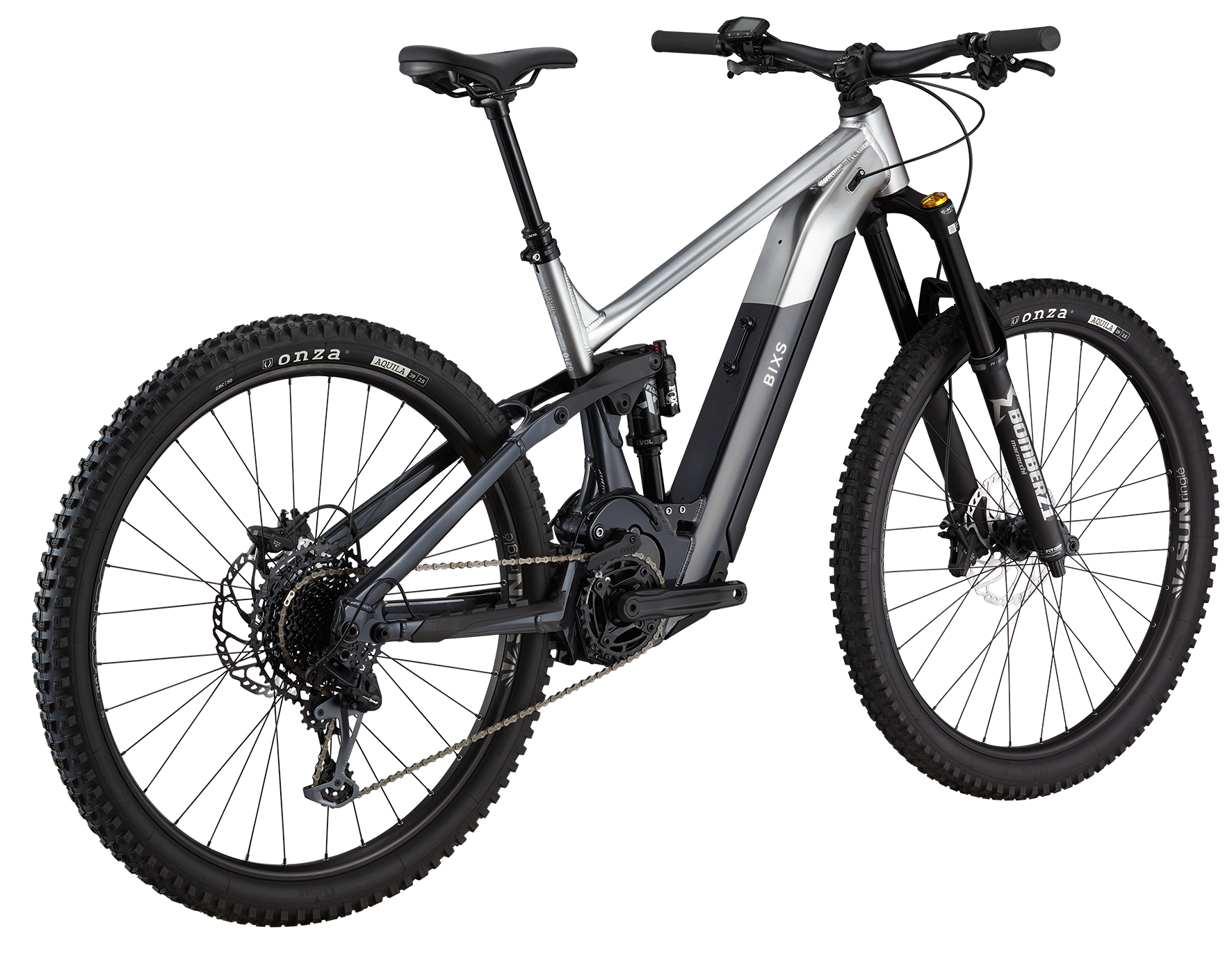

Lane-E26

The Lane-E embodies the essence of freeriding. The robust equipment, paired with contemporary geometry, is optimally adapted to progressive trails and a radical riding style. Thanks to the powerful Yamaha W-X3 motor, it not only masters challenging descents with ease, but also enables a comfortable ascent that feels like a shuttle.

CHF 6,590.00

Unit price: per

Grey Black

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm: M
174 - 188 cm: L
185 - 200 cm: XL

Where to test and buy?

Lane-E

Down for anything.

Learn more about the Lane-E +

Specifications Lane-E26

Frame	E-ENDURO GEOMETRY, ALLOY 6061, 160mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"
Fork	MARZOCCHI Z1 AIR, 15x110mm AXLE, TAPERED, GRIP, TRAVEL: 170mm, SWEEP-ADJ.
Motor	YAMAHA PW-X 3 SERIES, 250 WATT
Battery	SIMPLO, 36V, 630Wh
Display	YAMAHA Display A
Assistance levels	ECO+, ECO, STANDARD, HIGH, EXTRA POWER, AUTOMATIC
E-bike speed	25 km/h
Shock	FOX FLOAT X PERFORMANCE, 2 POSITION LEVER, 205x65, TRUNNION MOUNT, HARDWARE: 20mmx8mm
Rear derailleur	SRAM GX EAGLE, 12-SPEED
Shift lever	SRAM SL NX EAGLE SINGLE CLICK TRIGGER 12-SPEED
Crankset	SRAM EX1 EAGLE X-Sync, 34 TEETH
Cassette	SRAM PG-1210 EAGLE, 11-50 TEETH, 12-SPEED
Chain	SRAM CN-SX EAGLE
Brakes	SHIMANO BR-M6120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS
Brake lever	SHIMANO BL-M6100
Front hub	SUNRINGLE WHEELSET DUROC 37SD COMP, 32 HOLES, 15x110mm THRU AXLE
Rear hub	SUNRINGLE WHEELSET DUROC 37SD COMP, 32 HOLES, 12x148mm BOOST, THRU AXLE
Front tire	ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.5",GRC
Rear tire	ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.5",GRC
Stem	BIXS 0Â°ANGLE, 35mm CLAMP
Handlebar	BIXS RIZER BAR, 780mm, 9Â° BACKSWEEP, 15mm RISE, 35mm
Headset	ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat post	KIND SHOCK RAGEi, S: 100mm, M: 125mm, L: 150mm, XL: 170mm TRAVEL, WESTY LEVER REMOTE, 31.6mm
Saddle	BIXS VL-3575
Weight	26.9 KG

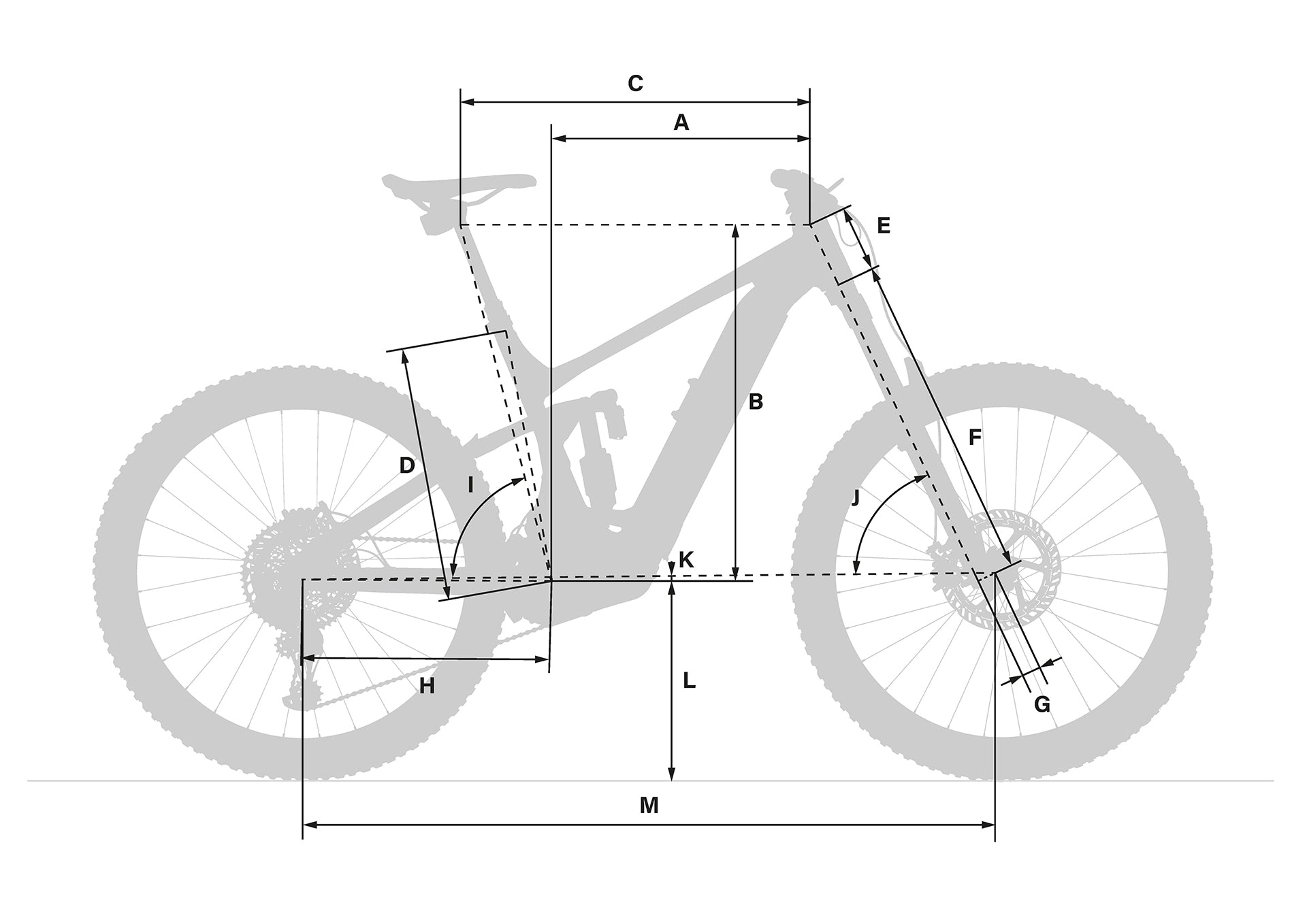

Geometry

Size	A	B	C	D	E	F	G	H	I	J	K	L
S	390	586	110	450	76°	65°	1213	35	627	430	355	165
M	430	602	115	450	76°	65°	1230	35	631	445	355	165
L	475	618	120	450	76°	65°	1248	35	636	460	355	165
XL	500	644	125	450	76°	65°	1275	50	640	485	355	165

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
G Wheel base (mm)
E Seat tube angle
F Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
