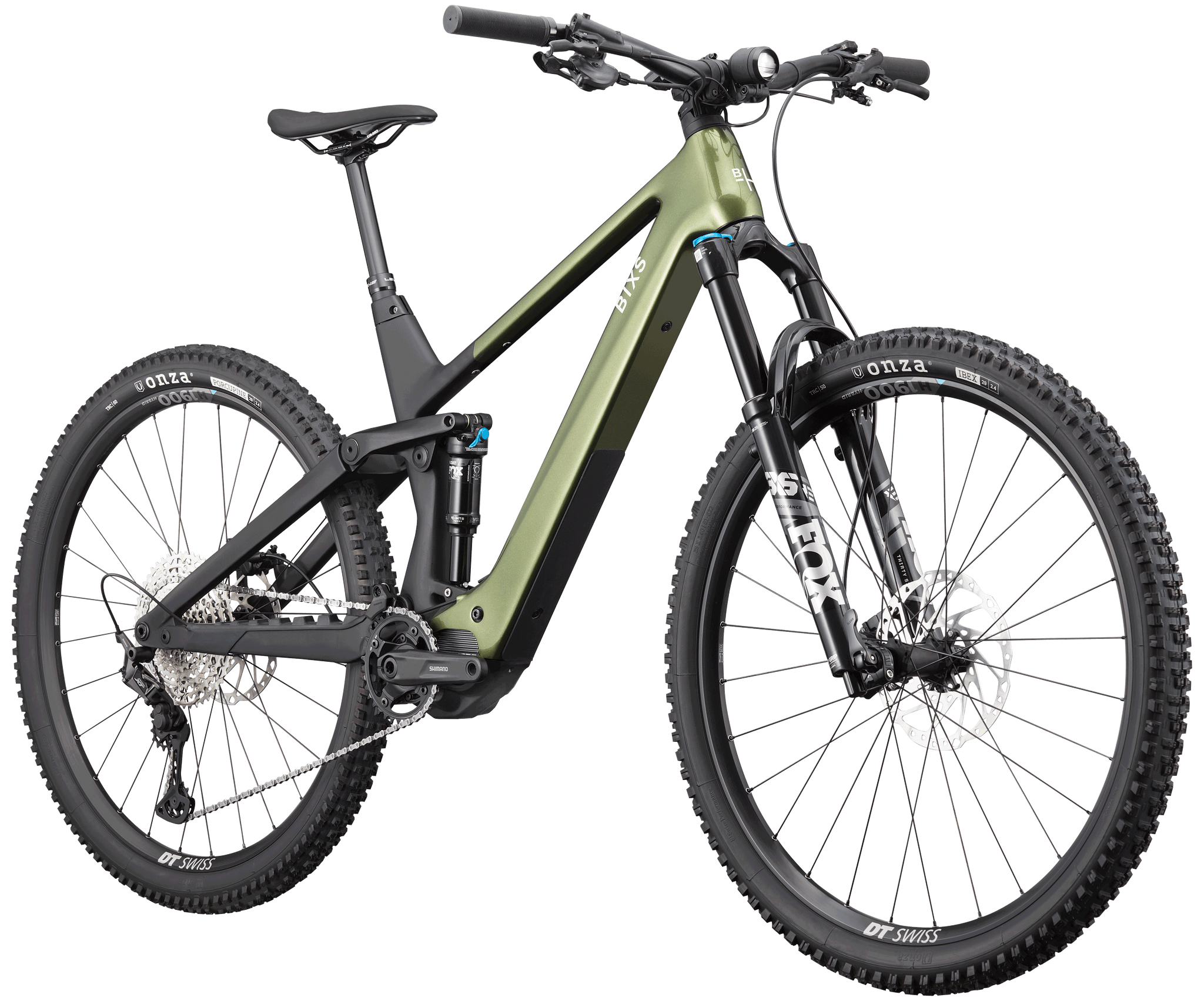

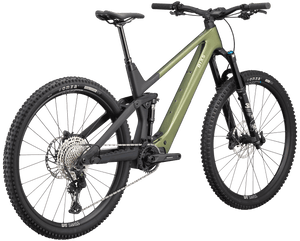

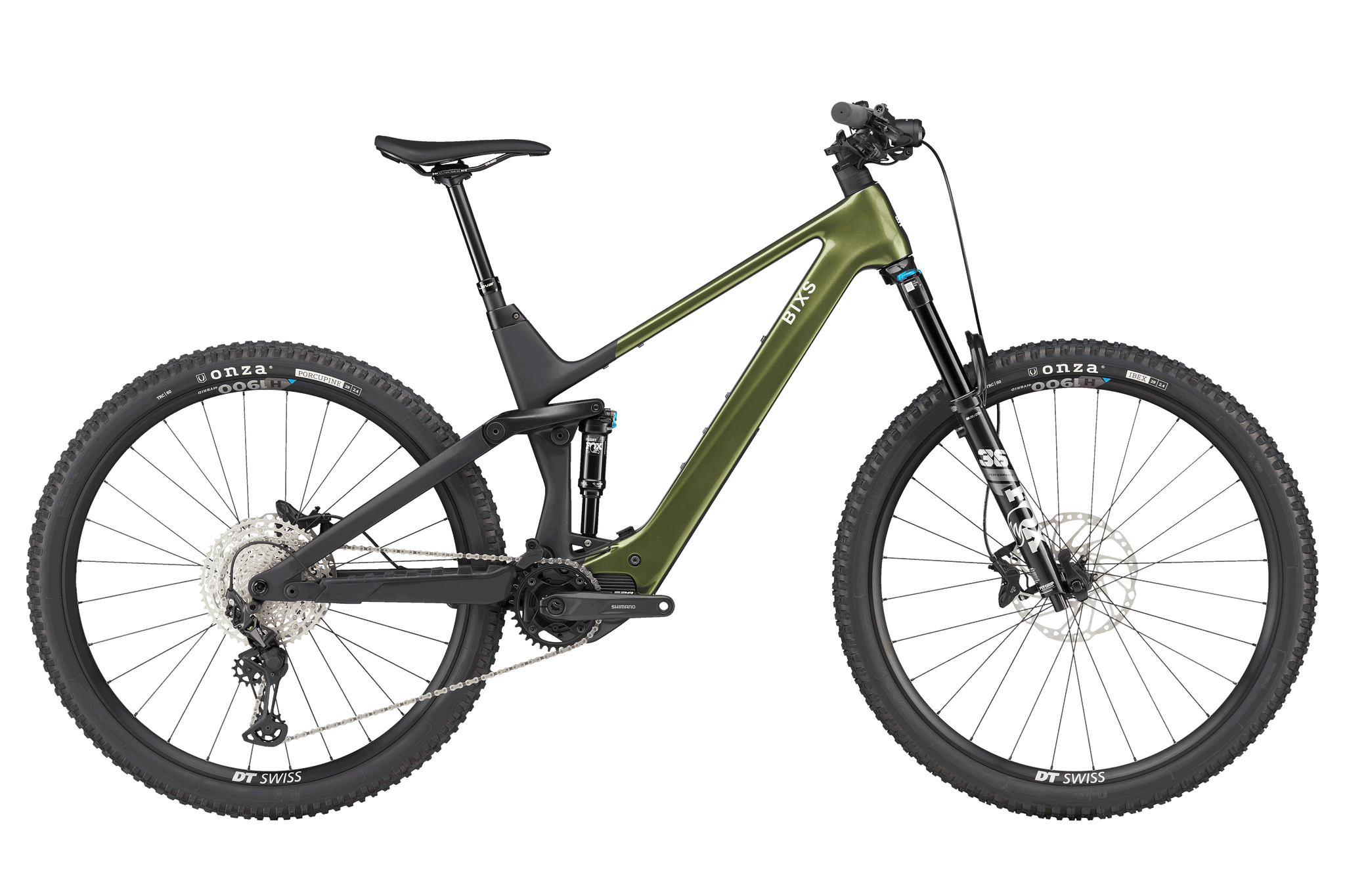

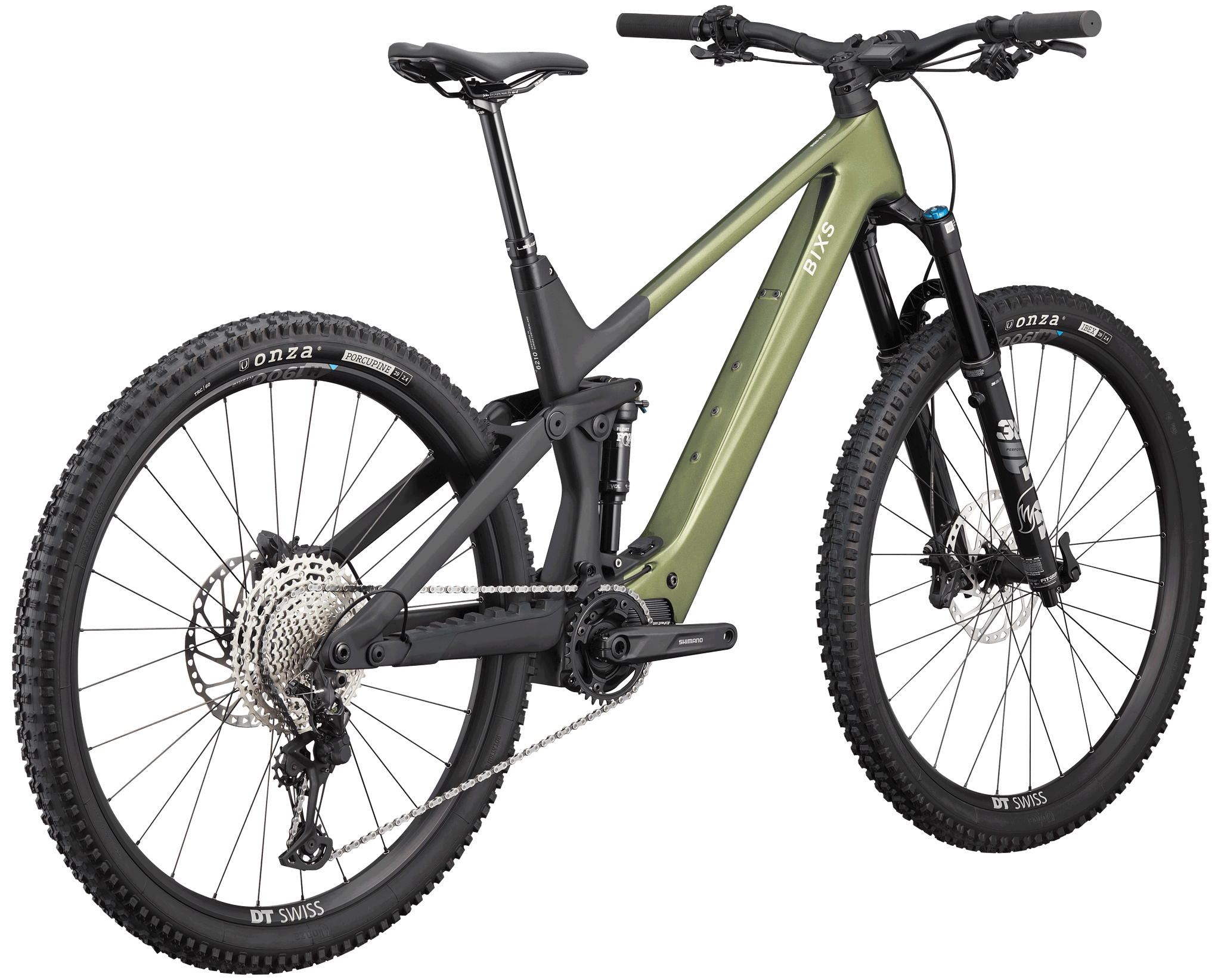

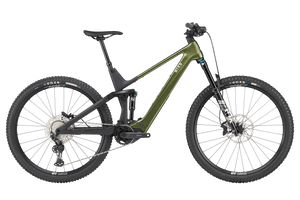

Sign-E23 Carbon

Name: Sign-E23 Carbon
Brand: Mein Shop
SKU: 101-506-4112
Price: 6990.0 CHF
Availability: InStock

Ride. Beyond. You.

Grow beyond yourself with the Sign-E. With the Sign-E, you immediately enter into a new, fascinating symbiosis. Its playful handling on descents combined with intuitive, powerful support on climbs lets you experience your trails in a completely new way. All you, only with superpowers.

CHF 6,990.00

Unit price: per

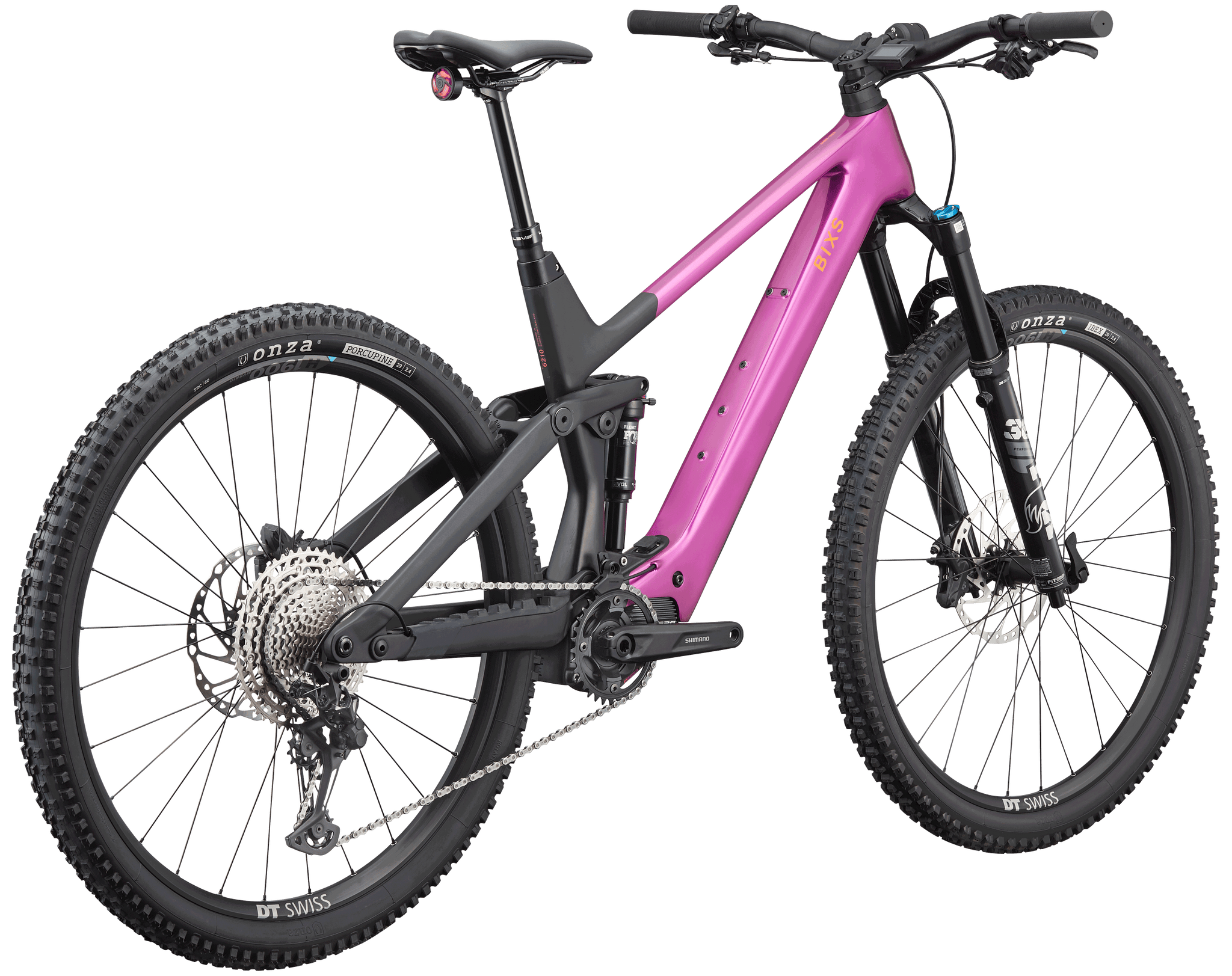

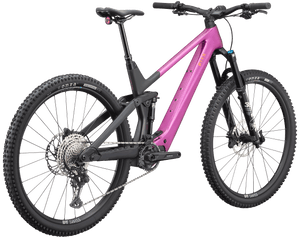

Black Purple

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L
185 - 200 cm: XL

Where to test and buy?

BIXS retailer directory →

Tax included. Shipping calculated at checkout.

Sign-E Carbon

Ride. Beyond. You.

Learn more about the Sign-E Carbon +

Specifications Sign-E23 Carbon

Frame	SIGN-E CARBON FULLSUSPENSION, 130mm TRAVEL, 12x148mm BOOST, POST MOUNT DISC
Fork	FOX 36 FLOAT PERFORMANCE GRIP, 140mm TRAVEL, 15x110mm, 44mm OFFSET
Shock	FOX FLOAT DPS PERFORMANCE, 3 POSITION LEVER, STANDARD MOUNT, 210x55mm, HARDWARE: 30/20x8mm
Motor	SHIMANO EP801, 85NM
Battery	DARFON FULL INTEGRATED, 400Wh, RANGE EXTENDER CAPABLE FOR SIZE XL, L, M
Display	SHIMANO SC-EN600
Assistance levels	PROFILE 1: WALK, ECO, TRAIL, BOOST / PROFILE 2: WALK, UP TO 15 MODI
E-bike speed	25 km/h
Rear derailleur	SHIMANO XT RD-M8100-SGS, 12-SPEED
Shift lever	SHIMANO XT SL-M8100-IR
Crankset	SHIMANO FC-EM600, SM-CRE80-12, CL55, 34T
Cassette	SHIMANO DEORE CS-M6100-12, 10-51T
Chain	SHIMANO XT CN-M8100
Chain guide	SHIMANO CD-EM800, 34-38T
Brakes	SHIMANO DEORE BL-M6100, BR-M6120 4-PISTON
Brake disks	SHIMANO SM-RT64, CENTER LOCK, 203/203MM
Wheelset	DT SWISS H 1900 SPLINE, 30MM INNER WIDTH
Front tire	ONZA PORCUPINE, 29x2.4", TRC, TUBELESS READY
Rear tire	ONZA IBEX, 29x2.4", TRC, TUBELESS READY
Stem	SATORI URSA, 0°, 35mm CLAMP
Handlebar	BIXS RIZER BAR, 25mm RISE, 780mm
Seat post	KIND SHOCK LEV-SI, ø31.6mm, S: 100mm, M: 125mm, L: 150mm, XL: 175mm
Saddle	BIXS VL-4432
Headlight	LITEMOVE SE-150, 150 LUX
Rear light	INFINI TURBO 5 MODES BATTERY LIGHT
Frame size	S, M, L, XL
Weight	19.5 Kg

Geometry

Size		S	M	L	XL
A	Frame size (mm)	372	413	456	473
B	Top tube horizontal (mm)	566	592	618	644
C	Head tube (mm)	95	100	120	140
D	Chainstay lenght (mm)	450	450	450	450
E	Seat tube angle	76°	76°	76°	76°
F	Head tube angle	65,5°	65,5°	65,5°	65,5°
G	Wheel base (mm)	1178	1205	1234	1262
H	Stem (mm)	50	50	50	50
I	Stack (mm)	606	611	629	647
J	Reach (mm)	425	450	470	490
K	Bottom bracket height (mm)	340	340	340	340
L	Crank length (mm)	165	165	165	165

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
