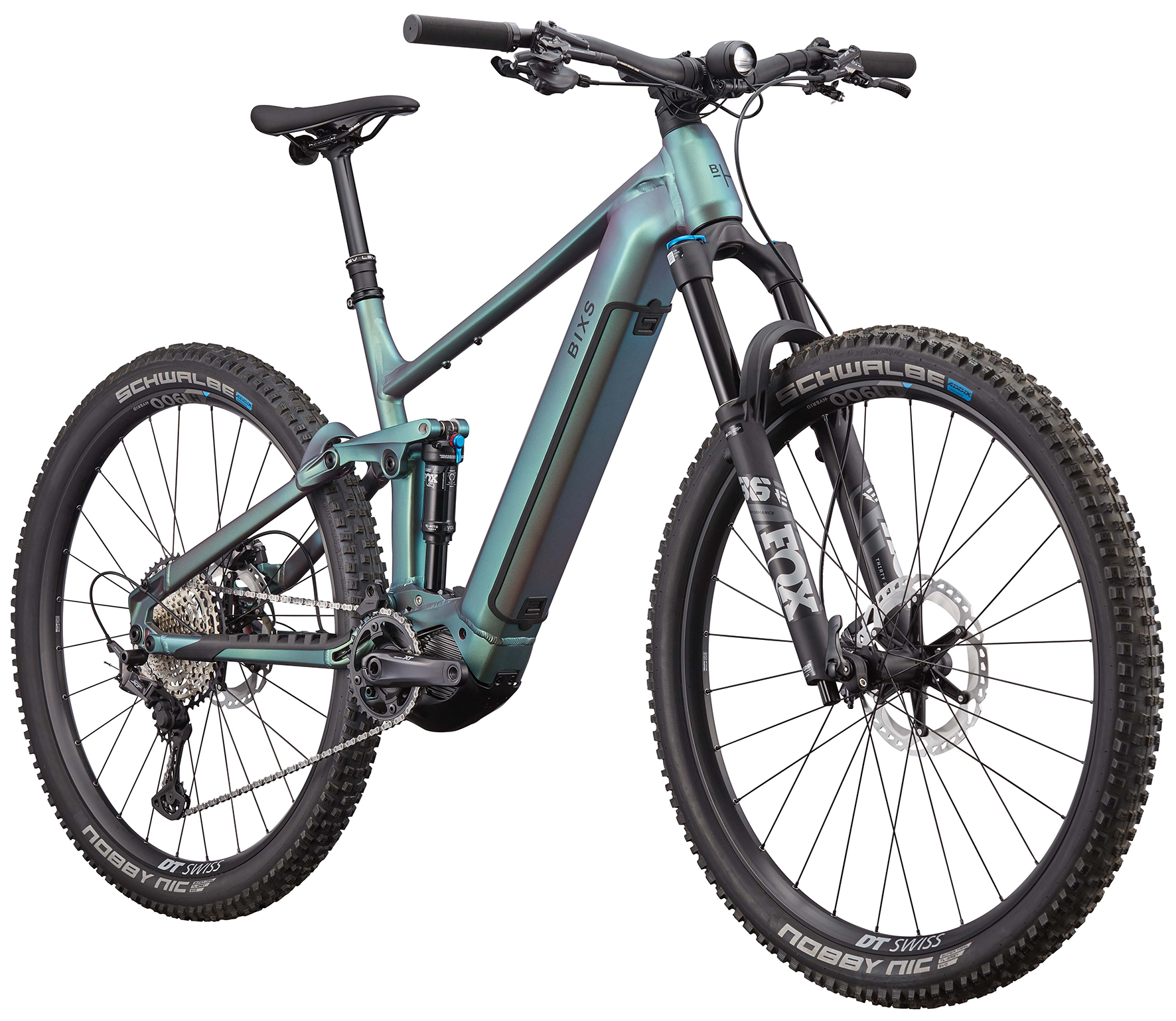

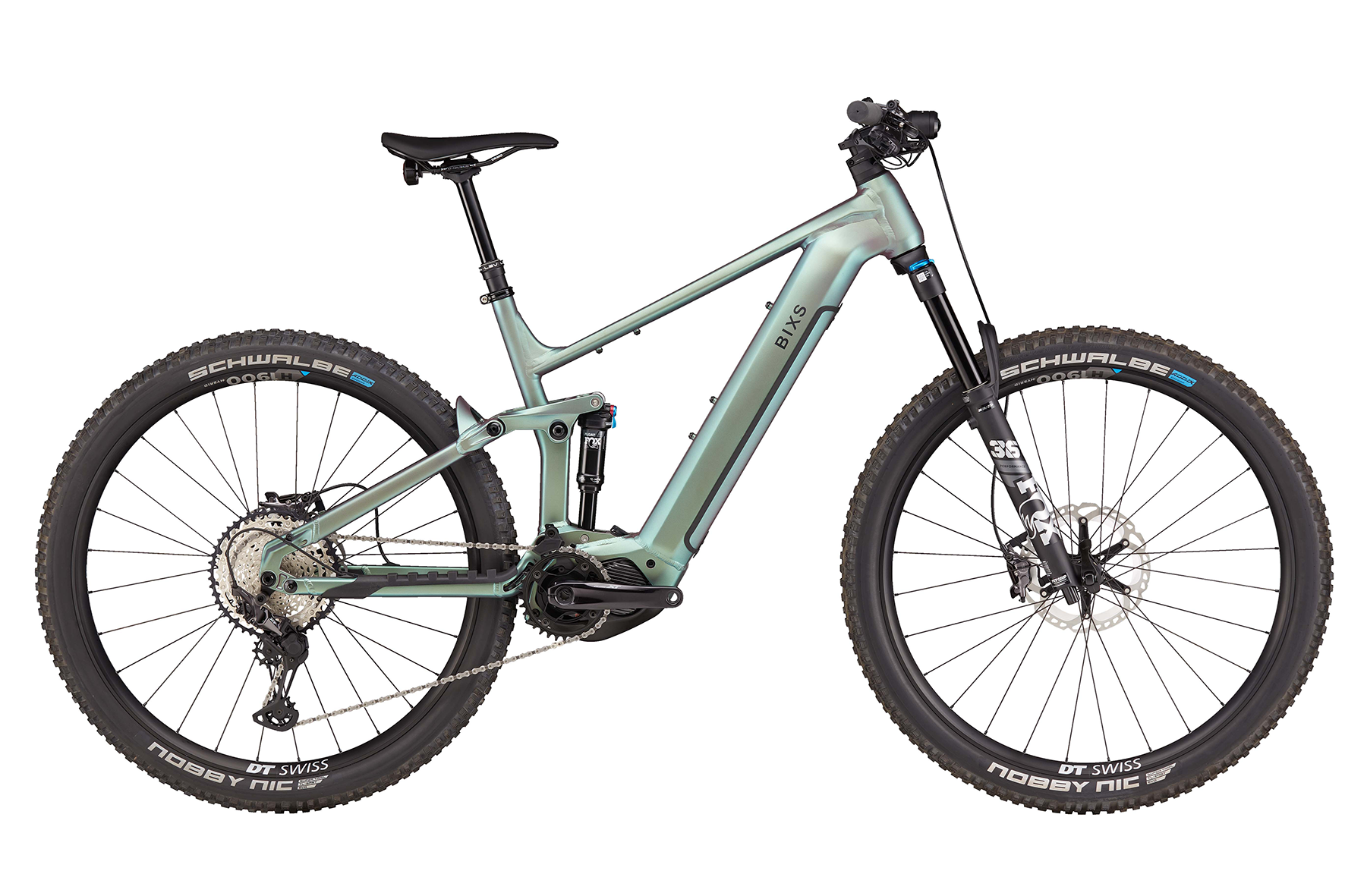

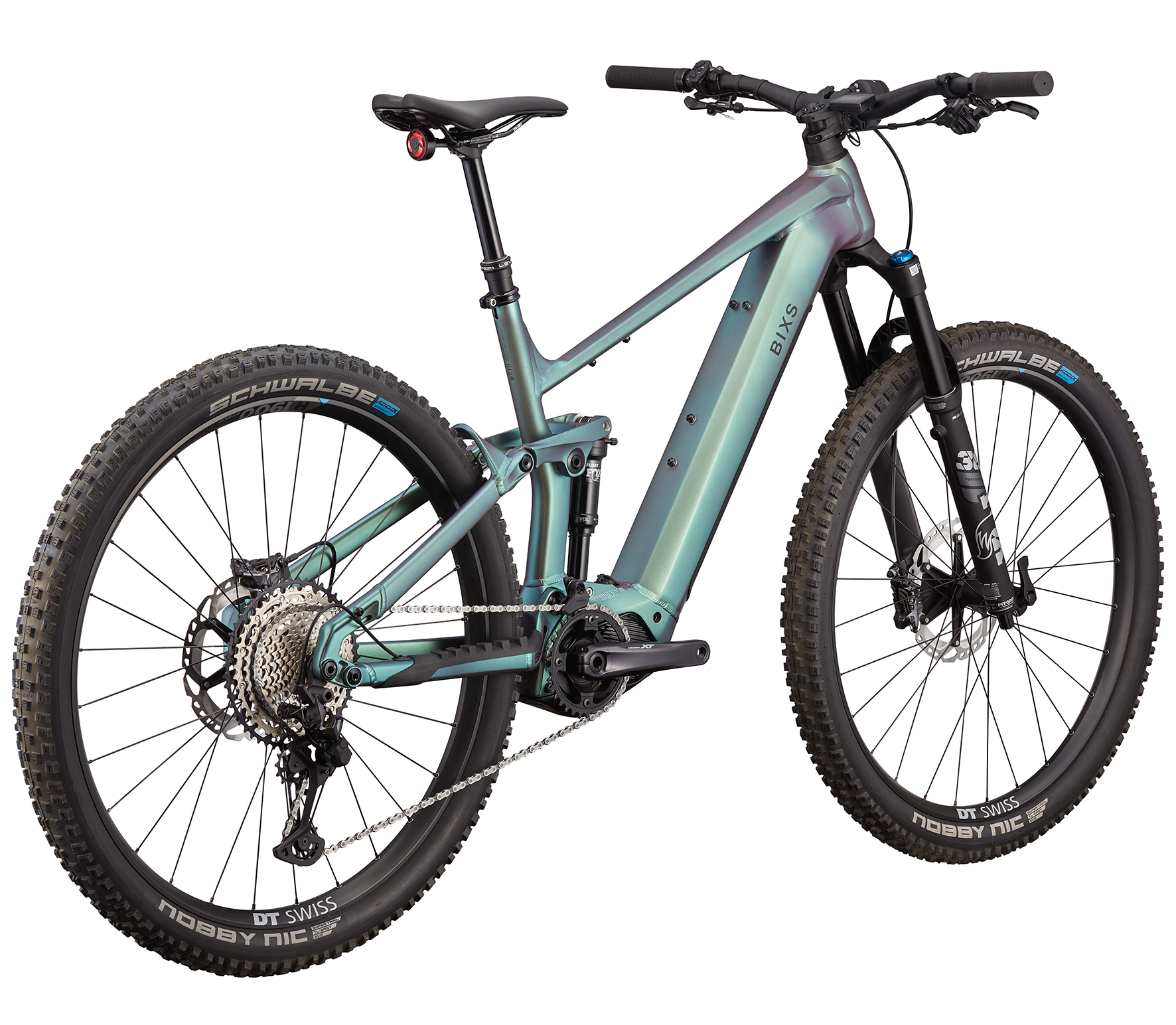

Sign-E33

Discover your flow on long trail tours. Thanks to its sensitive sensor technology and individual adjustability, the Shimano EP8 motor is known for its natural riding feeling. Get into the flow and enjoy the balanced riding characteristics of the Sign-E.

CHF 6,990.00

Unit price: per

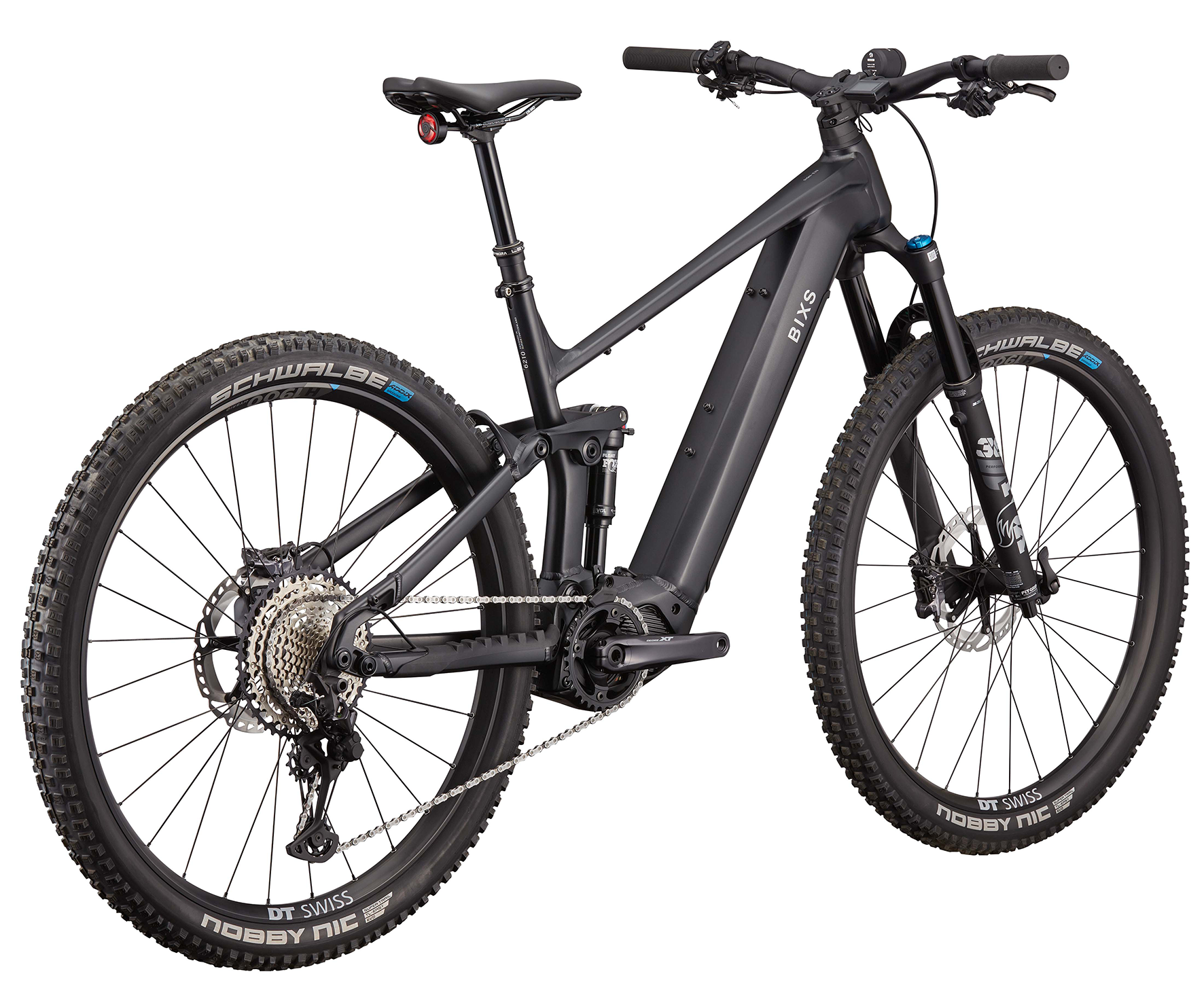

Black

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L
185 - 200 cm: XL

Where to test and buy?

Tax included. Shipping calculated at checkout.

Sign-E

Trails, Trails, Trails.

Learn more about the Sign-E +

Specifications Sign-E33

Frame	SIGN-E PREMIUM ALLOY FULLSUSPENSION, 130MM TRAVEL, 12X148MM BOOST
Fork	FOX 36 FLOAT PERFORMANCE GRIP, 140MM TRAVEL, 15X110MM
Shock	FOX FLOAT DPS PERFORMANCE, 3 POSITION LEVER, 210X55MM
Motor	SHIMANO EP801, 85NM
Batteries	DARFON 600WH, RANGE EXTENDER CAPABLE
Display	SHIMANO SC-EN600
Rear derailleur	SHIMANO XT RD-M8100-SGS, 12-SPEED
Shift lever	SHIMANO XT SL-M8100-IR
Crankset	SHIMANO FC-M8150, SM-CRE80-12, CL55, 34T
Cassette	SHIMANO SLX CS-M7100-12, 10-51T
Chain	SHIMANO XT CN-M8100
Brakes	SHIMANO XT BL-M8100, BR-M8120 4-PISTON
Brake lever	SHIMANO RT-MT800, CENTER LOCK, 203/203MM
Wheelset	DT SWISS H 1900 SPLINE, 35MM INNER WIDTH
Front tire	SCHWALBE NOBBY NIC EVO, 29X2.6", SUPER TRAIL, ADDIX SPEED
Rear tire	SCHWALBE NOBBY NIC EVO, 29X2.6", SUPER TRAIL, ADDIX SPEED
Stem	SATORI URSA, 0°, 35MM CLAMP
Handlebar	BIXS RIZER BAR, 25MM RISE, 780MM
Seat post	KIND SHOCK LEV INTEGRA, Ø30.9MM, S: 65MM, M: 100MM, L : 125MM, XL: 150MM
Saddle	BIXS VL-4432
Headlight	LITEMOVE SE-150, 150 LUX
Rear light	INFINI TURBO 5 MODES BATTERY LIGHT
Weight	24.9 KG

Geometry

		S	M	L	XL
A	Reach	425	450	470	490
B	Stack	618	618	627	645
C	Top Tube	579	604	626	650
D	Seat Tube	400	440	470	510
E	Head Tube	110	110	120	140
F	Fork Length	551	551	551	551
G	Fork Offset	44	44	44	44
H	Chainstay	450	450	450	450
I	Seat Angle	76	76	76	76
J	Head Tube Angle	65	65	65	65
K	BB Drop	35	35	35	35
L	BB Height	343	343	343	343
M	Wheelbase	1187	1212	1236	1265
	Stem Length	50	50	50	50
	Crank Length	165	165	165	165
