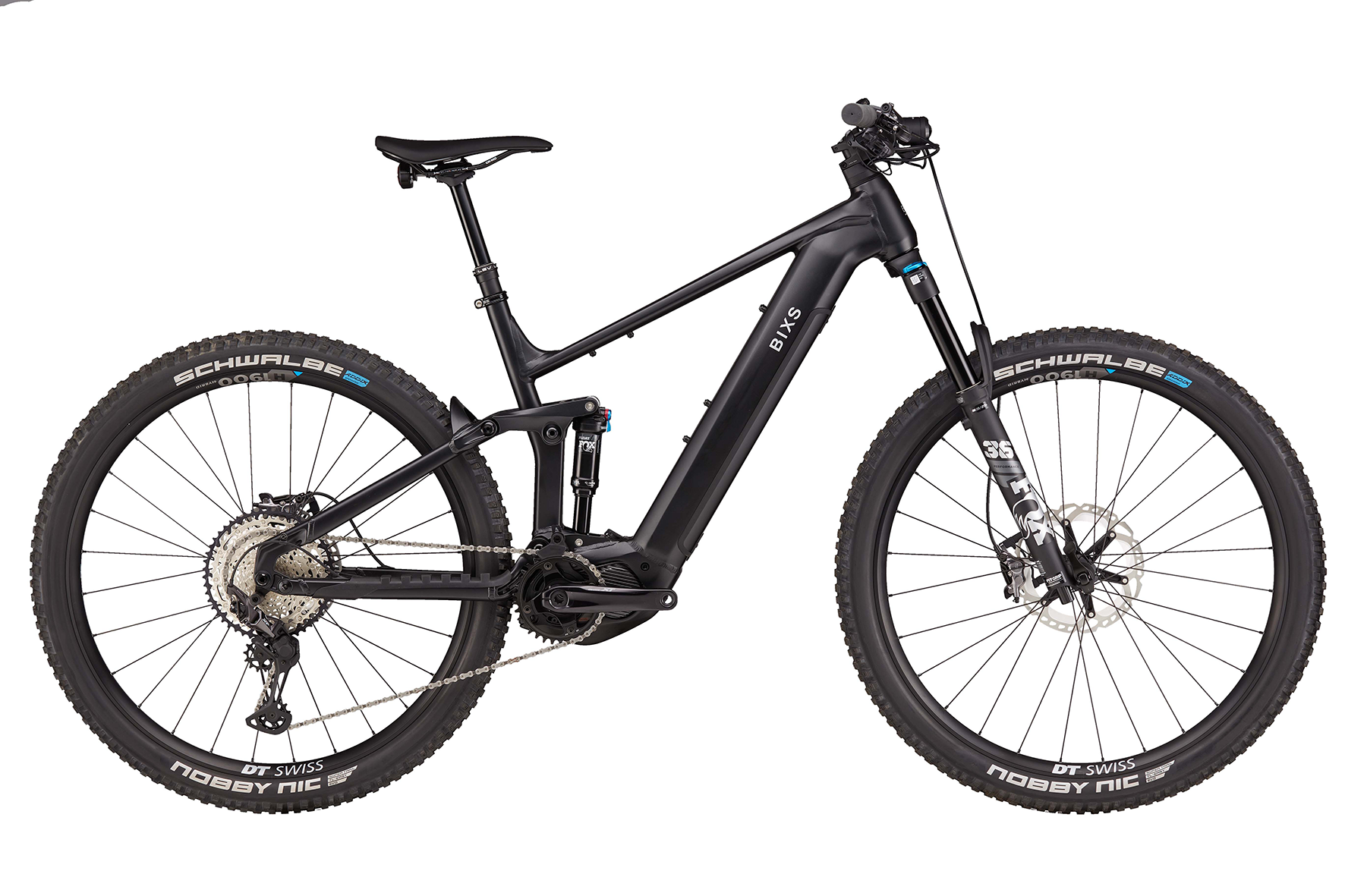

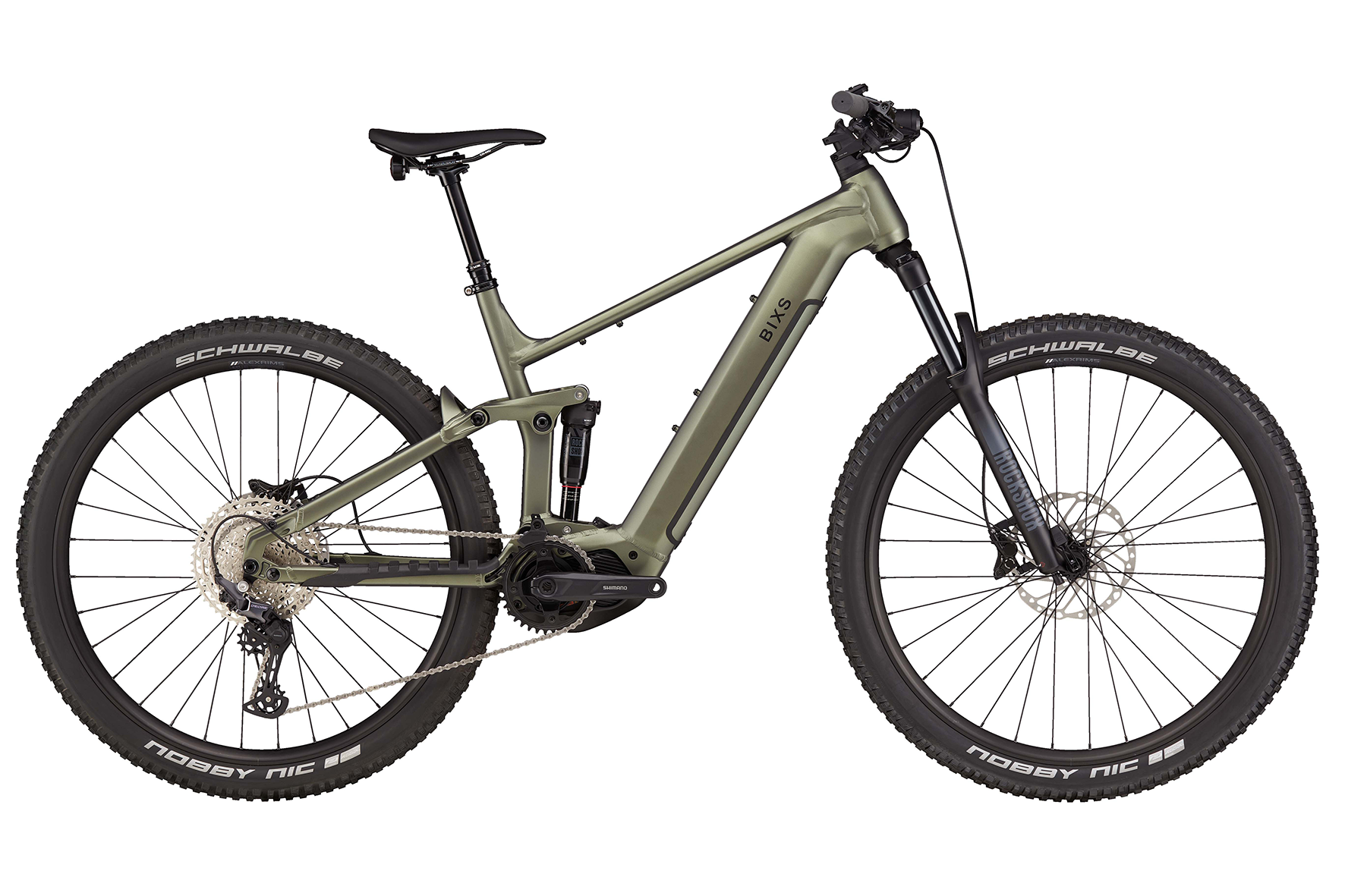

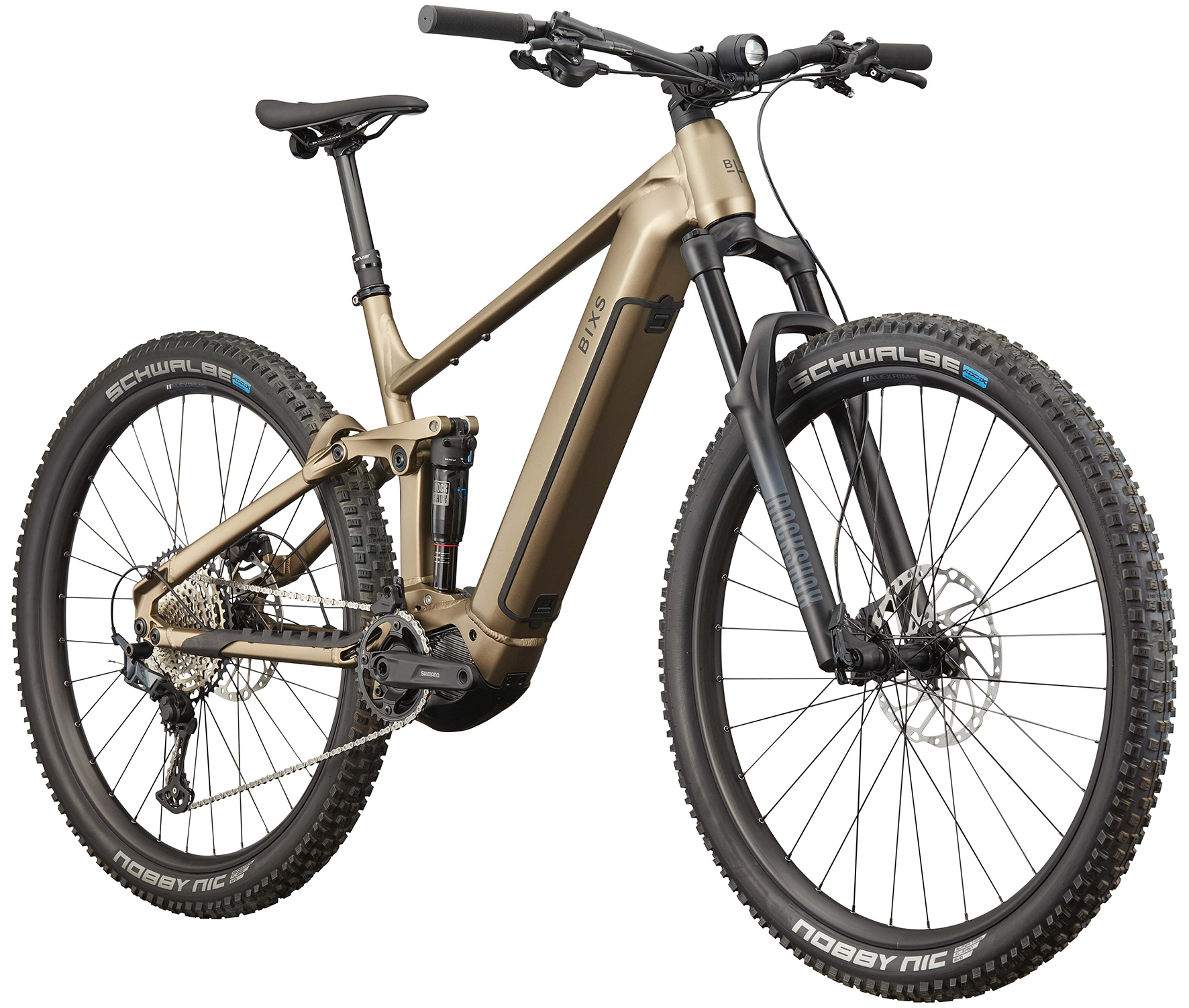

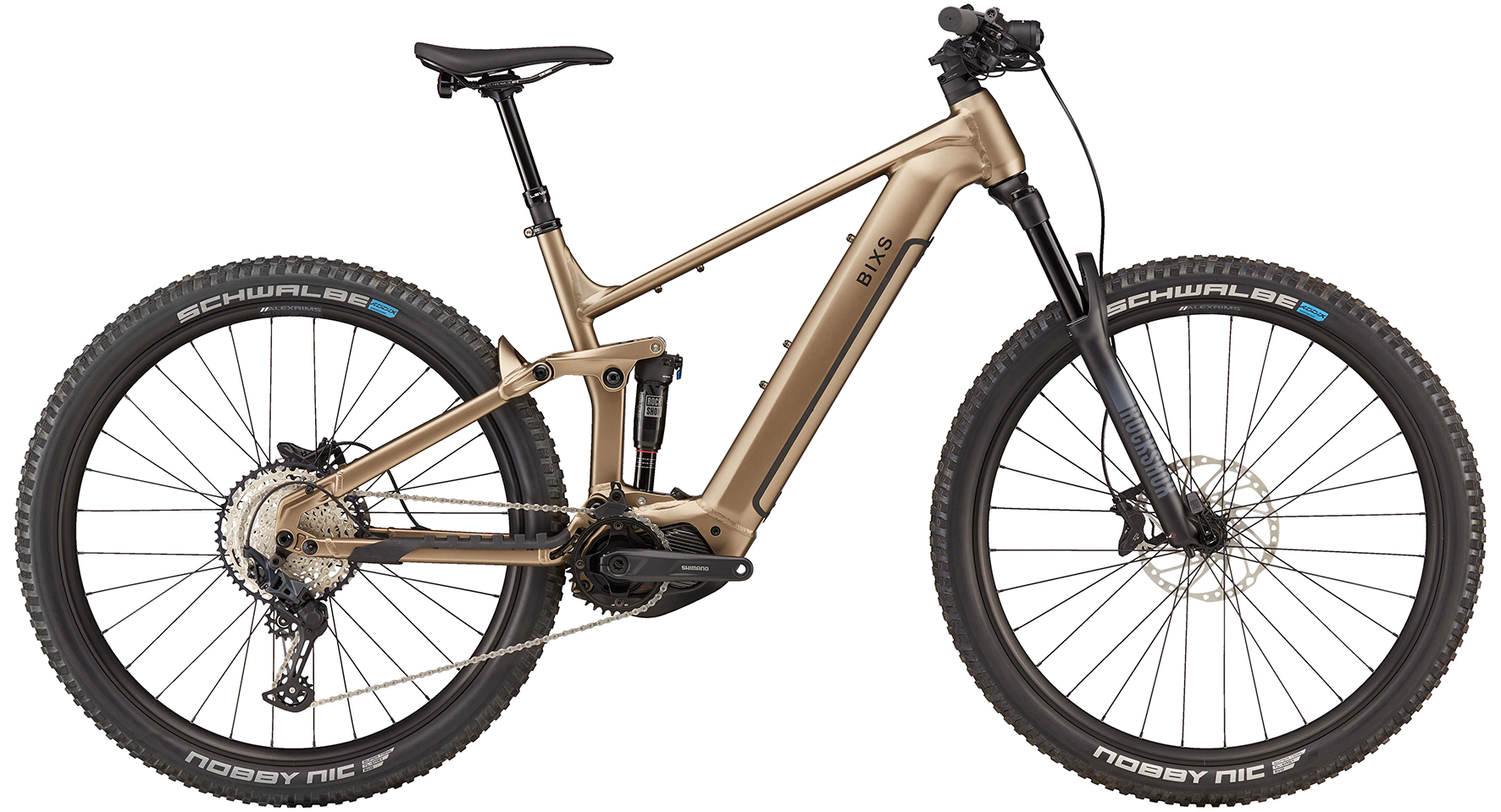

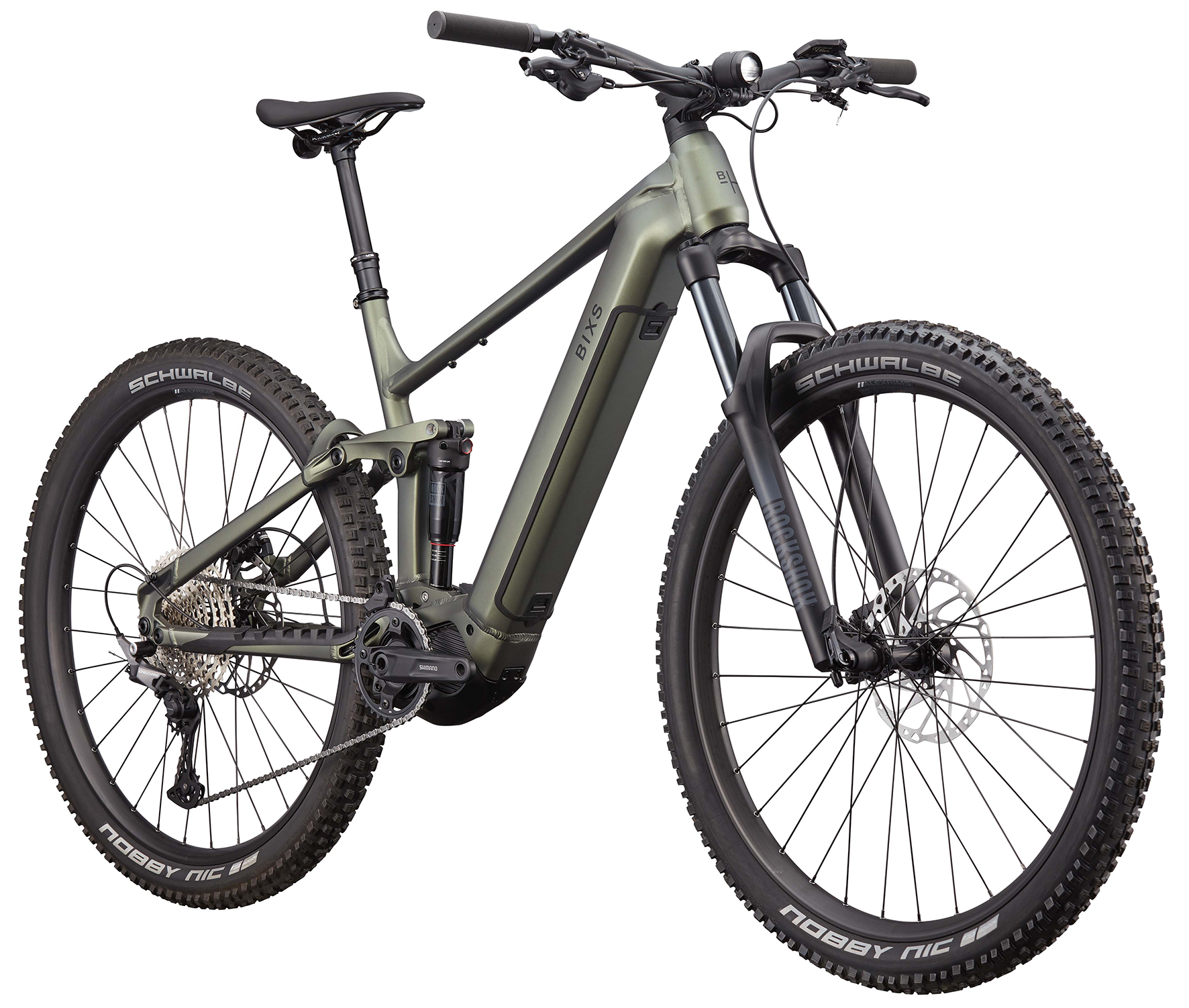

Spécifications Sign-E23

Cadre E-TRAIL GEOMETRY, ALLOY 6061, 130mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"
Fourche ROCK SHOX 35 GOLD RL DEBONAIR 29", 15x110mm AXLE, TAPERED, 130mm TRAVEL, REBOUND, COMP.TO LOCK
Moteur SHIMANO STEPS EP8, 250 WATT
Batterie DARFON, 36V, 630Wh
Display SHIMANO SC-E5003
Mode d'assistance ECO, TRAIL, BOOST
Vitesse max. 25 km/h
Amortisseur ROCK SHOX DELUX SELECT R, LEVER, DEBON AIR, 205x60, TRUNNION MOUNT, HARDWARE: 30mmx8mm
Dérailleur arr. SHIMANO SLX RD-M7100 SGS SHADOW PLUS DESIGN, 12-SPEED
Levier de vitesse SHIMANO SLX SL-M7100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Pédalier SHIMANO FC-EM600, 34 TEETH
Cassette SHIMANO CS-M7100, 10-51 THEETH, 12-SPEED
Chaîne SHIMANO CN-M7100 12-Speed
Freins SHIMANO BR-M6120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS
Levier de freins SHIMANO BL-M6100, ISPEC EV
Jantes ALEXRIMS EM-35, 32 HOLES, INNER WIDTH 35mm, 29"
Moyeu avant SHIMANO HB-TC500-15-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Moyeu arrière SHIMANO FH-TC600-MS-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Pneu avant SCHWALBE NOBBY NIC EVO SUPER TRAIL, ADDIX SPEEDGRIP, TL EASY, 29x2.6"
Pneu arrière SCHWALBE HANS DAMPF EVO SUPER TRAIL, ADDIX SPEEDGRIP, TL EASY, 29x2.6"
Potence BIXS 0°ANGLE, 35mm CLAMP
Guidon BIXS RIZER BAR, 780mm, 9° BACKSWEEP, 15mm RISE, 35mm
Jeu de direction FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Tige de selle KIND SHOCK RAGEi, S: 75mm, M: 100mm, L: 125mm, XL: 150mm TRAVEL, SHIMANO REMOTE LEVER, 30.9mm
Selle ERGON SM10 E-MOUNTAIN SPORT MEN
Poids 24.9 KG

Géométrie

TailleABCDEFGHIJKL
S40659013547074°66°119640633408340165
M44559514047074°66°120250638413340165
L48061514547074°66°122360643431340165
XL53063515047074°66°124370648450340165

A Taille de cadre mm
B Long. tube horizontal mm
C Long. tube de dir. mm
D Long. bases arrières mm
E Angle tube de selle
F Angle tube de direction
G Base mm
H Potence mm
I Stack mm
J Reach mm
K Hauteur de pedalier mm
L Longueur des manivelles mm
