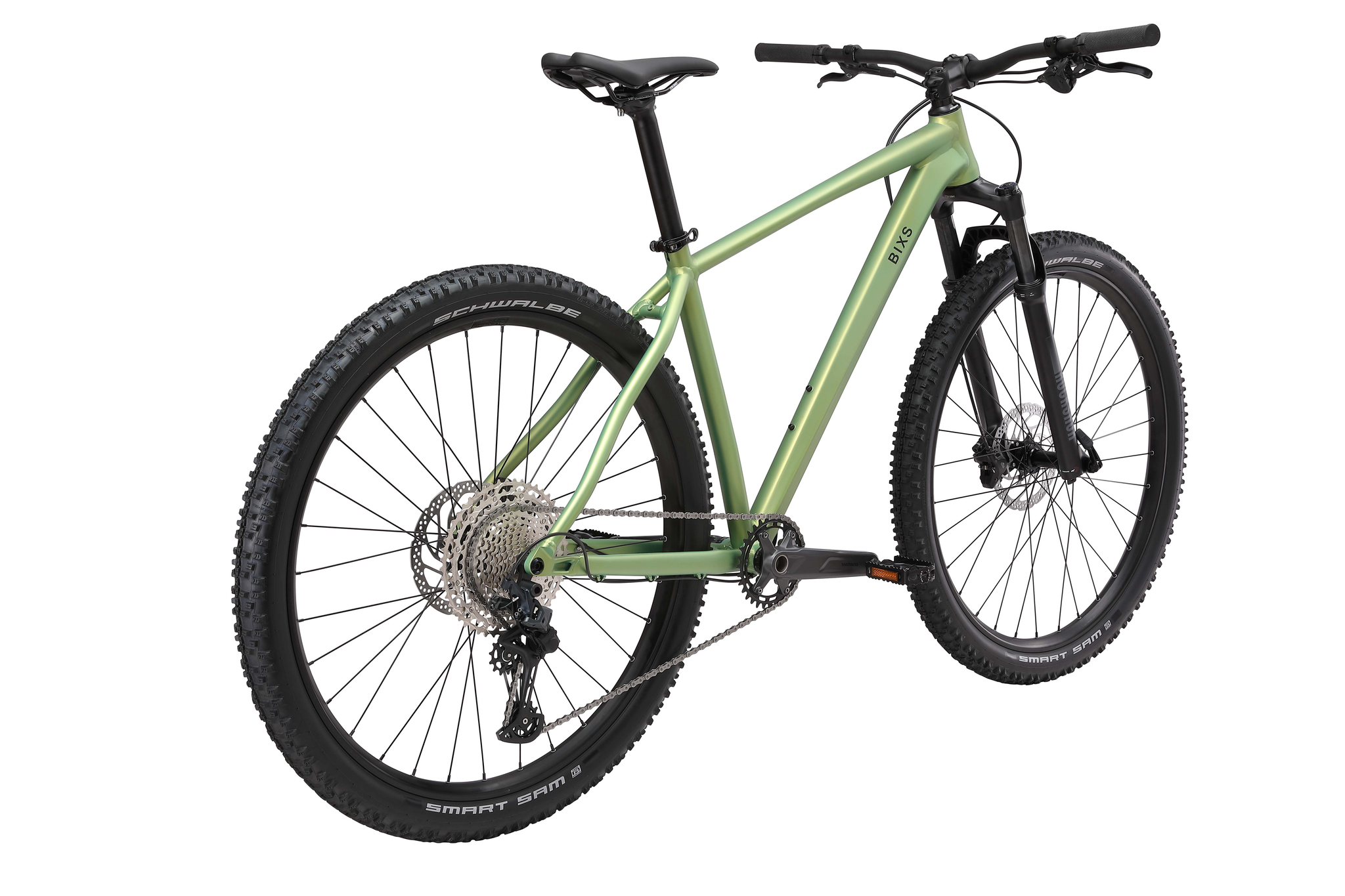

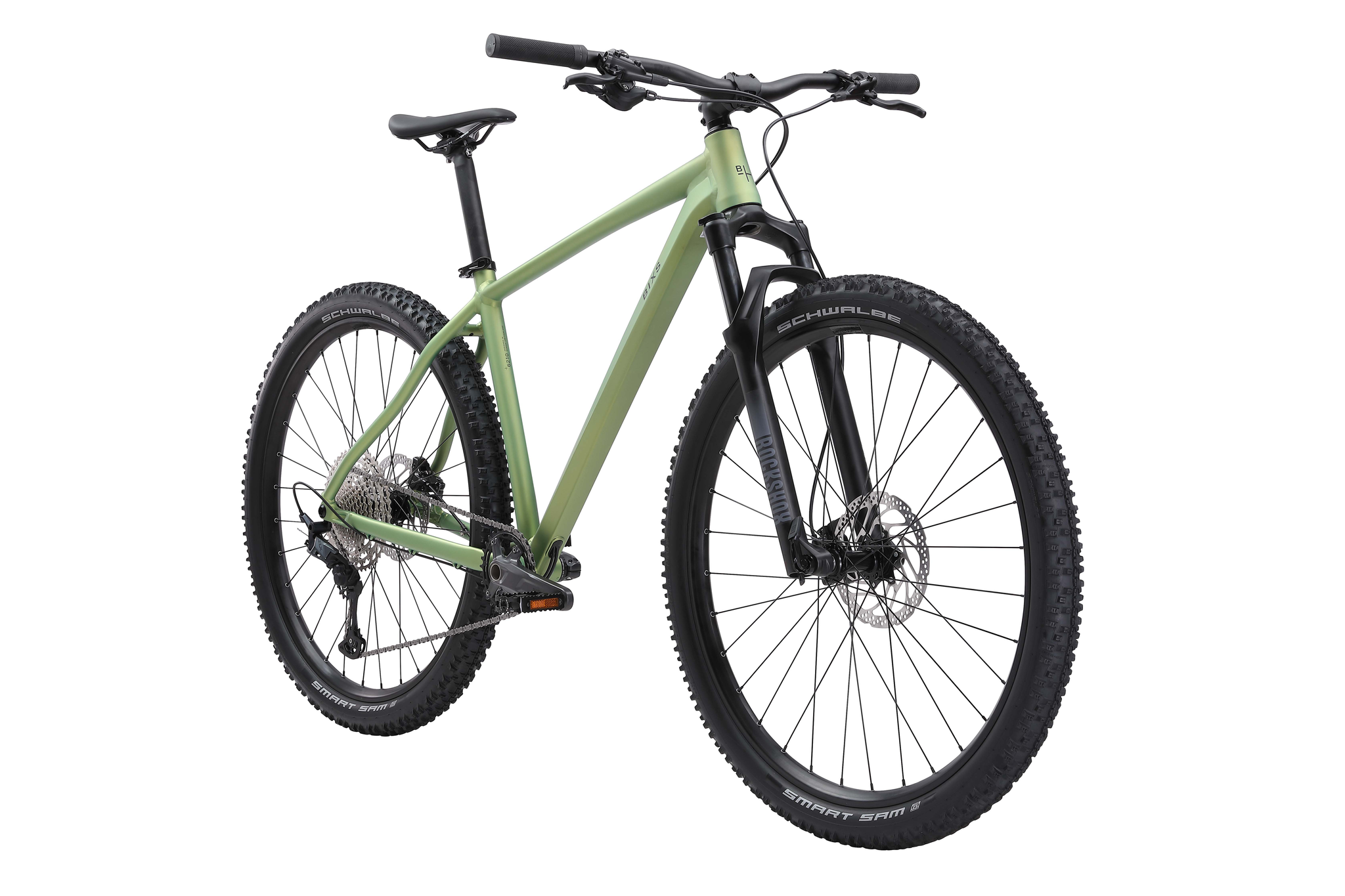

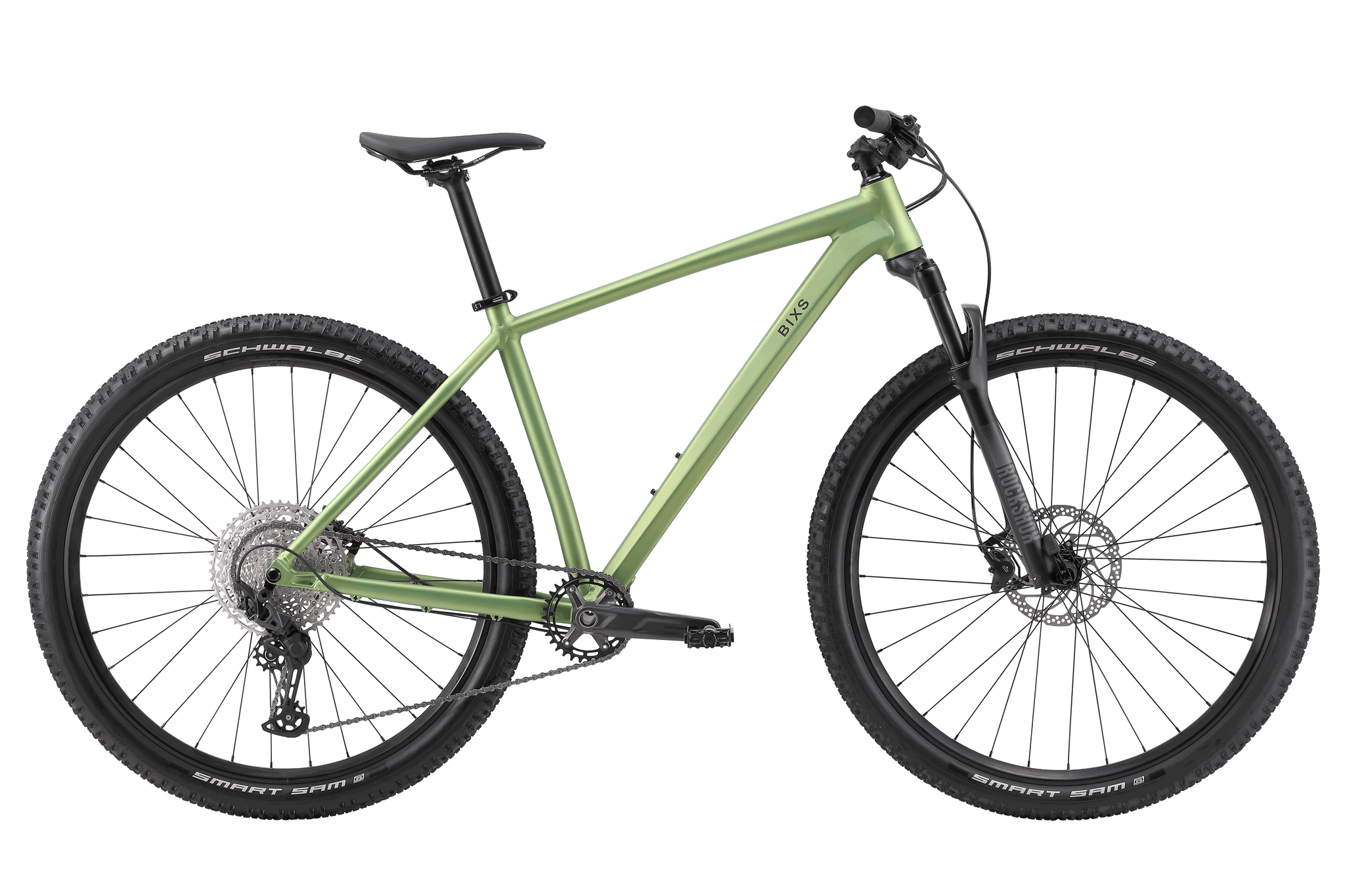

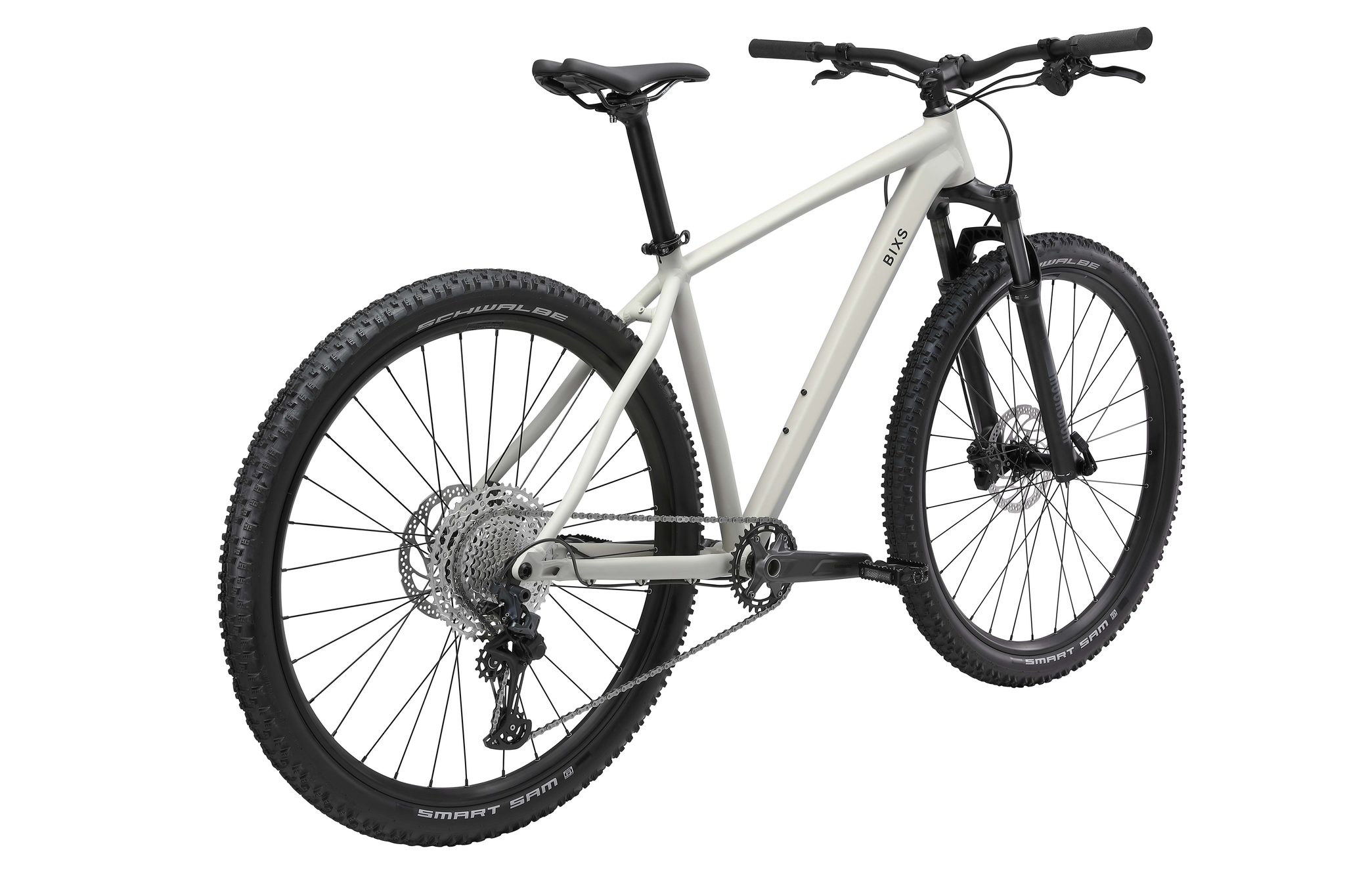

Spezifikationen Core 300
| Rahmen | CORE PREMIUM ALLOY HARDTAIL, 12X148MM BOOST |
| Gabel | ROCK SHOX JUDY SILVER TK , 100MM TRAVEL, 15X110MM |
| Schaltwerk | SHIMANO SLX RD-M7100-SGS, 12-SPEED |
| Schalthebel | SHIMANO DEORE SL-M6100-IR |
| Kurbelgarnitur | SHIMANO FC-MT511-1, CL52, 32T |
| Kassette | SHIMANO DEORE CS-M6100-12, 10-51T |
| Kette | SHIMANO CN-M6100 |
| Bremsen | SHIMANO BL-M4100, BR-MT410 2-PISTON |
| Bremsscheiben | SHIMANO SM-RT30, CENTER LOCK, 180/180MM |
| Felgen | ALEXRIMS MD30, 30MM INNER WIDTH |
| Nabe vorne | SHIMANO HB-TC500-15-B, 32 HOLES |
| Nabe hinten | SHIMANO FH-TC500-MS-B, 32 HOLES |
| Vorderreifen | SCHWALBE SMART SAM K-GUARD, 29X2.35" |
| Hinterreifen | SCHWALBE SMART SAM K-GUARD, 29x2.35" |
| Vorbau | BIXS STEM, 0°, 31.8MM CLAMP |
| Lenker | BIXS RIZER BAR, 25MM RISE, 740MM |
| Sattelstütze | BIXS SEATPOST, Ø31.6MM, S & M: 3 50MM, L & X L: 400MM |
| Sattel | BIXS VL-4432 |
| Gewicht | 13.8 KG |
Geometrie
| SIZE | S | M | L | XL | |
| A | Reach | 387 | 407 | 425 | 443 |
| B | Stack | 619 | 619 | 624 | 633 |
| C | Top Tube | 570 | 590 | 610 | 630 |
| D | Seat Tube | 380 | 430 | 480 | 530 |
| E | Head Tube | 105 | 105 | 110 | 120 |
| F | Fork Length | 510 | 510 | 510 | 510 |
| G | Fork Offset | 51 | 51 | 51 | 51 |
| H | Chainstay | 455 | 455 | 455 | 455 |
| I | Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| J | Head Tube Angle | 68 | 68 | 68 | 68 |
| K | BB Drop | 68 | 68 | 68 | 68 |
| L | BB Height | 308 | 308 | 308 | 308 |
| M | Wheelbase | 1114 | 1134 | 1154 | 1175 |
| Stem Length | 35 | 45 | 55 | 65 | |
| Crank Length | 170 | 175 | 175 | 175 |
| Körpergrösse | 149 - 163 cm | 159 - 178 cm | 174 - 188 cm | 185 - 200 cm |
| Rahmengrösse | S | M | L | XL |
