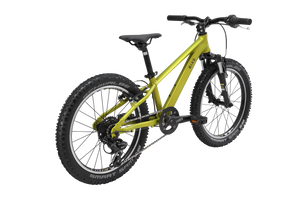

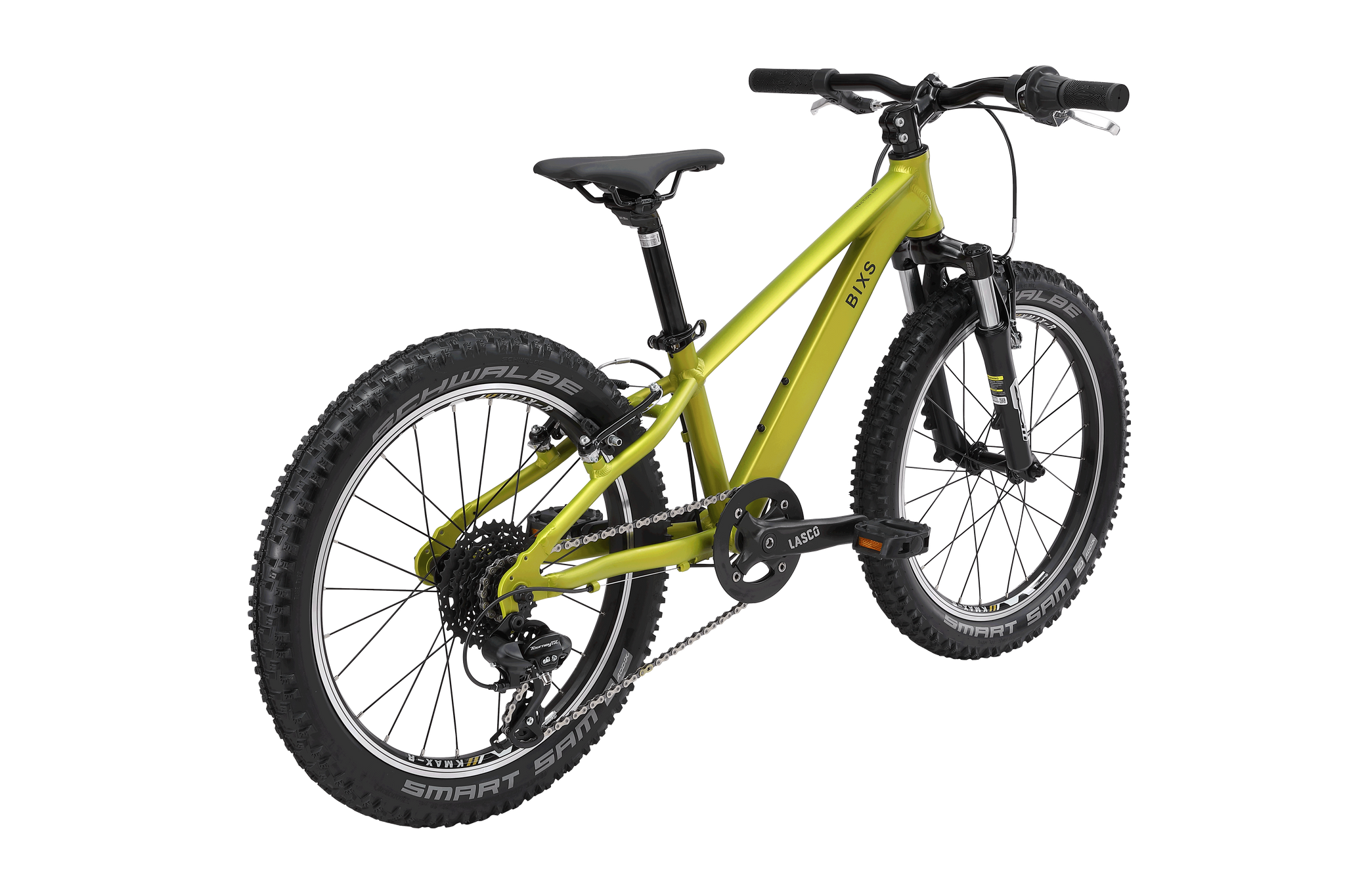

Traction 200

Little daredevils don't settle for half measures and always go all in. Whether playing in the forest, on the first tours with mom or dad or on the way to the kindergarten or school, high-quality brakes and robust tires, a stable frame and different gears are a must!

CHF 559.00

Unit price: per

Dark Yellow

Which size fits me?

Frame size:
Onesize (20" / 120 cm+)

Where to test and buy?

Tax included. Shipping calculated at checkout.

Traction

Where kids lead the way.

Learn more about the Traction +

Specifications Traction 200

Frame	KIDS GEOMETRY, ALLOY 6061, HARDTAIL 20"
Fork	ZOOM 565 BASIC 20, 40mm TRAVEL, SOFT SPRING
Rear derailleur	SHIMANO RD-TX800, 8-SPEED
Shift lever	SHIMANO SL-RS45-8R, REVO SHIFTER
Crankset	LASCO ALLOY CRANK, 32 TEETH
Pedal	WELLGO LU-P17
Bottom bracket	VP-BC73, CARTRIDGE, 68/113
Cassette	SUNRACE CSM55, 11-34 TEETH, 8-SPEED
Chain	KMC, 8-SPEED
Brakes	V-BRAKE TX-121
Brake lever	SILVER ALLOY LEVER
Rims	WEINMANN K MAX R, 24 HOLES, 20"
Front hub	KT A15F, 24 HOLES, QR
Rear hub	KT AZER-M10, 24 HOLES, QR
Front tire	SCHWALBE SMART SAM K-GUARD, 20x2.35"
Rear tire	SCHWALBE SMART SAM K-GUARD, 20x2.35"
Stem	BIXS TDS-C41-8, 6°ANGLE, 25.4mm CLAMP
Handlebar	BIXS RIZER BAR, 560mm, 20mm RISE, 25.4mm
Headset	VP A68, 1 1/8"
Seat post	BIXS SP-C212, 250mm, 27.2mm
Saddle	BIXS VL-5130
Frame size	20"
Weight	9.9 KG

Geometry

Size

A

B

C

D

E

F

G

H

I

J

K

L

20"

279

440

100

366

72°

70°

852

60

--

165

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
