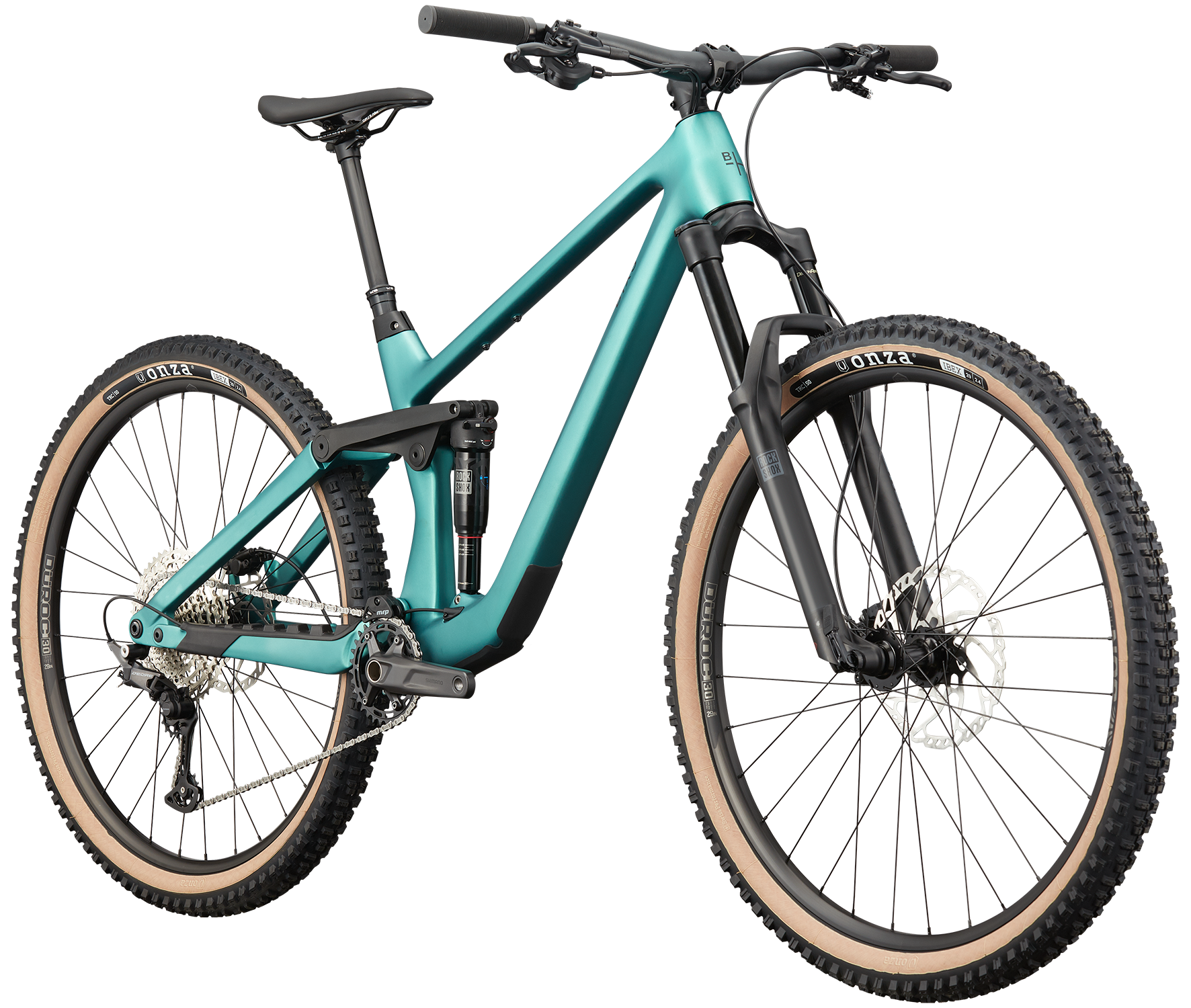

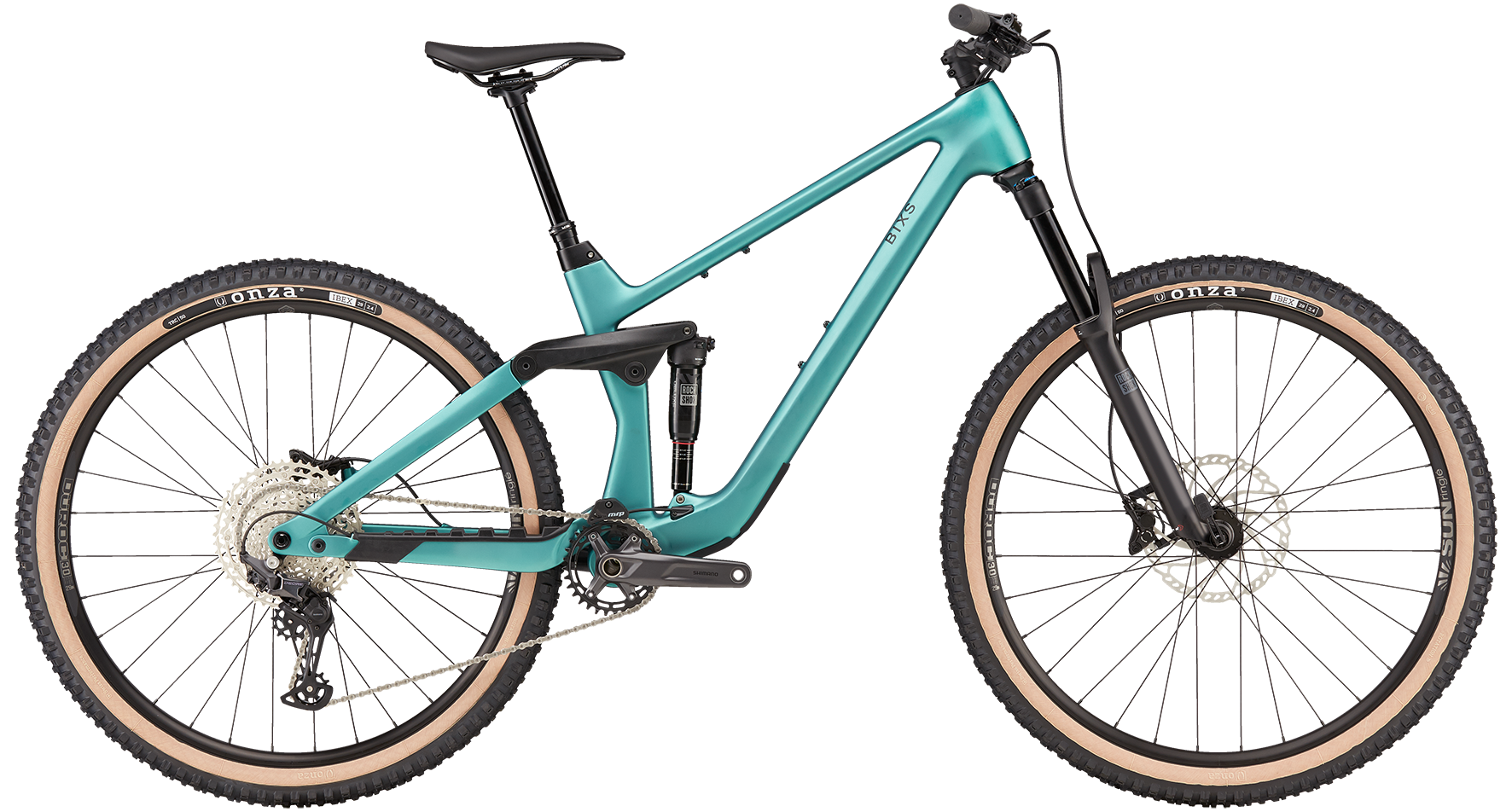

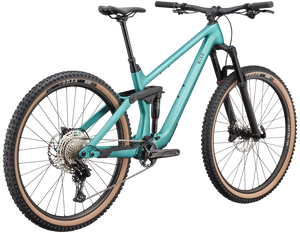

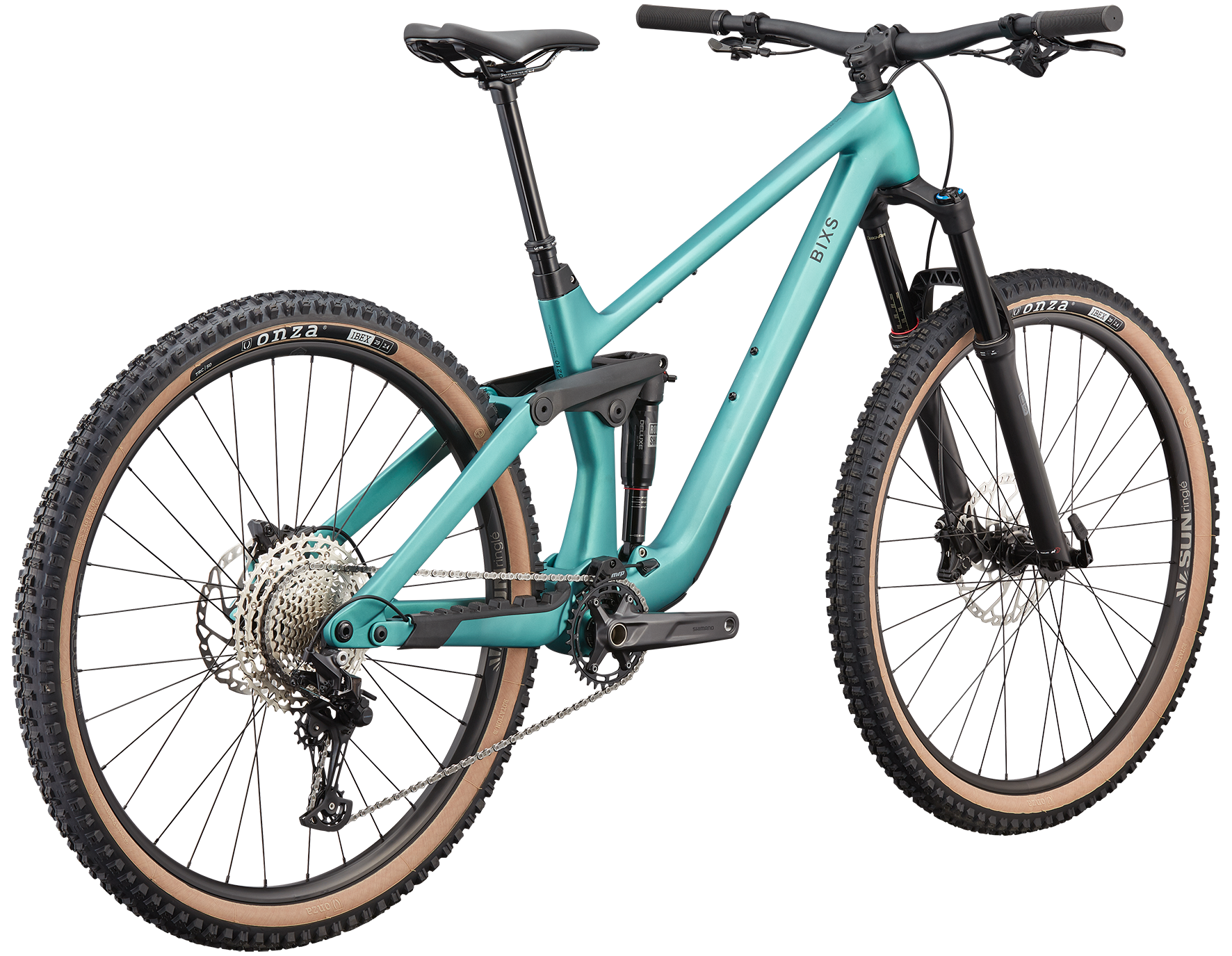

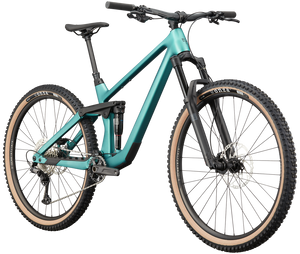

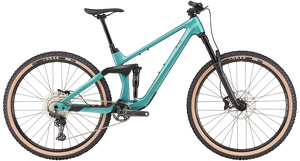

Peak 340

Secluded peaks and secret trails are the subject of many epic mountain bike stories. The new PEAK is based on the new LANE and was designed as a lighter package precisely for these missions. With its low weight, it lets you reach new heights and master alpine challenges with fun. The PEAK totally redefines free touring. Forget the bike park - your new horizon is much broader!

CHF 3,590.00

Unit price: per

Golden Sand Metallic

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L
185 - 200 cm: XL

Where to test and buy?

Tax included. Shipping calculated at checkout.

Peak

Enter new areas.

Learn more about the Peak +

Specifications Peak 340

Frame	TRAIL GEOMETRY, FULL CARBON FRAME, 140mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Fork	ROCK SHOX REVELATION RC, 15x110mm AXLE, TAPERED, 150mm TRAVEL, REBOUND, COMPRESSION TO LOCK
Shock	ROCK SHOX DELUX SELECT+ RT, LEVER, 185x55, TRUNNION MOUNT, HARDWARE: 20mmx8mm
Rear derailleur	SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift lever	SHIMANO DEORE SL-M6100, CLAMP TYPE
Crankset	SHIMANO FC-MT512, 2-PIECE CRANKSET, S: 30 THEETH, OTHERS 32 TEETH
Bottom bracket	SHIMANO BB-MT501
Cassette	SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Chain	SHIMANO CN-M6100 12-SPEED
Brakes	SHIMANO BR-MT500, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS
Brake lever	SHIMANO BL-MT501
Rims	SUNRINGLE WHEELSET DUROC 30 COMP, TLR, 28 HOLES, INNER WIDTH 26mm, 29"
Front hub	SUNRINGLE WHEELSET DUROC 30 COMP, 28 HOLES, 15x110mm THRU AXLE
Rear hub	SUNRINGLE WHEELSET DOROC COMP, 28 HOLES, 12x148mm BOOST, THRU AXLE
Front tire	ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Rear tire	ONZA IBEX, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Stem	BIXS 0°ANGLE, 35mm CLAMP
Handlebar	BIXS RIZER BAR, 780mm, 9° BACKSWEEP, 15mm RISE, 35mm
Headset	ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Seat post	KIND SHOCK RAGEi, S: 100mm, M: 125mm, L: 150mm, XL: 170mm TRAVEL, SOUTHPAW REMOTE LEVER, 31.6mm
Saddle	BiXS VL-1831
Weight	14.3 KG

Geometry

	SIZE	S	M	L	XL
A	Reach	430	460	490	520
B	Stack	612	620	634	651
C	Top Tube	552	585	620	659
D	Seat Tube	370	400	430	490
E	Head Tube	90	100	115	135
F	Fork Length	561	561	561	561
G	Fork Offset	44	44	44	44
H	Chainstay	440	440	440	450
I	Seat Angle	78.7	78.5	78.3	77.9
J	Head Tube Angle	65.4	65.4	65.4	65.4
K	BB Drop	37	37	37	37
L	BB Height	338	338	338	338
M	Wheelbase	1180	1214	1250	1299
	Stem Length	40	50	50	50
	Crank Length	165	170	170	170
