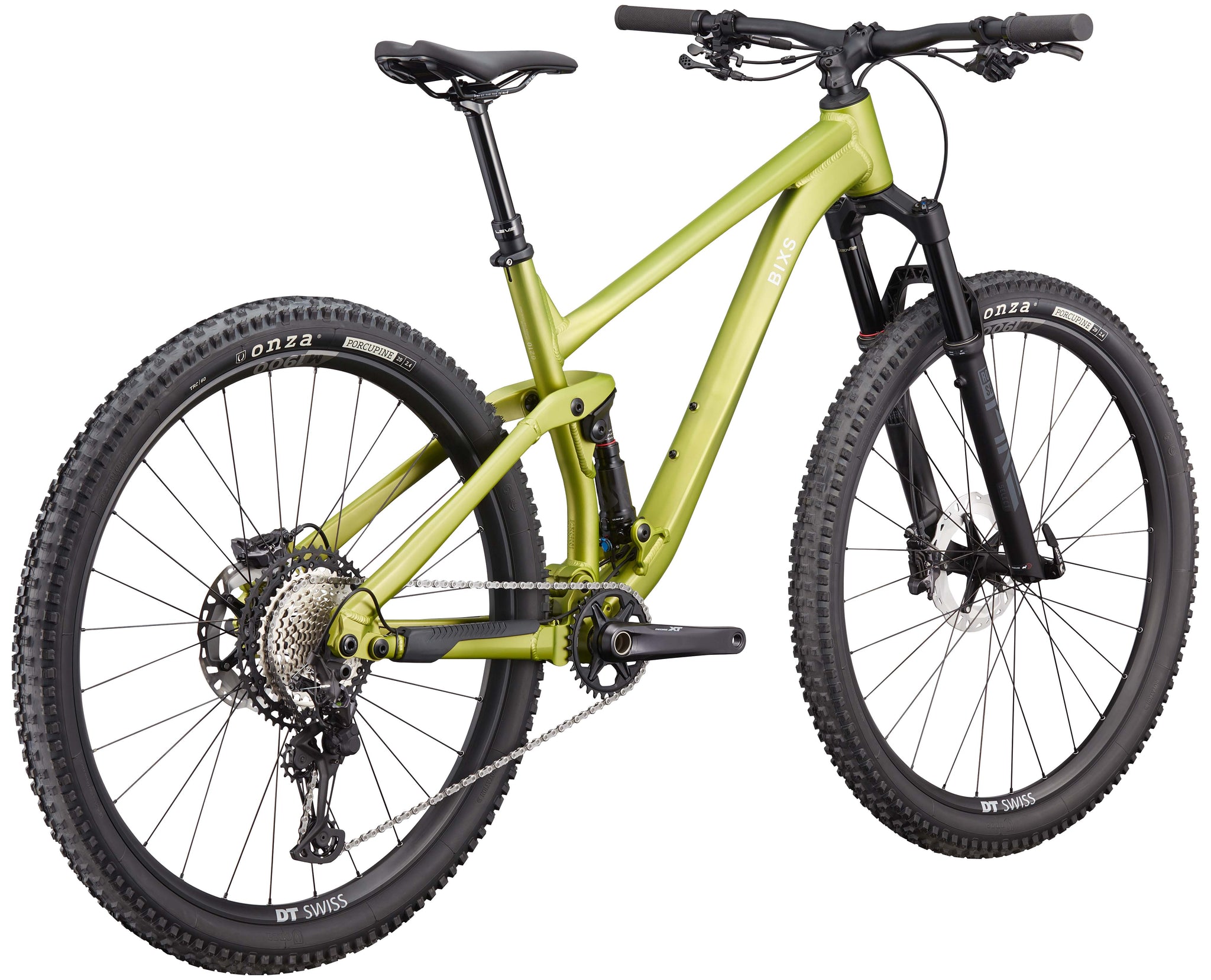

Sign 320

Endurance Flow combines riding fun with efficiency. Thanks to its modern geometry, this modern mountain bike is easy to use, uncomplicated and as reliable as a Swiss army knife. The SIGN is our most versatile bike, because it conceptually combines everything that a sporty trail bike can achieve through the use of the most modern components - it flows like water.

CHF 3,990.00

Unit price: per

Turquoise

Which size fits me?

Frame sizes
149 – 163 cm: S
159 – 178 cm cm: M
174 - 188 cm: L
185 - 200 cm: XL

Where to test and buy?

Tax included. Shipping calculated at checkout.

Sign

Flow like water.

Learn more about the Sign +

Specifications Sign 320

Frame	TRAIL GEOMETRY, ALLOY 6061, 120mm TRAVEL, DROPOUT FOR 148x12mm BOOST, 29"
Fork	ROCK SHOX PIKE SELECT CHARGER, 15x110mm AXLE, TAPERED, 130mm TRAVEL, REBOUND, COMPRESSION
Shock	ROCK SHOX SID LUXE SELECT, 2 POS REMOTE, 165x45, TRUNNION MOUNT, HARDWARE: 22.2x8mm
Rear derailleur	SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED
Shift lever	SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV
Crankset	SHIMANO XT FC-M8100-1, HOLLOWTECH II, 32 TEETH
Bottom bracket	SHIMANO BB-MT501
Cassette	SHIMANO CS-M8100, 10-51 THEETH, 12-SPEED
Chain	SHIMANO CN-M8100 12-Speed
Brakes	SHIMANO XT BR-M8120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:180mm, R:180mm ROTORS, ICE TECH
Brake lever	SHIMANO XT BL-M8100, ISPEC EV
Rims	DT SWISS WHEELSET SPLINE XM-1700, 28 HOLES, 30MM INNER WIDTH 29"
Front hub	DT SWISS WHEELSET SPLINE XM-1700, 28 HOLES, 15x110mmTHRU AXLE
Rear hub	DT SWISS WHEELSET SPLINE XM-1700, 28 HOLES, 12x148mm BOOST, THRU AXLE
Front tire	ONZA PORCUPINE, KEVLAR FOLDABLE, TUEBELESS READY, 29x2.40"
Rear tire	ONZA PORCUPINE, KEVLAR FOLDABLE, TUEBELESS READY, 29x2.40"
Stem	FSA NS ICR STEM, 10° ANGLE, 31.8mm CLAMP
Handlebar	RACE FACE TURBINE, 760mm, 0.5" RSIER WIDE, 31.8mm
Headset	FSA NO.55R 1.5" / ICR / STD
Seat post	KIND SHOCK LEV SI, S: 100mm, M & L: 125mm, XL: 150mm TRAVEL, SHIMANO REMOTE LEVER, 31.6mm
Saddle	BIXS VL-1A47
Weight	14.7 KG

Geometry

Size	A	B	C	D	E	F	G	H	I	J	K	L
S	390	573	100	435	74	67	1122	60	605	400	--	170
M	420	596	110	435	74	67	1154	60	614	420	--	175
L	460	617	115	435	74	67	1167	60	619	440	--	175
XL	500	645	125	435	74	67	1195	60	628	465	--	175

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
