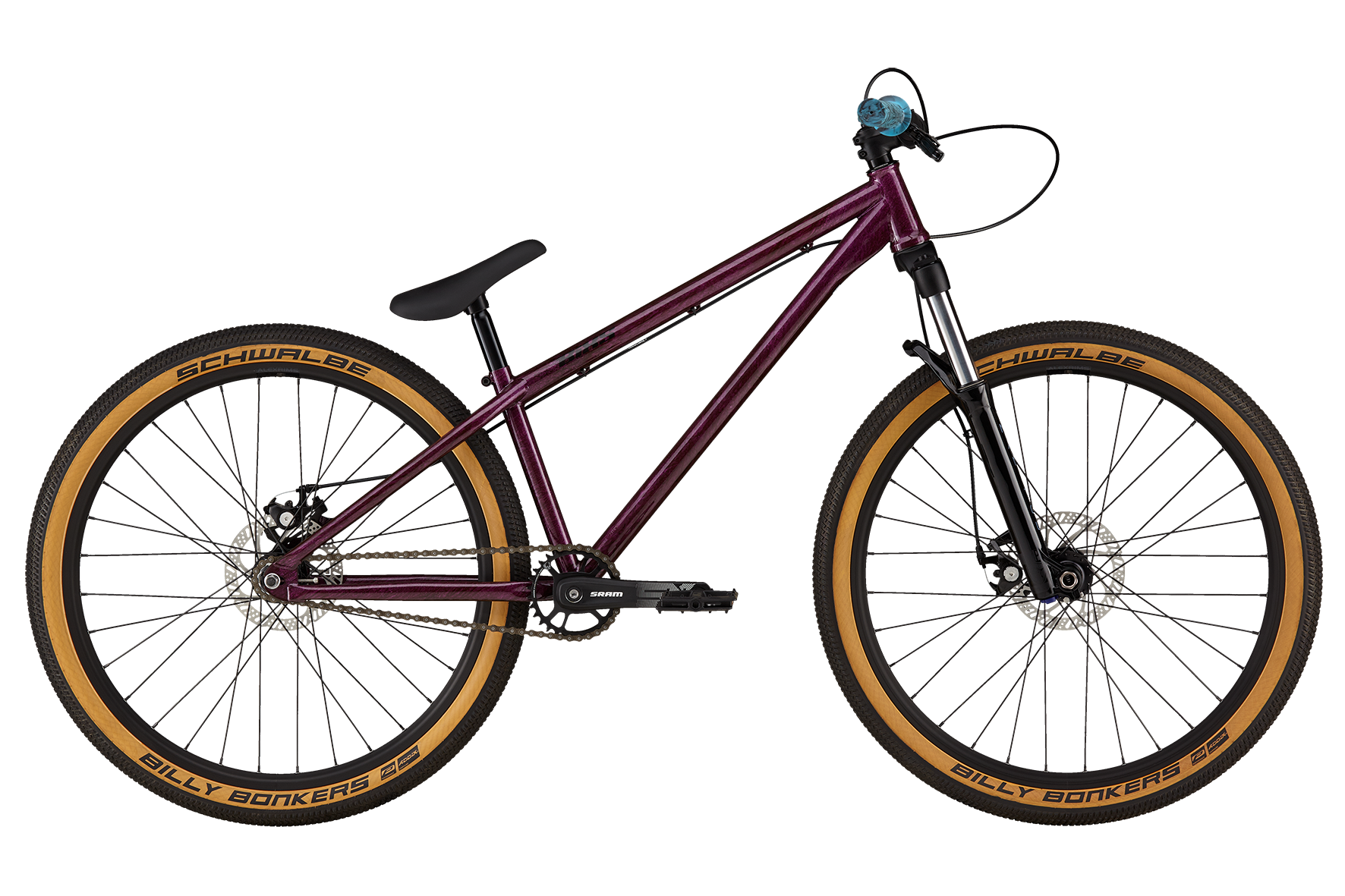

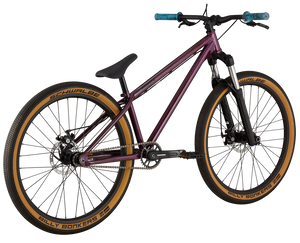

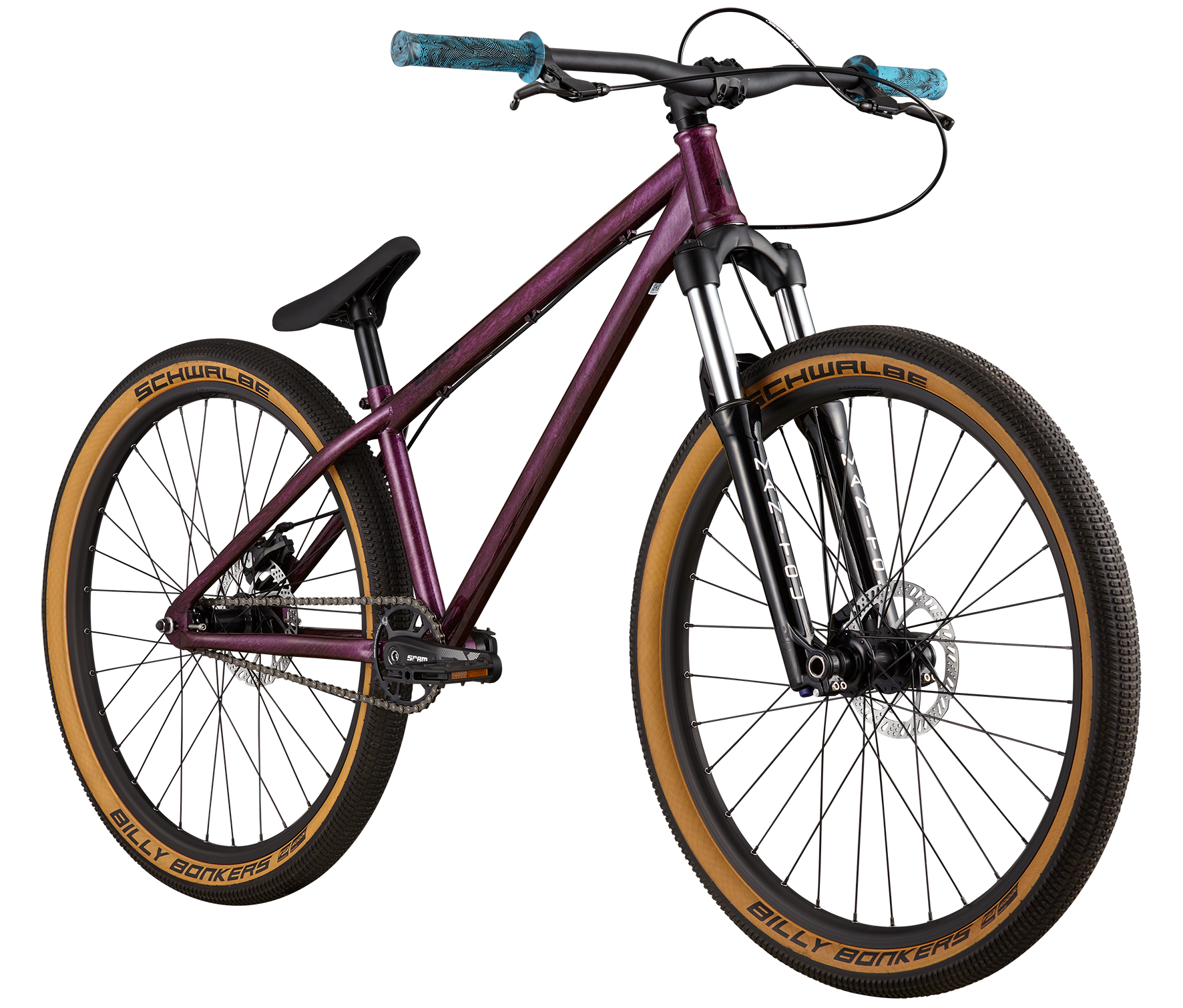

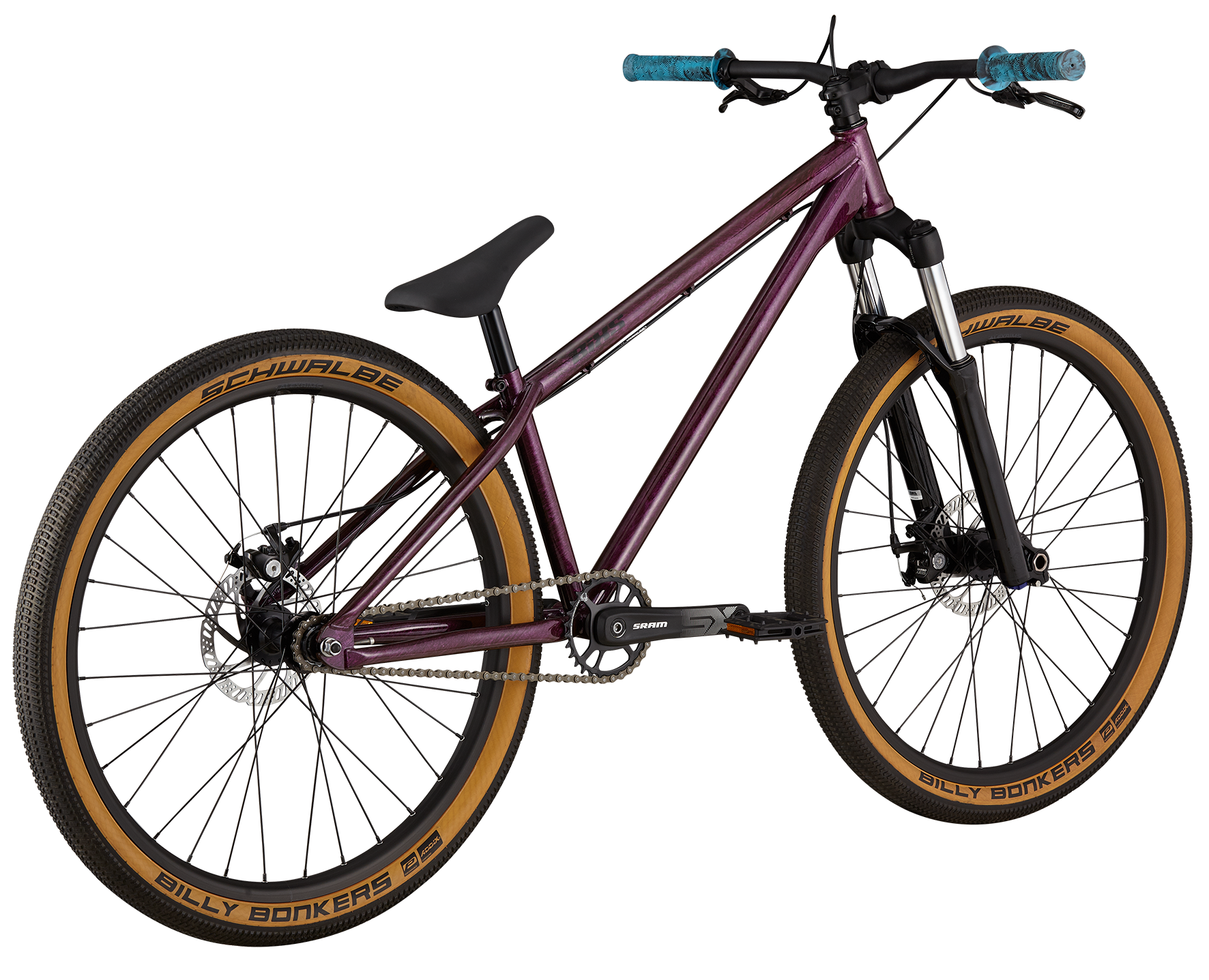

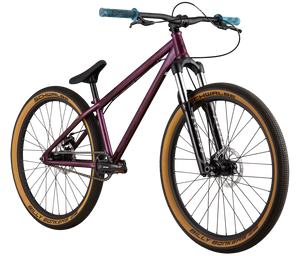

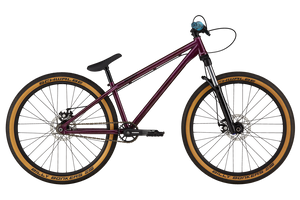

Specifications Stomp 2

Frame PUMPTRACK GEOMETRY, SINGLE SPEED STEELFRAME, 26"
Fork MANITOU CIRCUS COMP 26", 20x110mm AXLE, TAPERED, 100mm TRAVEL
Crankset SRAM SX EAGLE, POWER SPLINE, 30 TEETH
Pedal VP 538
Bottom bracket SRAM POWER SPLINE 118/68
Cassette FORMULA SINGLE SPROCKT, 13 THEETH
Chain KMC Z1 SINGLE SPEED
Brakes TEKTRO MD-M300 MECHANICAL DISC BRAKE , 160mm ROTORS
Brake lever TEKTRO ML520 RS
Rims ALEXRIMS SUPRA BH, 32 HOLES, INNER WIDTH 25mm, 26"
Front hub FORMULA DC-52, 32 HOLES, 20x110mm BOOST THRU AXLE
Rear hub FORMULA DC-52, 32 HOLES, 10x135mm AXLE WITH FLANGE NUTS
Front tire SCHWALBE BILLY BONKERS PERFORMANCE, 26x2.10"
Rear tire SCHWALBE BILLY BONKERS PERFORMANCE, 26x2.10"
Stem BIXS S-105, 0°ANGLE, 31.8mm CLAMP
Handlebar BIXS RIZER BAR, 780mm, 9°ANGLE, 25mm RISE, 31.8mm
Headset FSA NO.42/47 ACB, 1-1/8" UPPER AND 1.5" LOWER BEARING
Seat post BIXS VL-7122, 200mm, 27.2mm
Saddle BIXS VL-7122
Frame size 26"
Weight 12.9 KG

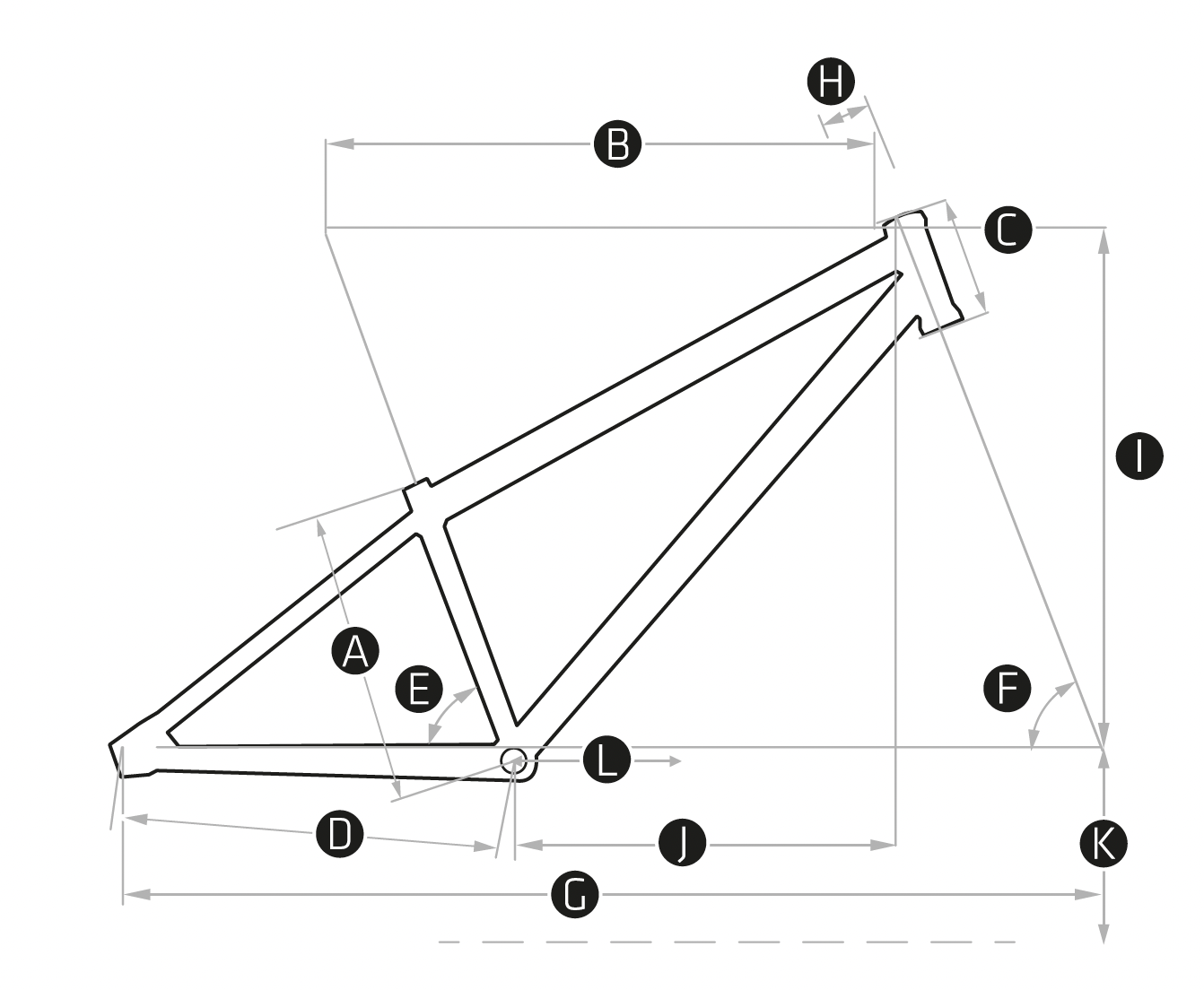

Geometry

Size A B C D E F G H I J K L
26" 310 601 110 390 71 69 1045 50 557 410 - 165

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
G Wheel base (mm)
E Seat tube angle
F Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
