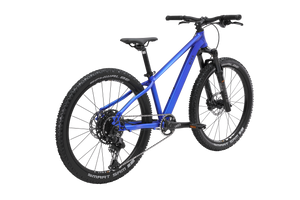

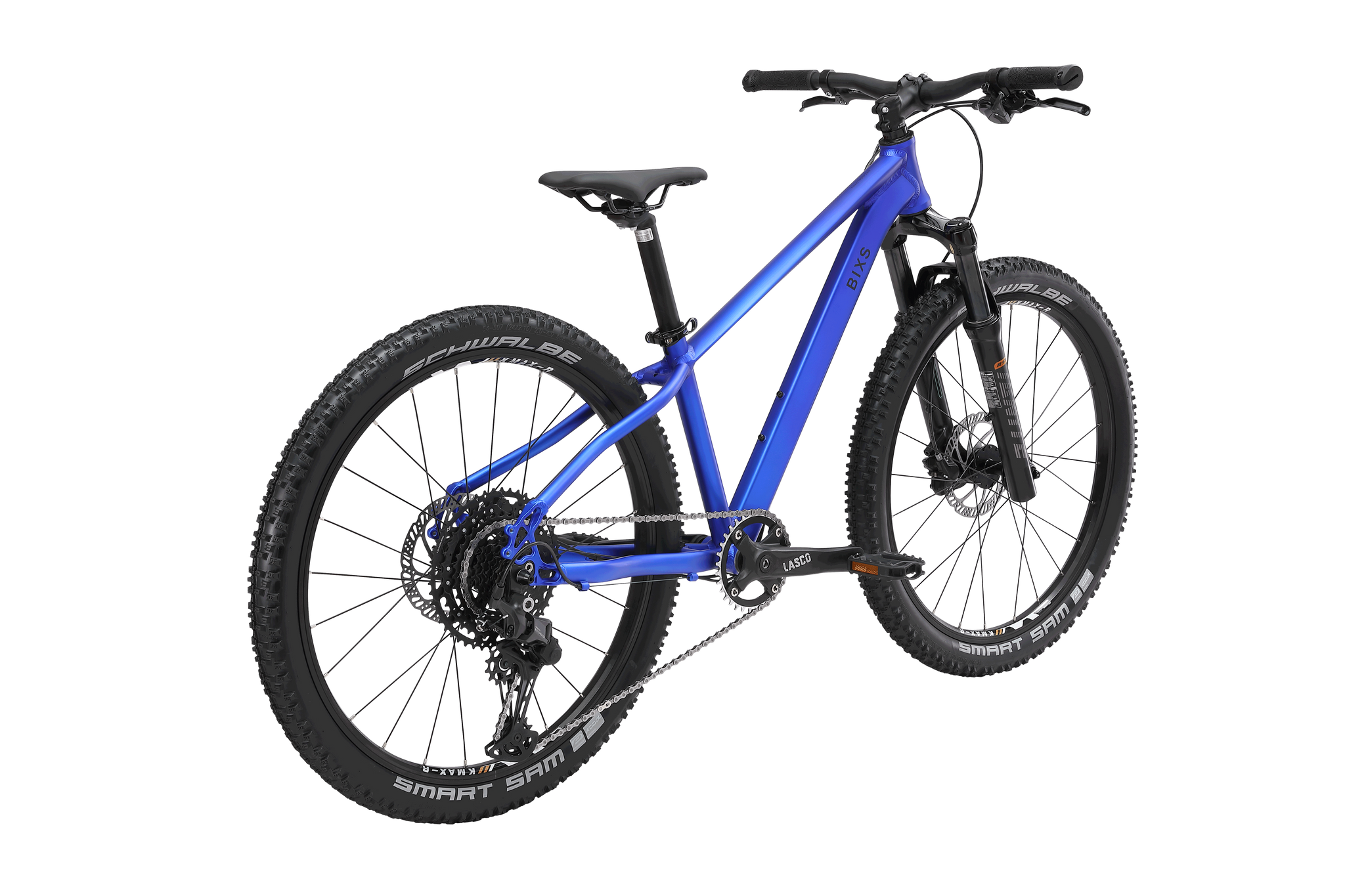

Traction 240

Little daredevils don't settle for half measures and always go all in. Whether playing in the forest, on the first tours with mom or dad or on the way to the kindergarten or school, high-quality brakes and robust tires, a stable frame and different gears are a must!

CHF 859.00

Unit price: per

Sparkle Sweet Turquoise

Which size fits me?

Frame size:
Onesize (24" / 130 cm+)

Where to test and buy?

Tax included. Shipping calculated at checkout.

Traction

Where kids lead the way.

Learn more about the Traction +

Specifications Traction 240

Frame	KIDS GEOMETRY, ALLOY 6061, HARDTAIL 24"
Fork	SUNTOUR XCR LO AIR 24", 80mm TRAVEL, REBOUND, LOCKOUT
Rear derailleur	SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED
Shift lever	SHIMANO DEORE SL-M4100, WITH OPTICAL GEAR DISPLAY
Crankset	LASCO ALLOY CRANK, 32 TEETH
Pedal	VP 898
Bottom bracket	VP BC-73
Cassette	SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED
Chain	KMC, 10-SPEED
Brakes	SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:160mm, R:160mm ROTORS
Brake lever	SHIMANO BL-MT201
Front hub	KT XS5R, 24 HOLES, QR
Front tire	SCHWALBE SMART SAM K-GUARD, 24x2.35"
Rear tire	SCHWALBE SMART SAM K-GUARD, 24x2.35"
Stem	BIXS TDS-D507B, 7°ANGLE, 31.8mm CLAMP
Handlebar	BIXS RIZER BAR, 580mm, 20mm RISE, 31.8mm
Headset	VP A68
Seat post	BIXS SP-209, 250mm, 27.2mm
Saddle	BIXS VL-5130
Frame size	24"
Weight	11.2 KG
Frame size	24"
Weight	11.5 KG

Geometry

Size

A

B

C

D

E

F

G

H

I

J

K

L

24"

322

495

100

400

72°

70°

943

60

--

165

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
E Seat tube angle
F Head tube angle
G Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
