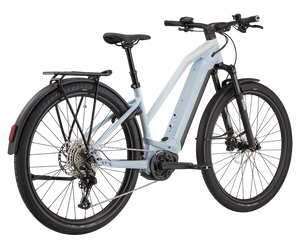

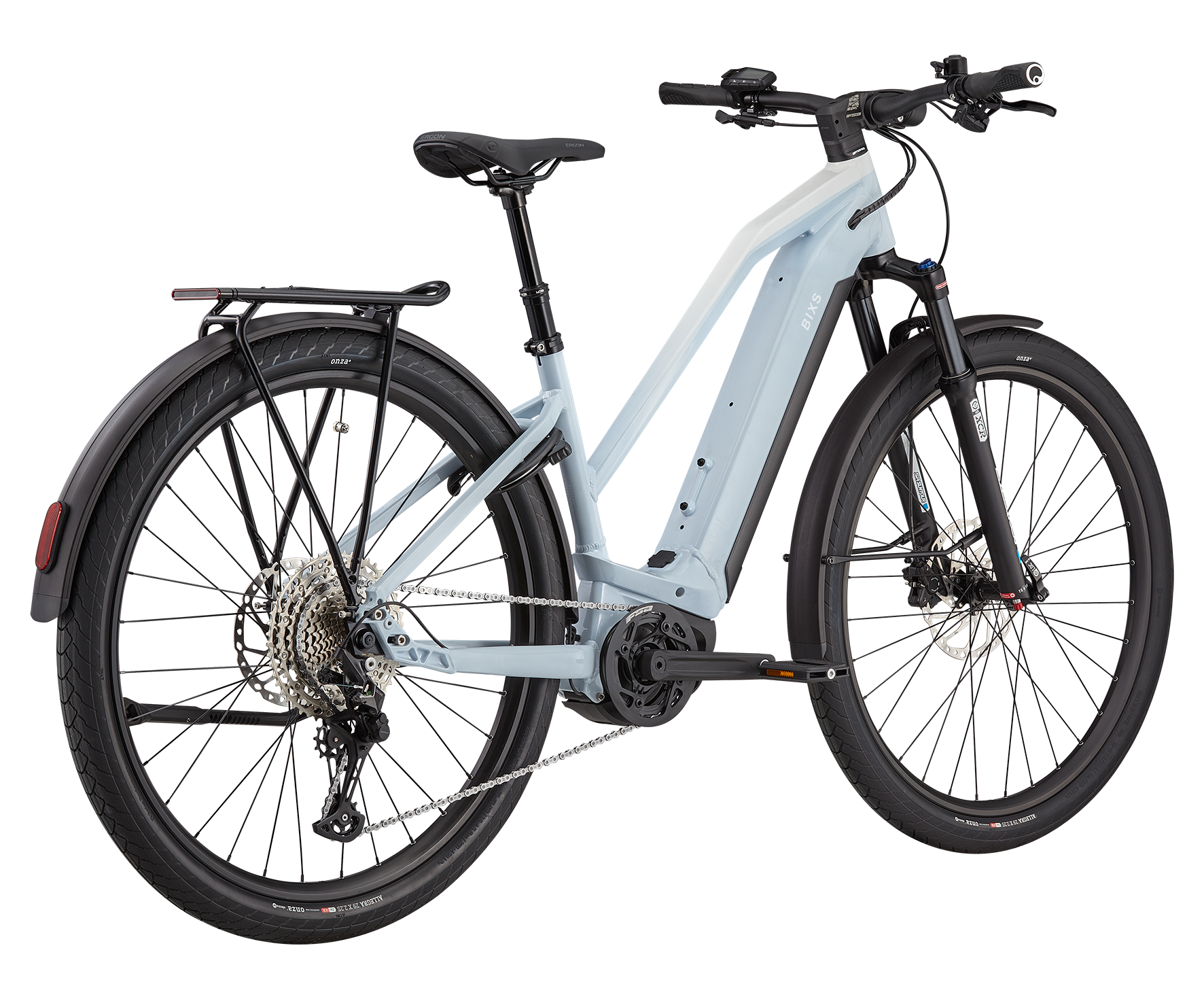

Spécifications Access-E10 Gor

Cadre E-ACTIVE GEOMETRY SUV, ALLOY 6061 HYDROFORMED D.B. TUBES, Hardtail, DROPOUT 148x12mm BOOST, 29"
Fourche SUNTOUR XCR34 AIR 29", LOR, 15x110mm AXLE, TAPERED, 100mm TRAVEL, REBOUND LOCKOUT
Moteur YAMAHA PW-X 2 SERIES, 250 WATT
Batterie SIMPLO, 36V, 630Wh
Display YAMAHA Display A
Mode d'assistance ECO+, ECO, STANDARD, HIGH, EXTRA POWER, AUTOMATIC
Vitesse max. 25 km/h
Dérailleur arr. SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED
Levier de vitesse SHIMANO DEORE SL-M6100, CLAMP  TYPE
Pédalier FSA CK-320/ISIS, 34 TEETH
Pédale VP 831, INLEAD GRIP TREAD
Cassette SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED
Chaîne SHIMANO CN-M6100 12-SPEED
Freins SHIMANO BR-MT410, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:200mm, R:180mm ROTORS
Levier de freins SHIMANO BL-MT401
Jantes ALEXRIMS EM-30, 32 HOLES, INNER WIDTH 30mm, 29"
Moyeu avant SHIMANO HB-TC500-15-B, 32 HOLES, 15x110mm BOOST THRU AXLE
Moyeu arrière SHIMANO FH-TC500-MS-B, 32 HOLES, 12x148mm BOOST THRU AXLE
Pneu avant ONZA ALLEGRA, 29x2.25"
Pneu arrière ONZA ALLEGRA, 29x2.25"
Potence FSA CABLE INTEGRATION STEM, NS ICR, 31.8mm CLAMP
Guidon BIXS HB-RB12L RIZER BAR, 700mm, 9°ANGLE, 15mm RISE, 31.8mm
Jeu de direction FSA NO.55R 1.5" / ICR / STD
Tige de selle KIND SHOCK RAGEi, S & M: 100mm, L: 125mm TRAVEL, SOUTHPAW-ALLOY REMOTE LEVER, 31.6mm
Selle ERGON SFC30
Phare SUPERNOVA M99 MINI PURE-25, 450 LUMEN, 150 LUX
Feu arrière SUPERNOVA BIXS CUSTOM LED, INTEGRATED IN CARRIER
Porte-bagages RACKTIME BIXS CUSTOM WITH INTEGRATED SUPERNOVA REAR LIGHT
Garde-boue WINGEE, BiXS CUSTOM,  62mm, 29", ALLOY
Poids 27.3 KG

Géométrie

TailleABCDEFGHIJKL
S38059813048073°68°116845650399310170
M43061013548073°68°118145655410310170
L48062114048073°68°119245659419310170

A Taille de cadre mm
B Long. tube horizontal mm
C Long. tube de dir. mm
D Long. bases arrières mm
E Angle tube de selle
F Angle tube de direction
G Base mm
H Potence mm
I Stack mm
J Reach mm
K Hauteur de pedalier mm
L Longueur des manivelles mm
