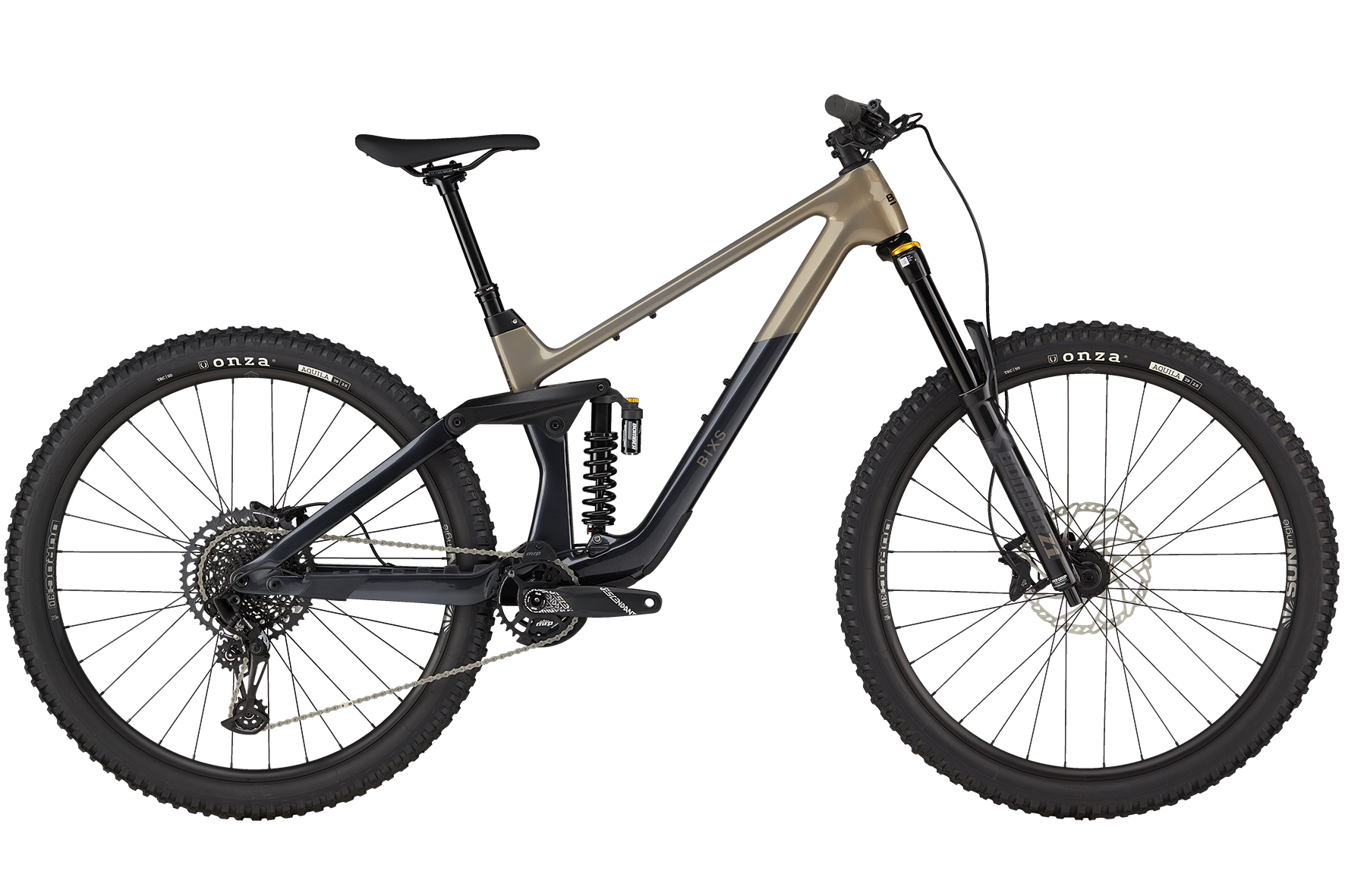

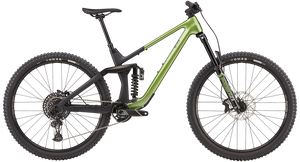

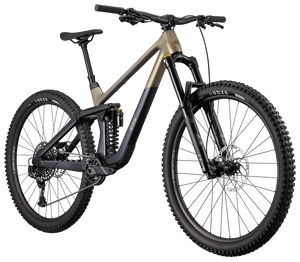

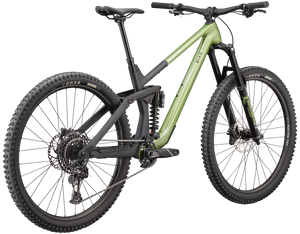

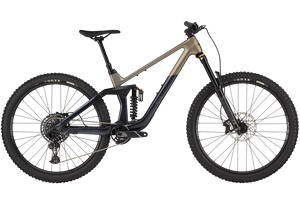

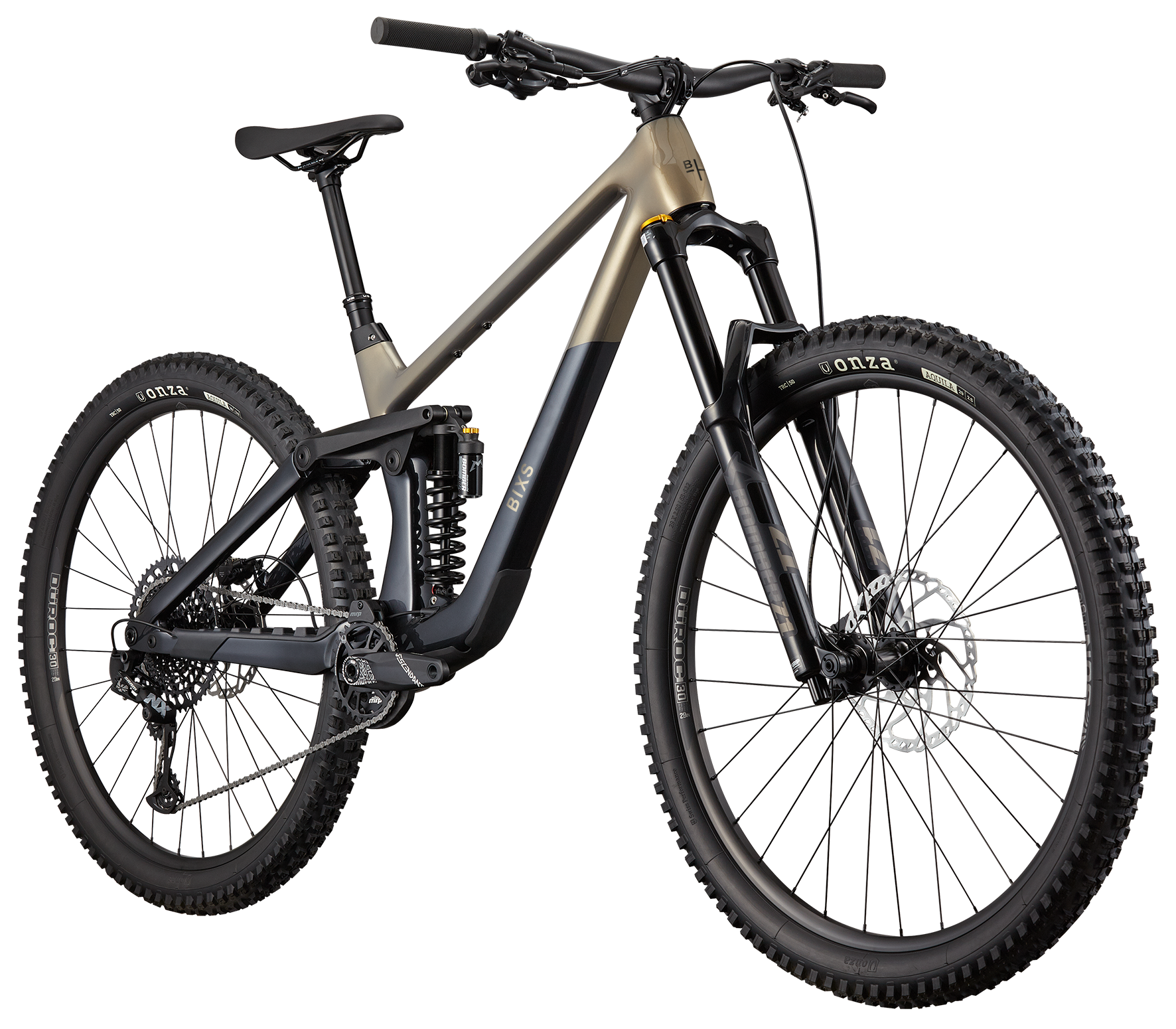

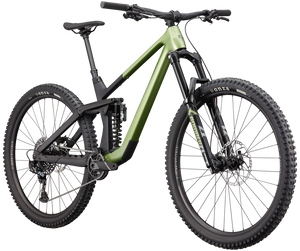

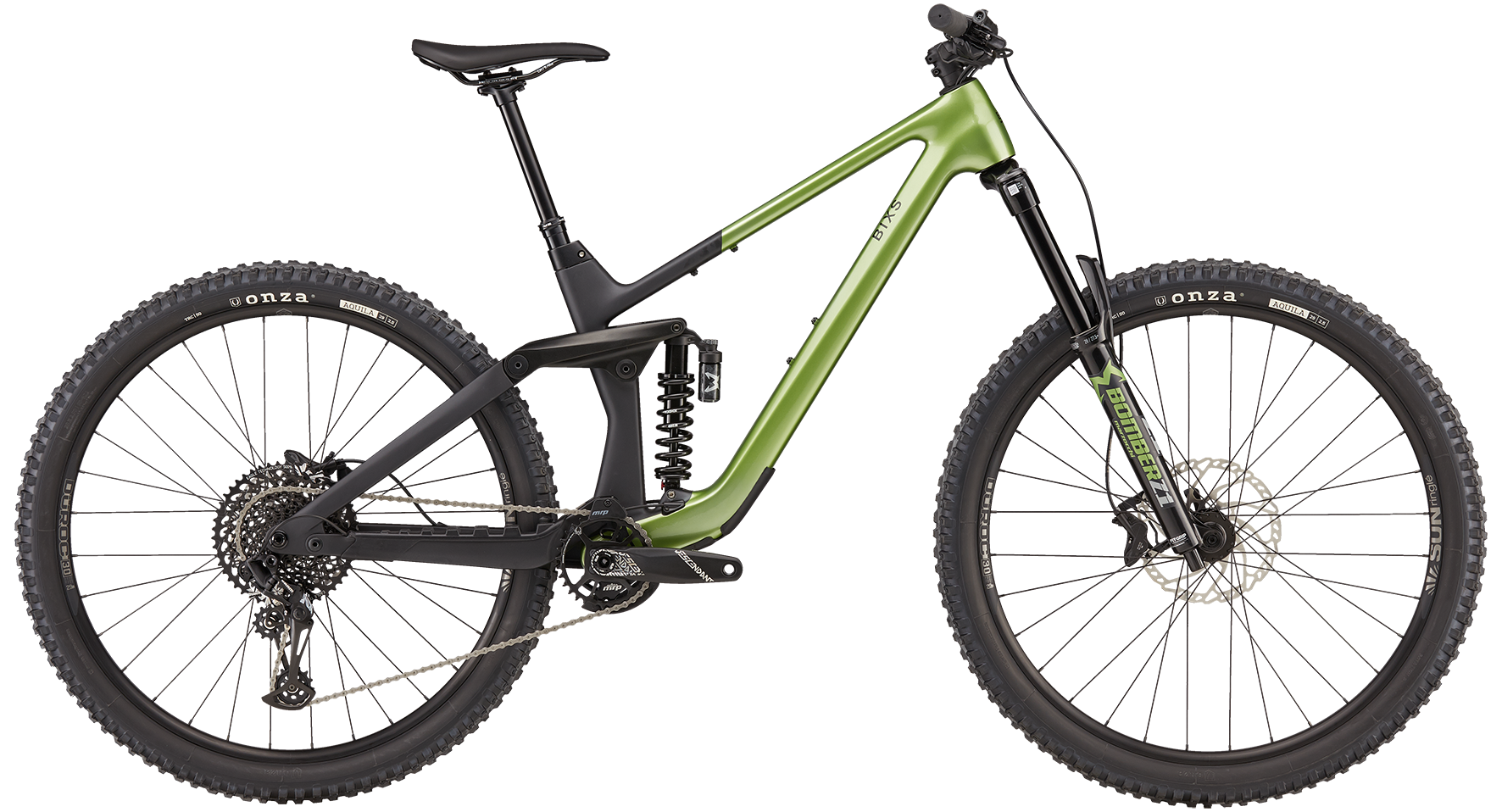

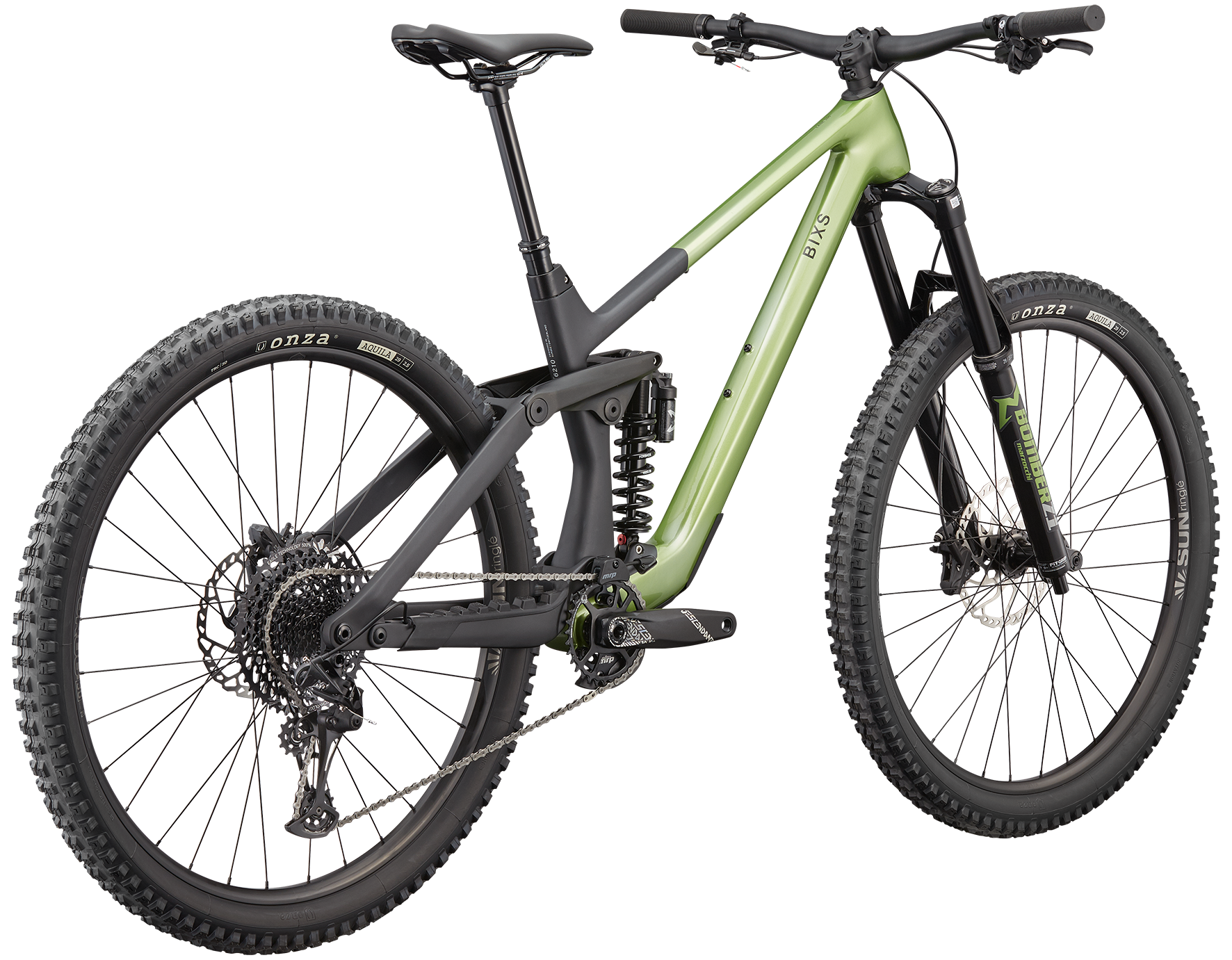

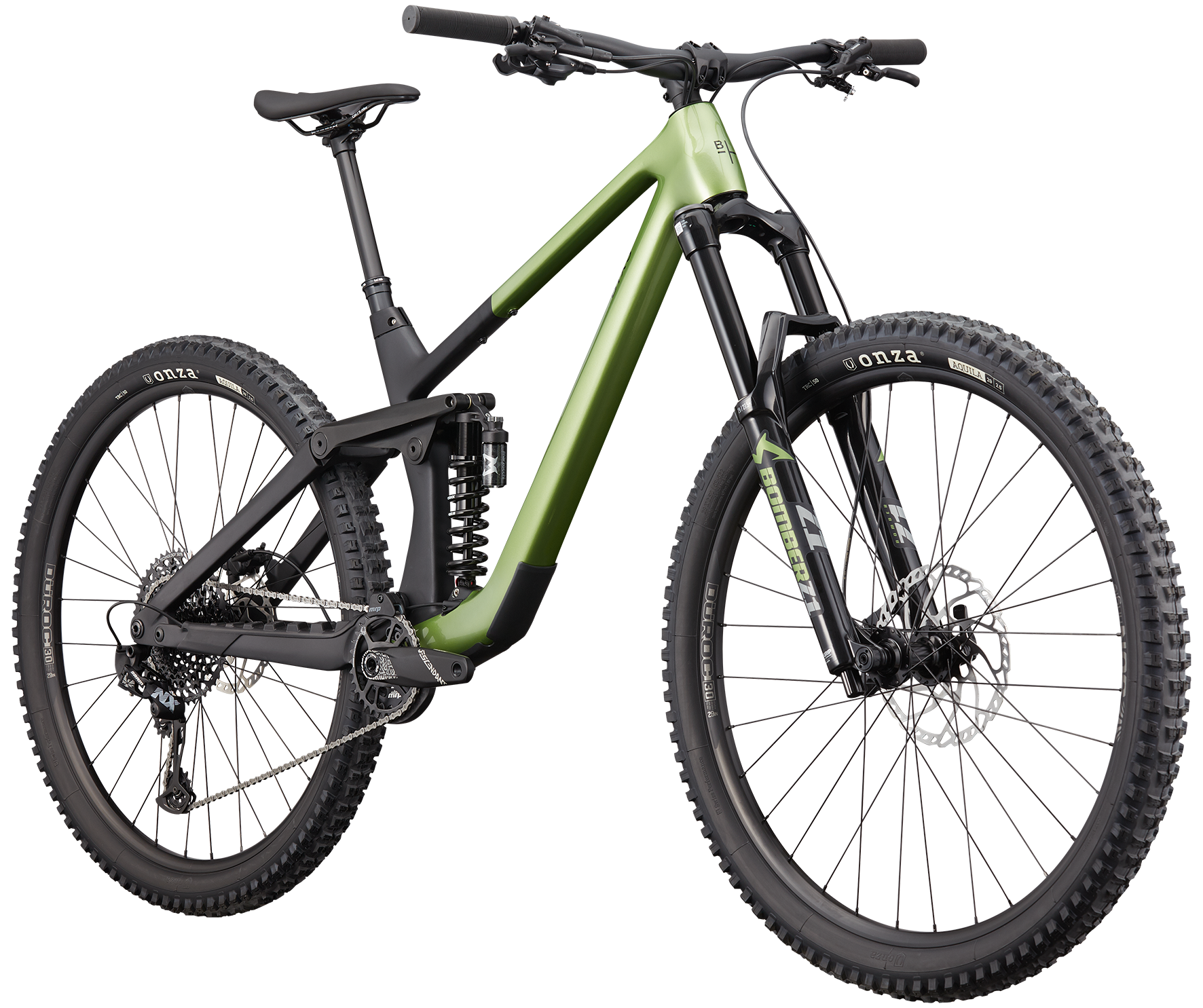

Spécifications Lane 260

Cadre ENDURO GEOMETRY, FULL CARBON FRAME, 160mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Fourche MARZOCCHI Z1 WITH DIFFRENT COILSETTING/SIZE, 15x110mm AXLE, TAPERED, GRIP, TRAVEL: 170mm, SWEEP-ADJ.
Amortisseur MARZOCCHI BOMBER CR, ADJUSTABLE LOW SPEED COMPRESSIO & REBOUND, 230x65, HARDWARE: 30/20mmx8mm
Dérailleur SRAM NX EAGLE, 12-SPEED
Levier de vitesse SRAM SL NX EAGLE SINGLE CLICK TRIGGER 12-SPEED
Pédalier SRAM DESCENDANT EAGLE BOOST, DUB, S: 30 THEETH, OTHERS 32 TEETH
Roulement de pédalier SRAM BB DUB BSA 73 MTB
Cassette SRAM XG-1275 EAGLE, 10-52 TEETH, 12-SPEED
Chaîne SRAM CN-NX EAGLE 12-SPEED
Freins SHIMANO DEORE BR-M6120/BR-M6100, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:203mm, R:180mm ROTORS
Levier de freins SHIMANO BL-M6100
Jantes SUNRINGLE WHEELSET DUROC 30 COMP, TLR, 28 HOLES, INNER WIDTH 26mm, 29"
Moyeu avant SUNRINGLE WHEELSET DUROC 30 COMP, 28 HOLES, 15x110mm THRU AXLE
Moyeu arrière SUNRINGLE WHEELSET DOROC COMP, 28 HOLES, 12x148mm BOOST, THRU AXLE
Pneu avant ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Pneu arrière ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Potence BIXS 0°ANGLE, 35mm CLAMP
Guidon BIXS RIZER BAR, 780mm, 9° BACKSWEEP, 15mm RISE, 35mm
Jeu de direction ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Tige de selle KIND SHOCK RAGEi, S: 100mm, M: 125mm, L: 150mm, XL: 170mm TRAVEL, SHIMANO REMOTE, 31.6mm
Selle BiXS VL-1831
Poids 16.4 KG

Géométrie

TailleABCDEFGHIJKL
S3705549044076.564.5118735619420344165
M40058710044076.564.5122035628450344170
L43062211544076.564.5125735642480344170
XL49066013545076.564.5130650660510344170

A Taille de cadre mm
B Long. tube horizontal mm
C Long. tube de dir. mm
D Long. bases arrières mm
E Angle tube de selle
F Angle tube de direction
G Base mm
H Potence mm
I Stack mm
J Reach mm
K Hauteur de pedalier mm
L Longueur des manivelles mm
