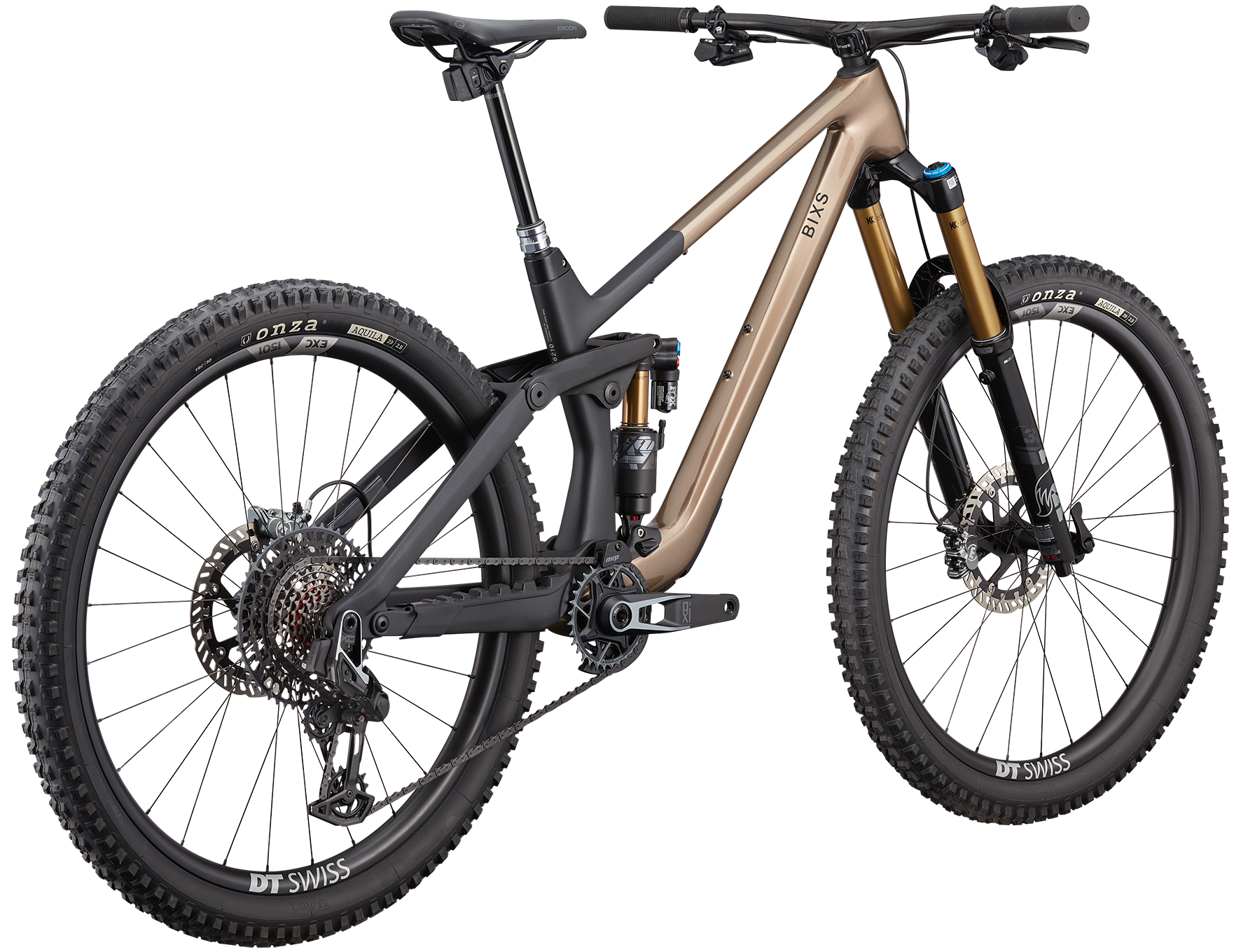

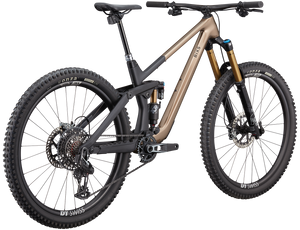

Spécifications Lane X

Cadre ENDURO GEOMETRY, FULL CARBON FRAME, 160mm TRAVEL, DROPOUT 148x12mm BOOST, 29"
Fourche FOX 38 FLOAT FACTORY, KASHIMA, 15x110mm AXLE, TAPERED, GRIP2, TRAVEL: 170mm, 4-WAY ADJUSTABILITY
Amortisseur FOX FLOAT X2 PERFORMANCE, 2 POSITION LEVER, 230x65, HARDWARE: 30/20mmx8mm
Dérailleur SRAM X01 EAGLE AXS, 12-SPEED
Levier de vitesse SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED
Pédalier SRAM X01 EAGLE BOOST, DUB, S: 30, OTHERS 32 TEETH
Roulement de pédalier SRAM BB DUB BSA 73 MTB
Cassette SRAM XG-1295 EAGLE, 10-52 TEETH, 12-SPEED BLACK
Chaîne SRAM CN-XO1 EAGLE 12-SPEED
Freins MAGURA MT7, 4-PISTON HYDRAULIC DISC BRAKE, F:203mm, R:203mm ROTORS
Levier de freins MAGURA MT7, 1-FINGER HC ALUMINIUM LEVER BLADE
Jantes DT SWISS WHEELSET SPLINE CARBON EXC-1501, 28 HOLES,  INNER WIDTH 30mm, 29"
Moyeu avant DT SWISS WHEELSET SPLINE CARBON EXC-1501, 15x110 BOOST, THRU AXLE
Moyeu arrière DT SWISS WHEELSET SPLINE CARBON EXC-1501, 12x148 BOOST, THRU AXLE
Pneu avant ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Pneu arrière ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.4"
Potence FASERWERK FULL CARBON COCKPIT
Guidon FASERWERK FULL CARBON COCKPIT, 800mm, 9° ANGLE, 15mm RISE
Jeu de direction ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK
Tige de selle ROCK SHOX REVERB AXS, S: 100mm, M: 125mm, L: 150mm, XL: 170mm TRAVEL, WIRELESS REMOTE, 31.6mm
Selle ERGON SM10 ENDURO
Poids 15.2 KG

Géométrie

TailleABCDEFGHIJKL
S3705549044076.564.5118735619420344165
M40058710044076.564.5122035628450344170
L43062211544076.564.5125735642480344170
XL49066013545076.564.5130650660510344170

A Taille de cadre mm
B Long. tube horizontal mm
C Long. tube de dir. mm
D Long. bases arrières mm
E Angle tube de selle
F Angle tube de direction
G Base mm
H Potence mm
I Stack mm
J Reach mm
K Hauteur de pedalier mm
L Longueur des manivelles mm
