Specifications Campus 3 Wiege

Frame TOURING CONCEPT, ALLOY 6061, WIEGE 700C
Fork SUNTOUR SF16-NEX DS, TAPERED, COIL SPRING , 63MM
Rear derailleur SHIMANO ACERA RD-M3020 SGS SHADOW DESIGN
Front derailleur SHIMANO TOURNEY FD-TY710-TS3, TOP SWING, 34,9mm CLAMP
Shift lever SHIMANO SL-M315, WITH OPTICAL GEAR DISPLAY
Crankset SHIMANO FC-TY501, 48-38-28T
Pedal WELLGO LU-C097
Bottom bracket SHIMANO BB-UN300-K, 68mm x 122.5mm
Cassette SHIMANO CS-HG31, 11-34 TEETH, 8-SPEED
Chain SHIMANO CN-HG71 8-SPEED
Brakes SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:160mm, R:160mm ROTORS
Brake lever SHIMANO BL-MT201
Rims ALEXRIMS MD-19, 32 HOLES, INNER WIDTH 19mm, 700C
Front hub SHIMANO DH-3D37 HUB DYNAMO, 6V, 3W, 32 HOLES
Rear hub SHIMANO FH-QC400-HM, 32 HOLES
Front tire SCHWALBE DELTA CRUISER PLUS, PUNCTURE GUARD, 700x47C
Rear tire SCHWALBE DELTA CRUISER PLUS, PUNCTURE GUARD, 700x47C
Stem BIXS AS-4002, ANGLE ADJUSTABLE, 31.8mm CLAMP
Handlebar BIXS HB-TR2 TREKKING BAR, 640mm, 25° ANGLE, 31.8mm
Headset FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER
Seat post BIXS SP-3D2, 350mm, 31.6mm
Saddle BIXS VL-3534
Headlight TRELOCK LS-383 LED, 50 LUX, STANDLIGHT AUTOMATIC
Rear light INTEGRATED IN CARRIER, STANDLIGHT AUTOMATIC
Dynamo SHIMANO DH-3D37 HUB DYNAMO, 6V, 3.0W, 32 HOLES
Luggage carrier RACKTIME BIXS CUSTOM WITH INTEGRATED REAR LIGHT
Mudguards YUNG FANG EX-CP55-AB, 55mm WIDE, 700C
Weight 16.9 KG

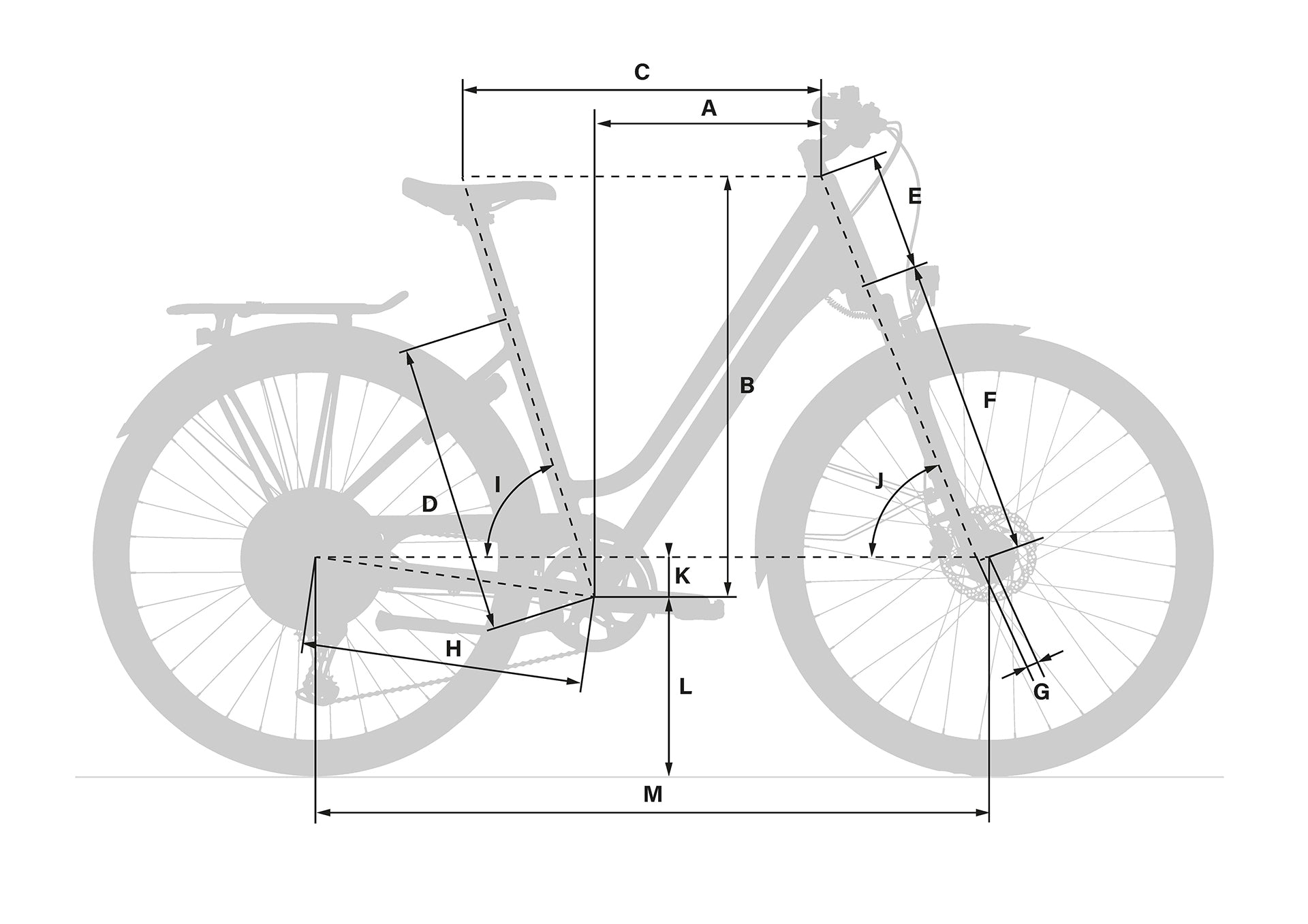

Geometry

Size A B C D E F G H I J K L
S 440 555 180 460 73° 70° 1068 90 669 350 300 170
M 480 570 180 460 73° 70° 1083 90 669 365 300 170
L 520 590 180 460 73° 70° 1103 100 669 385 300 170

A Frame size
B Top tube horizontal (mm)
C Head tube (mm)
D Chainstay length (mm)
G Wheel base (mm)
E Seat tube angle
F Wheel base (mm)
H Stem (mm)
I Stack (mm)
J Reach (mm)
K Bottom bracket height (mm)
L Crank length (mm)
